Removing Rear Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

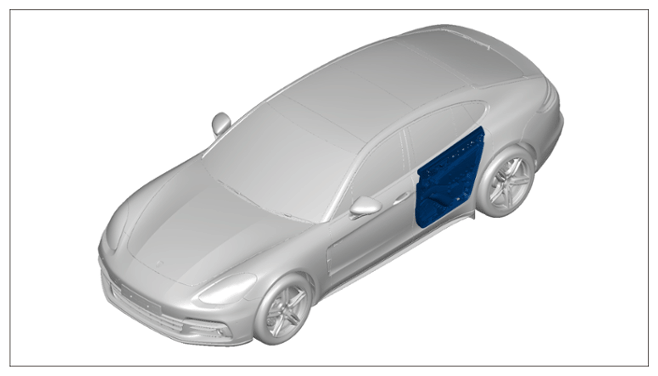

Installation position of rear door panel

1. Unclip loudspeaker trim -1-  using a plastic wedge and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

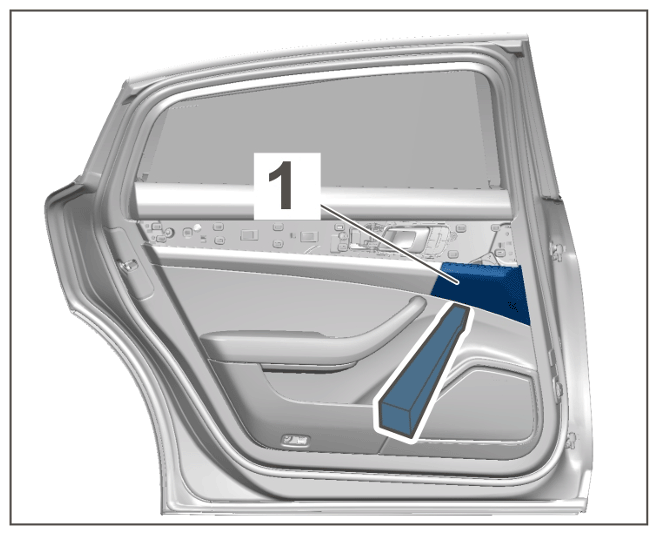

   Unclipping loudspeaker trim

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

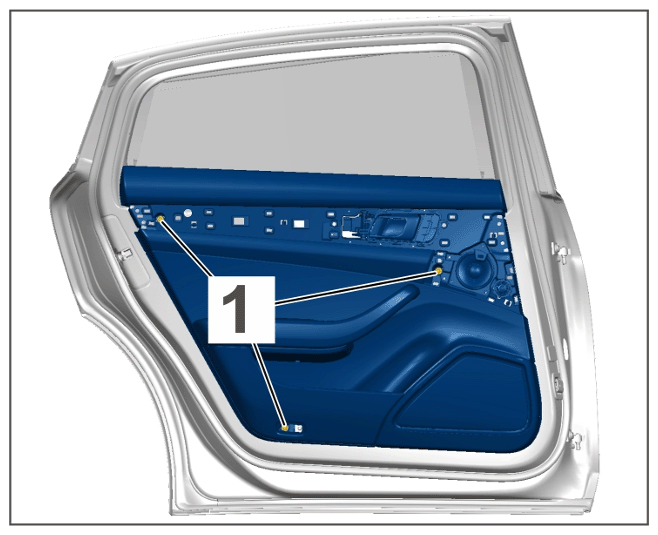

   Fastening screws

3. Loosen rear door panel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

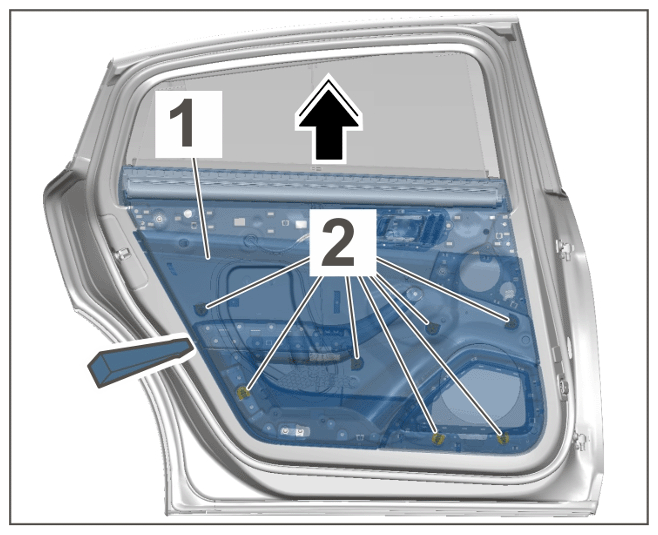

   Loosening rear door panel

   1. 3.1 Unclip fixing clips -1-  for rear door panel using a plastic wedge.
   2. 3.2 Lift off rear door panel -1-  . -arrow-
4. Disengage cable for door opener.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

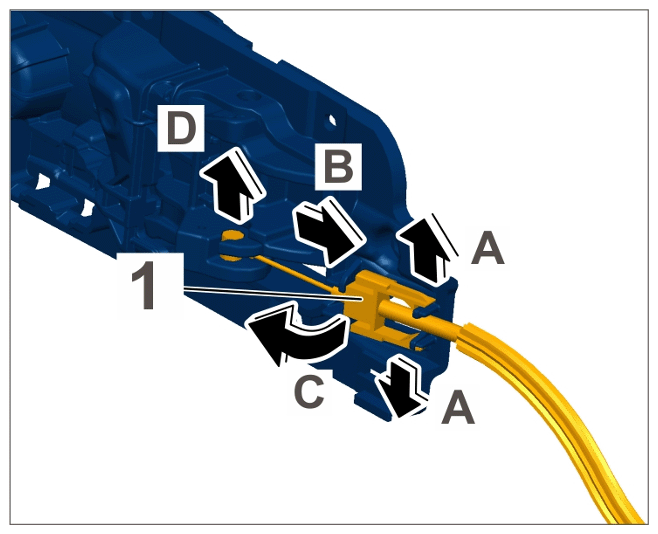

   Disengaging cable for door opener

   1. 4.1 Spread locking lugs outwards. -arrow A-
   2. 4.2 Guide cable for door opener -1-  to the rear and out of the guide. -arrow B-
   3. 4.3 Swivel cable for door opener -1-  in direction of arrow until the driver at the front is free. -arrow C-
   4. 4.4 Remove cable for door opener. -arrow D-
5. Release and disconnect electric plug connections.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

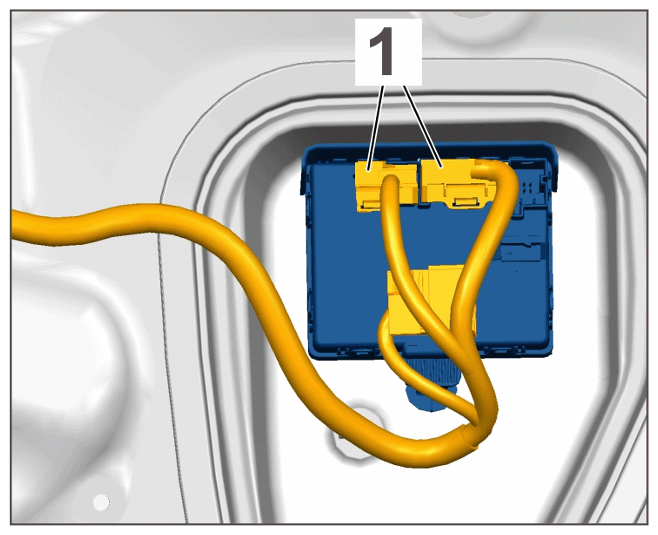

   Electric plug connections

6. Remove rear door panel.
