Removing Cover Under Dashboard

WARNING: This page is about a different variant/trim than selected.
  1. Remove cover -1-  under dashboard.

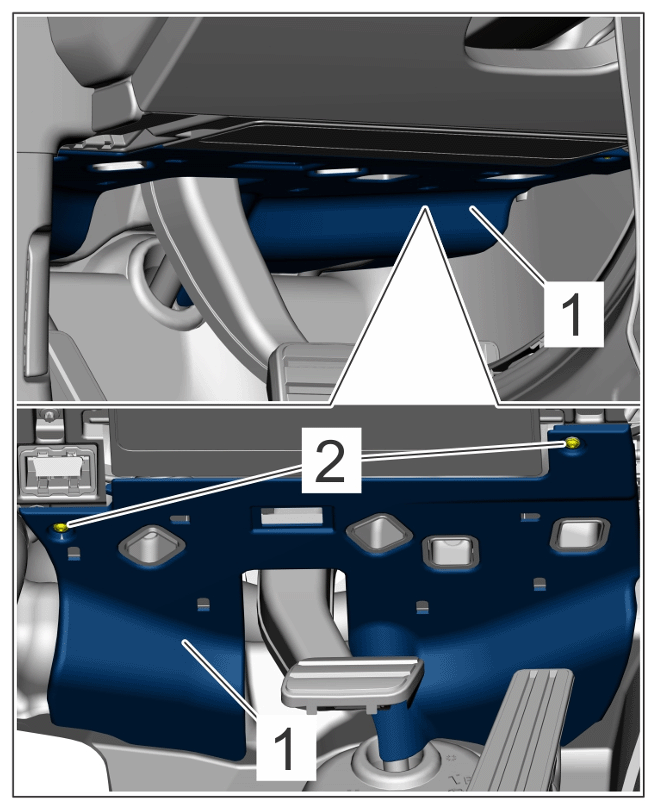

    G15874300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover under dashboard

    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Unclip cover -1-  under dashboard.
