Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Fastening screw for electric motor |
Always replace fastening screws; item 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 |
Tightening torque |
20 Nm (15 ftlb.)< + 45° |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

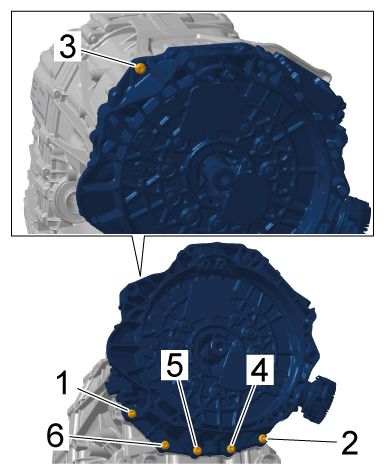

Screw-in sequence on engine side |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

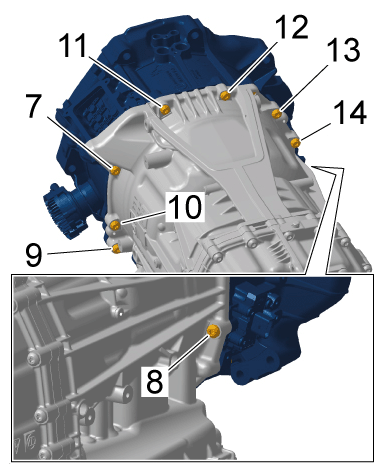

Screw-in sequence on transmission side |
