Preliminary Work
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.
→ Observe general warning notices for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Risk of squashing
→ Wear personal protective gear.
→ Get someone to help if necessary.
- Risk of damage to components
→ Carefully remove and install component.
Information
- Get one or more people to help when installing/removing heavy or difficult-to-reach components.
- This will prevent or reduce the risk of possible damage.
- Observe warning notes.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE VEHICLE ELECTRICAL SYSTEM
- Isolate the high-voltage system from the power supply and complete the relevant documentation.
> 2X00IN Isolating high-voltage electrical system from power supply/Starting high-voltage electrical system
- Drain ATF.
- Remove double clutch transmission from the engine.
> 373427 REMOVING AND MOUNTING DOUBLE CLUTCH TRANSMISSION (V6 HYBRID)
Information
To prevent damage to the Porsche Doppelkupplung (PDK), avoid localized pressure.
- Set double clutch transmission down on a level surface.
- > VAS 6095A - Engine and Gearbox Support must be ready for use.
- > 9932 - Gear support must be secured to the > VAS 6095A - Engine and Gearbox Support .
- Secure double clutch transmission to > 9932 - gear support
.
- 8.1 > VAS 6095A - Engine and Gearbox Support must be aligned with > 9932 - gear support over the double clutch transmission by adjusting the height of the assembly trolley.

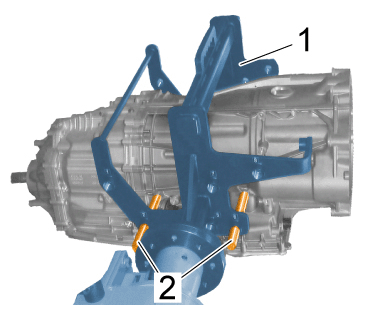

- 8.2 Secure fastening pins -2- through > 9932 - gear support -1- in the transmission at the left and right.

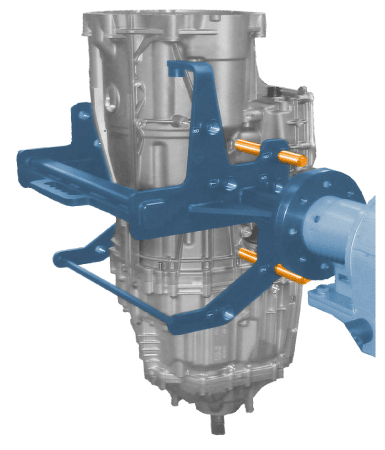

Left fastening pins

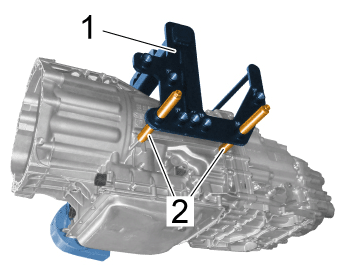

Right fastening pins
- Place double clutch transmission straight on the > VAS 6095A - Engine and Gearbox Support
.
Double clutch transmission on engine and gearbox bracket
