Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screws securing Ebox to HV battery | Item 2 | Tightening torque | 8 Nm (6 ftlb.) | ||
|

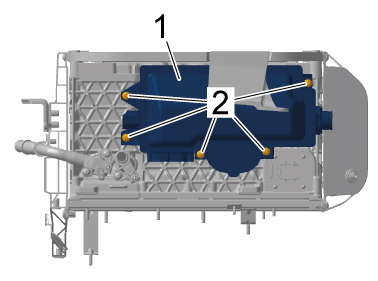

Fastening screws on E-box |
|||||
| Fastening screw securing outer retaining frame to high-voltage battery | M8 X 60 | Tightening torque | 28 Nm (21 ftlb.) | +/- 2 Nm (1.5 ftlb.) | |
| Fastening screw securing inner retaining frame to high-voltage battery | M8 X 30 | Tightening torque | 20 Nm (15 ftlb.) | ||
| Fastening screw securing inner retaining frame to high-voltage battery | M8 X 18 | Tightening torque | 20 Nm (15 ftlb.) | ||
| Fastening screw securing load distributor plate to lower retaining frame | M6 X 18 | Tightening torque | 8 Nm (6 ftlb.) | ||
| Fastening screw securing pressure accumulator to lower retaining frame | M6 X 18 | Tightening torque | 8 Nm (6 ftlb.) | ||
