Technical Values: Overview
WARNING: This page is about a different variant/trim than selected.
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

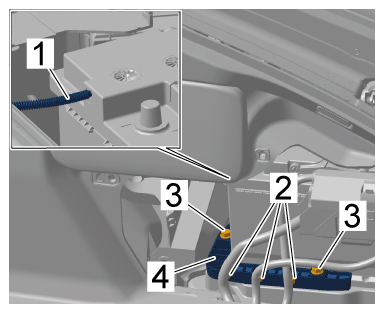

| Fastening screws securing retaining bar to battery rail |
-3- |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Vent hose |

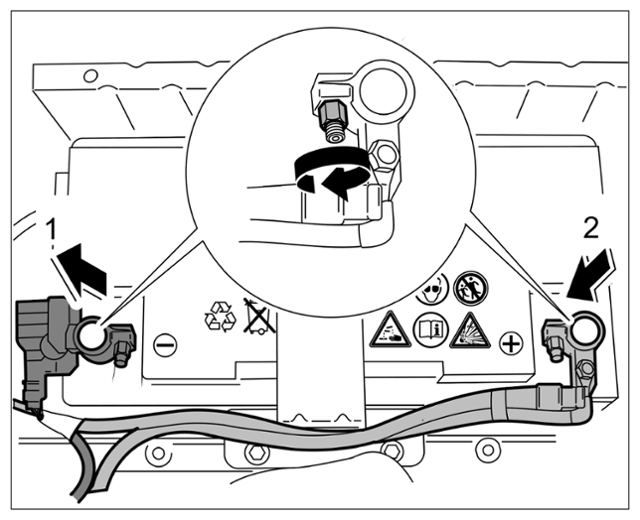

| Terminal clamp to battery |
-1-, -2- |
Tightening torque |
6 Nm (4.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Attaching terminal clamps |
