Component Overview And Handling Of 48 V Vehicle Electrical System
Information
Identification
The components and cables are marked in accordance with current standards.
- There is no need to use additional identification stickers (as used on hybrid vehicles) for the vehicle in the workshop.
- Hybrid vehicles with or without PDCC are identified by the existing green and red stickers.
- There is no need to disconnect contacts when working on adjacent systems.
Documentation
- Individual HV components and standalone HV systems without a HV energy store are not documented during the test log.
- If work is interrupted, the condition of disconnected contacts must be checked before starting the tasks again (e.g. disconnected and masked cables).
Qualification
- Employees with in-depth electrical training and system knowledge.
- Prerequisite in the Porsche dealer organization: Qualification to the level of HVT and system qualification (e.g. by completing training/WBT) for the 48 V vehicle electrical system.
Disposal
- The 48 V additional battery is not exempt from the legal requirements relating to the disposal of solid and liquid waste materials.
- As an undamaged unit, it is not specifically listed as hazardous waste.
- The 48 V additional battery contains materials that can damage the environment if not disposed of correctly.
- The main material here is the electrolyte, which contains acetonitrile and tetraethylammonium tetrafluoroborate.
- These materials must be disposed of by waste disposal companies that specialise in industrial waste and do not release components of ultra-capacitors into the environment or dispose of waste in rubbish dumps.
- National laws and regulations and local laws and regulations must be met.
Transport
- The energy value is approx. 6.75 Wh, i.e. the 48 V additional battery is not subject to any other regulations of the ADR, IMDG code and IATA-DGR, which means that no special packaging is required.
- If the 48 V additional battery has to be transported, always use the original packaging.

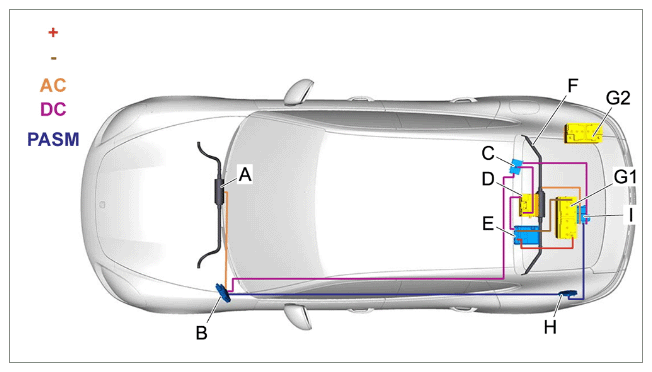

48-volt component overview
- Front anti-roll bar.
- Front PDCC control unit.
- 48-volt power distributor.
> WM, 978919 REMOVING AND INSTALLING 48-VOLT POWER DISTRIBUTOR
- 48-volt additional battery.
> 270719 REMOVING AND INSTALLING 48-VOLT ADDITIONAL BATTERY
Meets the dynamic power requirements of the PDCC and is adapted specifically to the dynamic power requirements of the PDCC.
- 48-volt voltage converter.
> 270319 REMOVING AND INSTALLING 48-VOLT VOLTAGE CONVERTER
Supplies the permanent power supply for the 48 V island vehicle electrical system from the 12 V vehicle electrical system with a maximum power output of 1 kW.
- Rear anti-roll bar.
- G1 12 V vehicle electrical system battery.
- G2 12 V vehicle electrical system battery on PHEV vehicles.
- H Rear PDCC control unit.
> 430819 REMOVING AND INSTALLING PDCC CONTROL UNIT
48 V DC Front and rear PDCC wire harness.
> Refer to the appropriate Service information for Replacing PDCC wire harness
