WM, 2X00IN Test Log: Insulation Fault Finding: Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

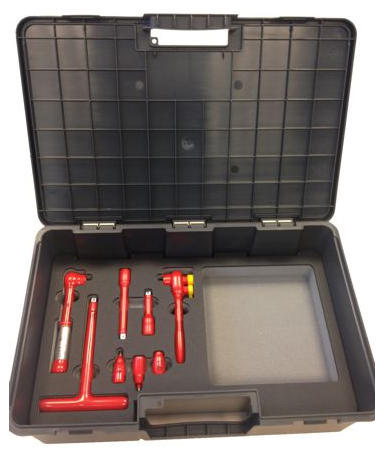

insulated tool set	Vehicle-specific service equipment	> VAS 6883	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

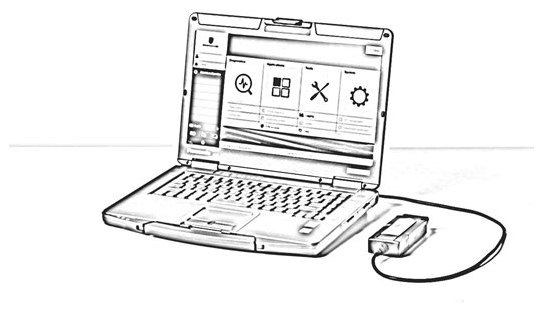

PIWIS Tester 3	Special tool	> 9900	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

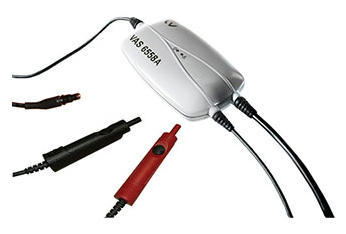

high-voltage testing module	Vehicle-specific service equipment	> VAS 6558A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
high-voltage test adapter	Vehicle-specific service equipment	> VAS 6558/9-6A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
HV test adapter	Vehicle-specific service equipment	> VAS 6558A/30	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
HV test adapter	Vehicle-specific service equipment	> VAS 6558A/38	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
HV test adapter	Vehicle-specific service equipment	> VAS 6558A/40	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
