Pressure Pipe And Intake Manifold

WARNING: This page is about a different variant/trim than selected.

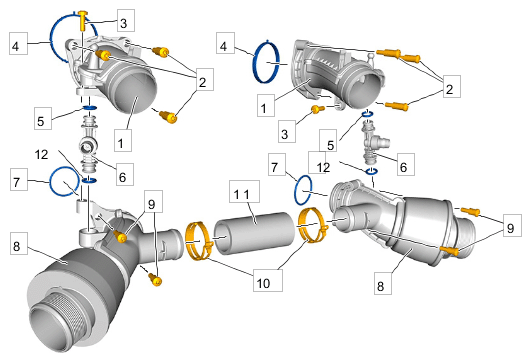

Fig 1: Pressure Pipe And Intake Manifold Components Location With Torque Specification - V8 Biturbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure pipe and intake manifold - V8 biturbo

1	Intake manifold
2	Screw, M6 x 12 > Tightening torque 9 Nm (6.5 ftlb.)
3	Screw, M6 x 20 > Tightening torque 9 Nm (6.5 ftlb.)
4	Seal/Replace if damaged
5	O-ring/replace
6	Venturi tube
7	Seal/replace
8	Pressure pipe
9	Screws, M6 x 23 > Tightening torque 9 Nm (6.5 ftlb.)
10	Screw-type clamp > Tightening torque 3.5 Nm (2.5 ftlb.)
11	Connecting hose
12	O-ring/replace
