Preliminary Work
- Electric shock
- Short circuit
- Fire
- Explosion
→ Only appropriately trained and authorized persons may work on high-voltage vehicles and components.
→ Required qualification: High voltage technician or high voltage expert.
→ Observe national requirements and legislation for this work.
→ Always use insulated tools, such as an > VAS 6883 - insulated tool set when working on these parts.
→ Observe general warning notices for working on the high-voltage system.
> 2X00IN GENERAL WARNING NOTICES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM
- Observe warning notes.
> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE VEHICLE ELECTRICAL SYSTEM
- Isolate the high-voltage system from the power supply and complete the relevant documentation.
> 2X00IN Isolating high-voltage electrical system from power supply/Starting high-voltage electrical system
- Perform function test on test adapter.
> 2X00IN Function test on test adapter

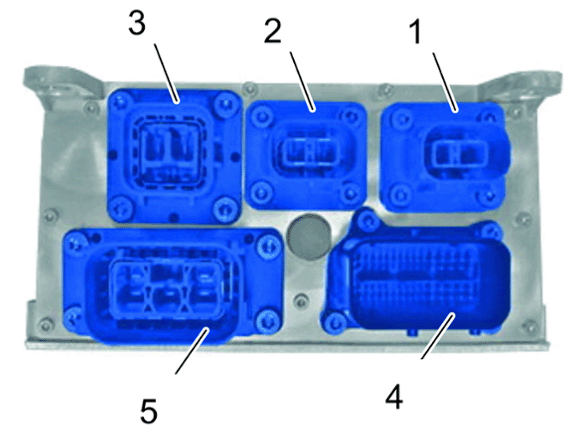

High-voltage charger, 7.2 kW
High-voltage charger (7.2 kW)
| 1 | High-voltage connection for electric passenger compartment heater |
| 2 | High-voltage connection for air-conditioning compressor |
| 3 | High-voltage connection for high-voltage battery (E-box) |
| 4 | 12-volt connection |
| 5 | High-voltage connection for charging socket |

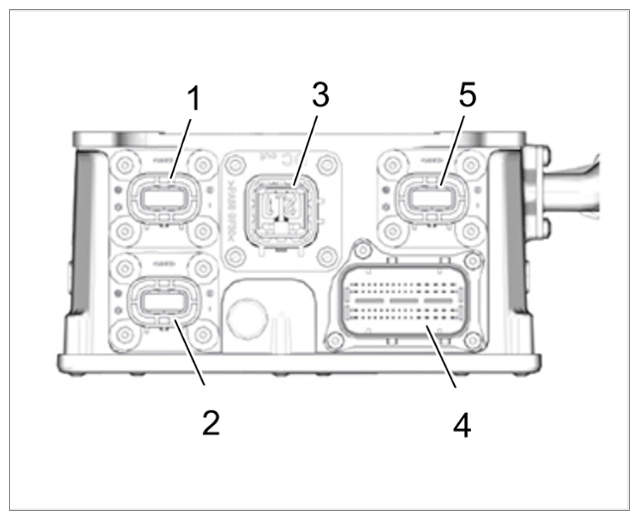

High-voltage charger, 3.6 kW
High-voltage charger (3.6 kW)
| 1 | High-voltage connection for electric passenger compartment heater |
| 2 | High-voltage connection for air-conditioning compressor |
| 3 | High-voltage connection for high-voltage battery (E-box) |
| 4 | 12-volt connection |
| 5 | High-voltage connection for charging socket |
