Installing (Left) Oil Mist Separator

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order.
Replace seals.
Screw in and tighten screws in the specified sequence -2 to 7- > Tightening torque 9 Nm (6.5 ftlb.)

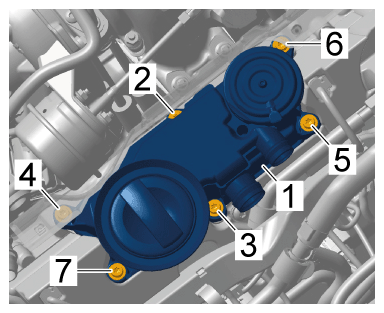

Fig 1: Oil Mist Separator Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing in and tightening screws
