Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Install crankshaft sealing ring.

    > 137419 REMOVING AND INSTALLING CRANKSHAFT SEALING RING

  2. Install vibration damper.

    > 137519 REMOVING AND INSTALLING CRANKSHAFT VIBRATION DAMPER (V8 BITURBO)

  3. Install oil pressure control valve.

    > 172619 Removing and installing oil pressure control valve

  4. Install guide tube for oil dipstick -1-  .
    1. 4.1 Insert guide tube for oil dipstick -1-  into the crankcase cover.
    2. 4.2 Fit and tighten screw -2-  .

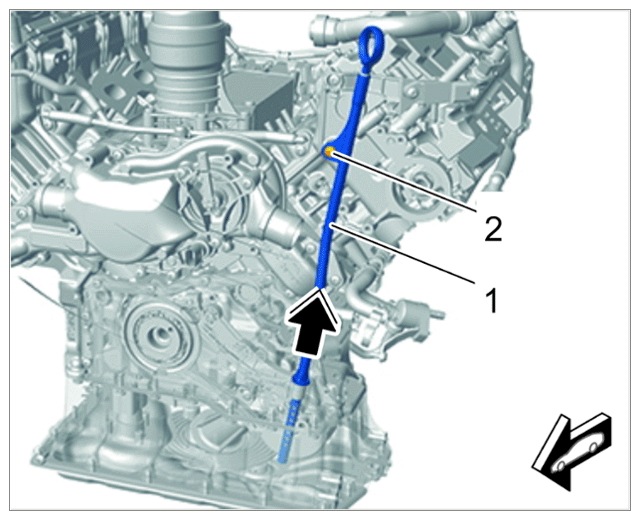

    G15823635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Guide tube for oil dipstick

  5. Install belt tensioner (air-conditioning compressor).

    > 137319 Removing and installing belt tensioner (air-conditioning compressor)

  6. Install the engine.

    > 100119 REMOVING AND INSTALLING ENGINE

  7. Fill in engine oil.

    > 170117 DRAINING AND FILLING IN ENGINE OIL
