Removing Crankcase Cover

WARNING: This page is about a different variant/trim than selected.

Remove crankcase cover.
1. 1.1 Loosen and unscrew screws in the sequence -10 to 1- .
2. 1.2 Press off crankcase cover by screwing in screws.
  1. 1.2.1 Screw in screws at the three screw points -arrows- uniformly by half a turn each.
  2. 1.2.2 The crankcase cover becomes loose.
3. 1.3 Remove crankcase cover.

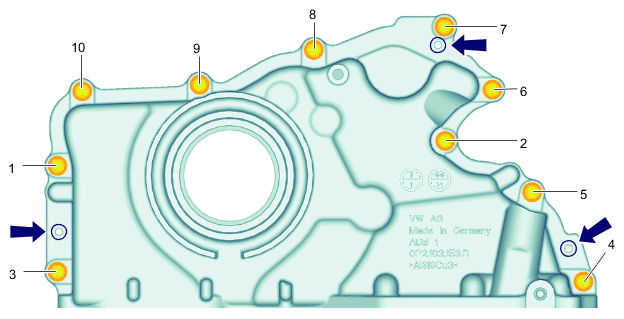

Fig 1: Crankcase Cover Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase cover
