Subsequent Work

> 172019 REMOVING AND INSTALLING OIL PUMP

1. 1.1 Fit and tighten screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pump

> 174619 REMOVING AND INSTALLING OIL GUIDE HOUSING (V8 BITURBO)

1. 2.1 Clean sealing faces thoroughly and apply sealant Loctite 5970-BM.
2. 2.2 Fit oil guide housing uniformly on the crankcase.
3. 2.3 Fit and tighten screws -1 to 21-  uniformly in the specified tightening sequence.

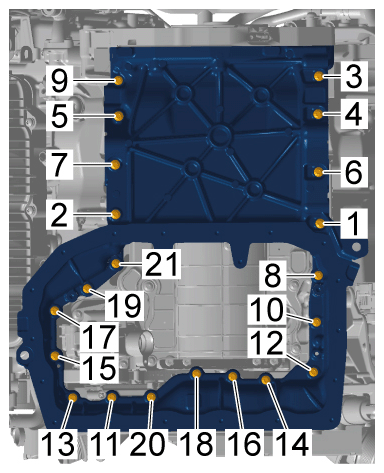

Fig 1: Oil Guide Housing Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil guide housing

> 175019 REMOVING AND INSTALLING OIL PAN (V8 BITURBO)

1. 3.1 Clean sealing faces thoroughly and apply sealant Loctite 5970-BM.
2. 3.2 Fit oil pan uniformly on the oil guide housing.
3. 3.3 Fit and tighten screws -1 to 18-  uniformly in the specified tightening sequence.

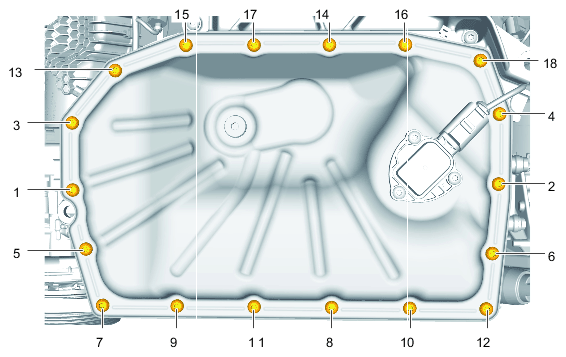

   Fig 2: Oil Pan Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil pan

> 155519 REMOVING AND INSTALLING SOLENOID HYDRAULIC VALVE FOR VALVE LIFT ADJUSTMENT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

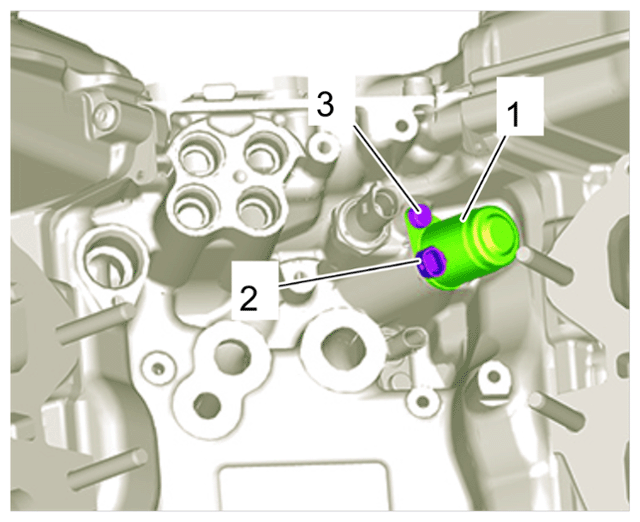

Solenoid hydraulic valve for valve lift adjustment

> 244019 Removing and installing fuel injector

1. 5.1 Use > T10133C - Tool set  if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

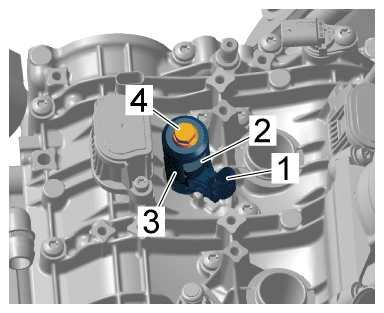

Fuel injector

> 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

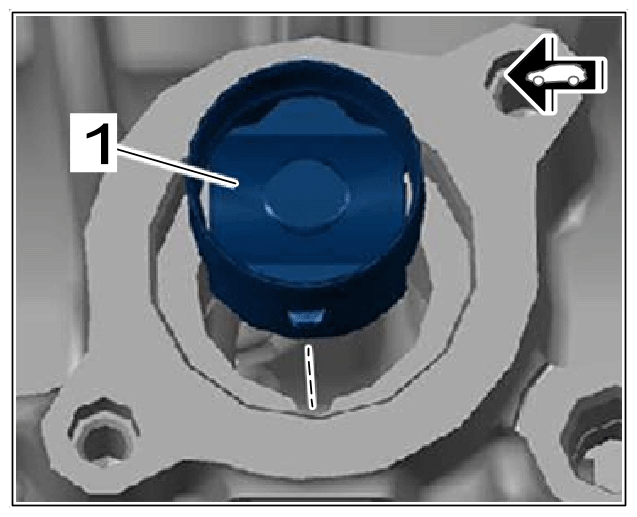

Tappets for high-pressure pump (similar to illustration)

> 249019 REMOVING AND INSTALLING FUEL LINE (LEFT HIGH-PRESSURE PUMP TO RAIL) (V8 BITURBO)

> 249019 REMOVING AND INSTALLING FUEL LINE (RIGHT HIGH-PRESSURE PUMP TO RAIL) (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

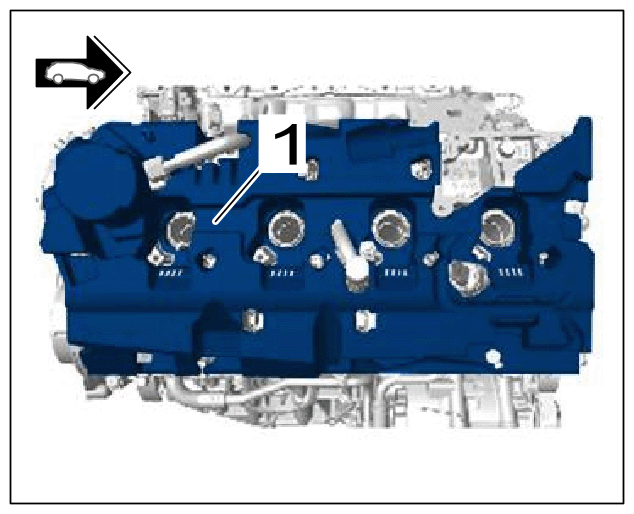

Heat insulation

> 287020 REMOVING AND INSTALLING SPARK PLUGS

> 282020 REMOVING AND INSTALLING IGNITION COILS (V8 BITURBO)

> 287219 Removing and installing knock sensor

1. 12.1 Move PCV line into installation position and fit and tighten screws -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

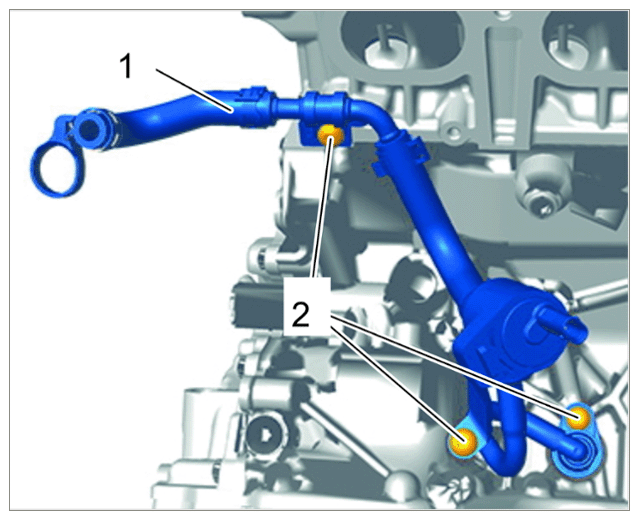

PCV line

> 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

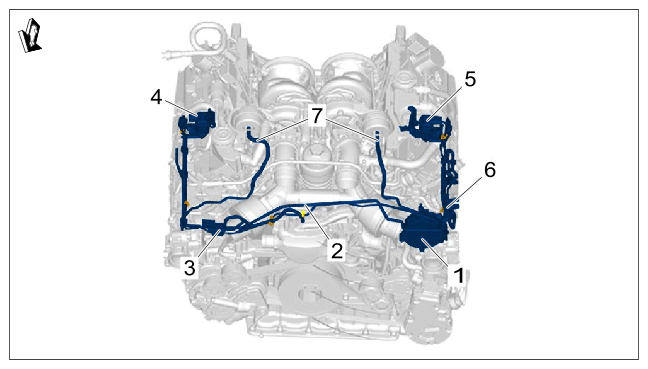

Vacuum system

> 202319 REMOVING AND INSTALLING TANK VENT VALVE

> 975219 Removing and installing engine wire harness

> 105519 REMOVING AND INSTALLING (LEFT) OIL MIST SEPARATOR (V8 BITURBO)

> 105519 REMOVING AND INSTALLING (RIGHT) OIL MIST SEPARATOR (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

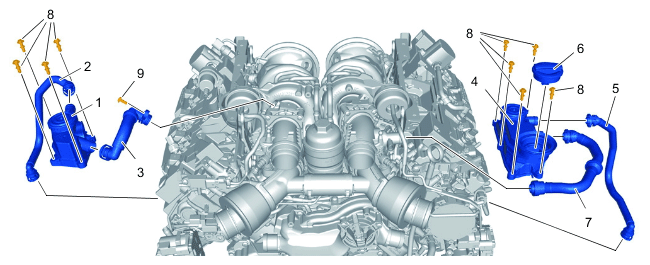

Oil mist separator

1. 18.1 Move coolant lines -2 and 5-  into installation position and fit and tighten screws -1, 3 and 4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

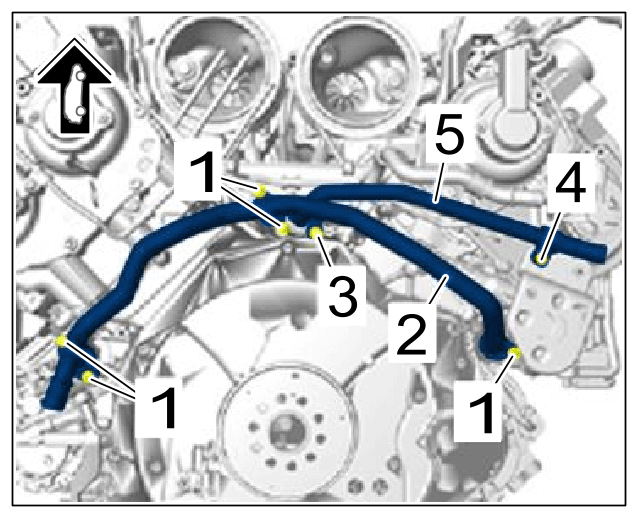

Coolant lines

1. 19.1 Move flywheel into installation position and fit screws.
2. 19.2 Fit > 10-201 - counter-hold tool-1-  with two washers -2-  on the flywheel and tighten screws.

   > 136019 REMOVING AND INSTALLING FLYWHEEL

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

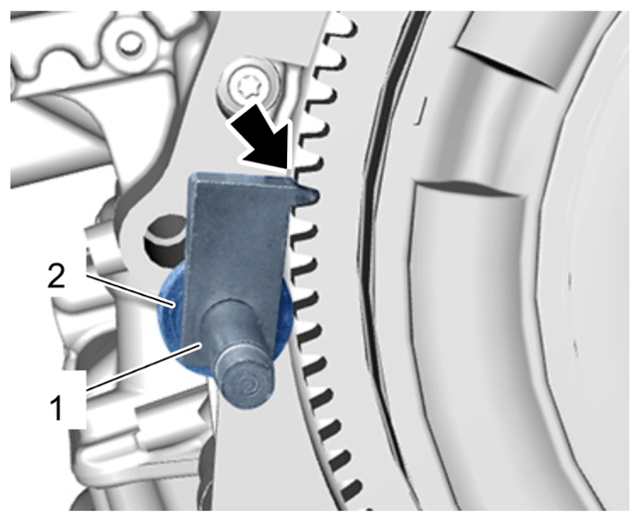

Countering at the flywheel

1. 20.1 Move coolant pump into installation position and fit and tighten screws -7 to 1-  .

   > 195019 REMOVING AND INSTALLING COOLANT PUMP (V8 BITURBO)

Fig 3: Coolant Pump Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

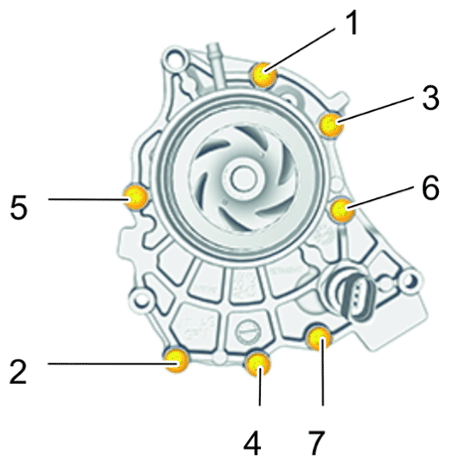

Tightening sequence for coolant pump

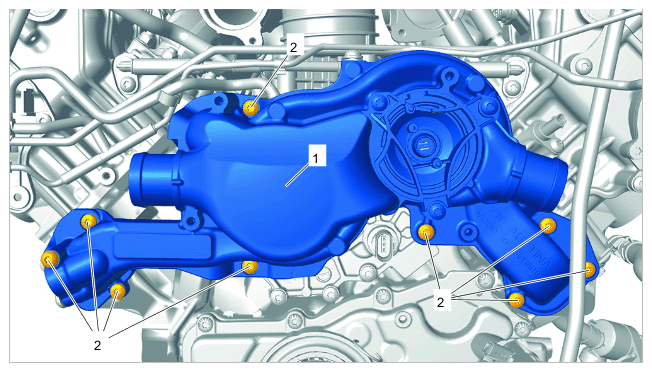

1. 21.1 Move coolant regulator housing -1-  into installation position and fit and tighten screws -2-  .

   > 195519 REMOVING AND INSTALLING COOLANT REGULATOR HOUSING (V8 BITURBO)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

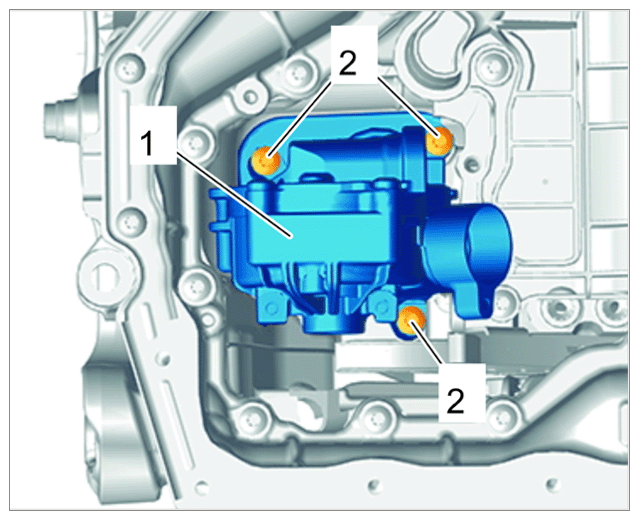

   Coolant regulator housing

> 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR

> 272219 Removing and installing generator (V8 biturbo)

1. 24.1 Move crankshaft vibration damper -2-  into installation position and fit screw -5-  .
2. 24.2 Fit > T40330 - counter-hold tool-1-  and counter while tightening screw -5-  .

   > 137519 REMOVING AND INSTALLING CRANKSHAFT VIBRATION DAMPER (V8 BITURBO)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

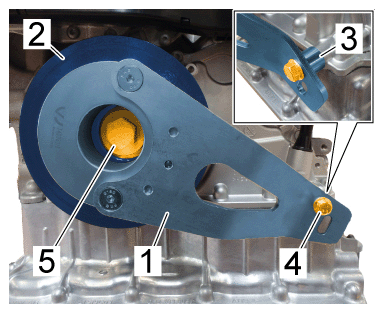

   Counter-hold tool on crankshaft vibration damper

1. 25.1 Move belt tensioner into installation position and fit and tighten screws -2-  .

   > 137319 Removing and installing belt tensioner (air-conditioning compressor)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

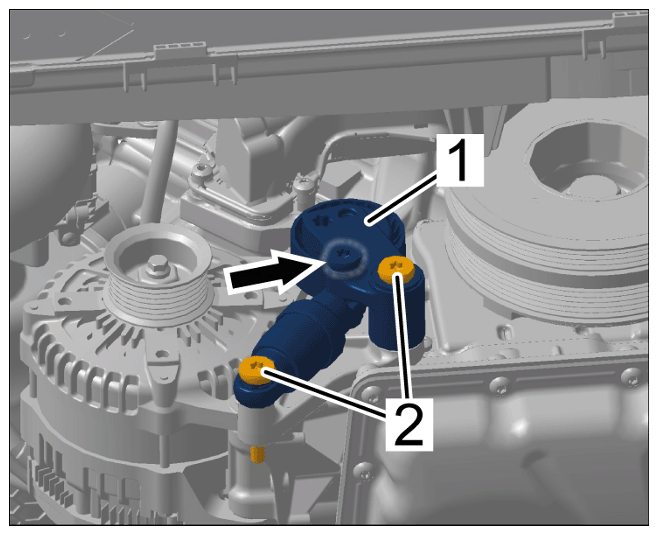

   Belt tensioner (air-conditioning compressor)

1. 26.1 Move belt tensioner into installation position and fit and tighten screws -2-  .

   > 137319 Removing and installing belt tensioner (generator)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

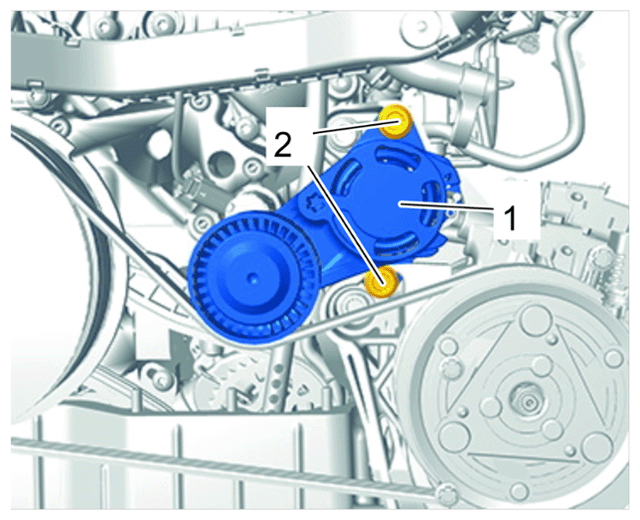

   Belt tensioner (generator)

> 137819 Removing and installing drive belt (V8 biturbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

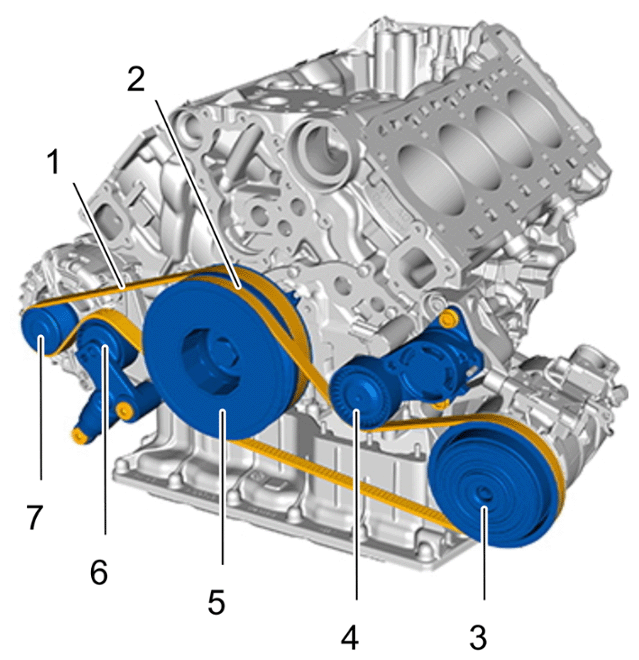

Overview of belt drive

1. 28.1 Move oil/water heat exchanger -1-  into installation position and fit and tighten screws -2-  .

   > 174019 Removing and installing oil/water heat exchanger (V8 biturbo)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Oil/water heat exchanger

> 170719 REMOVING AND INSTALLING OIL TEMPERATURE SENSOR (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

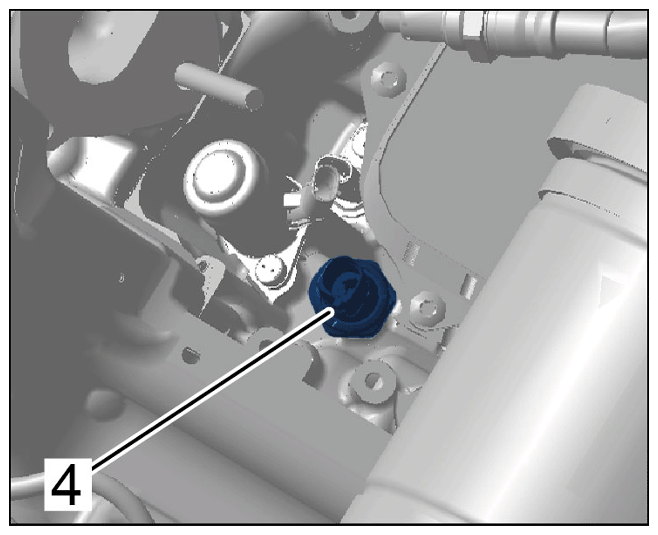

Oil temperature sensor

1. 30.1 Move heat shields -1-  into installation position.
   1. 30.1.1 Fit and tighten screws -3-  .
   2. 30.1.2 Connect and lock electric plug connection -4-  .
2. 30.2 Install heat protection -2-  .
   1. 30.2.1 Move heat protection -2-  into installation position and fit and tighten screw -5-  .

> 170519 REMOVING AND INSTALLING OIL PRESSURE SWITCH (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

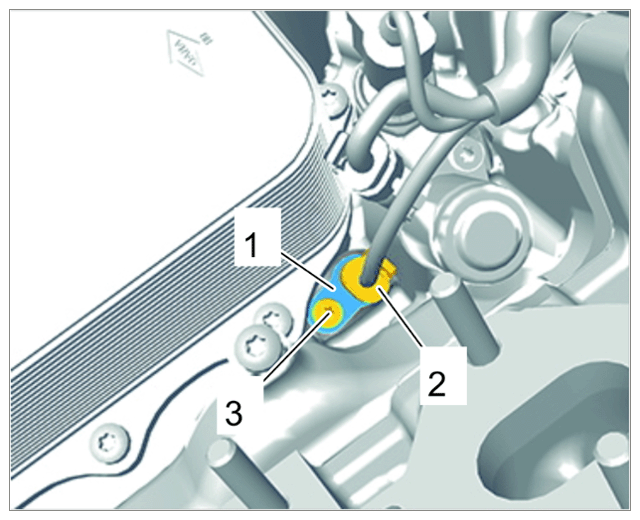

Oil pressure switch

> 172519 REMOVING AND INSTALLING PISTON SPRAY NOZZLE CONTROL VALVE (V8 BITURBO)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

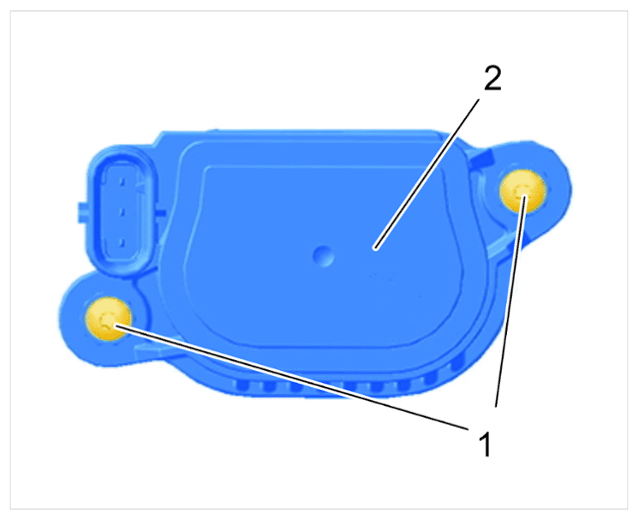

Piston spray nozzle control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

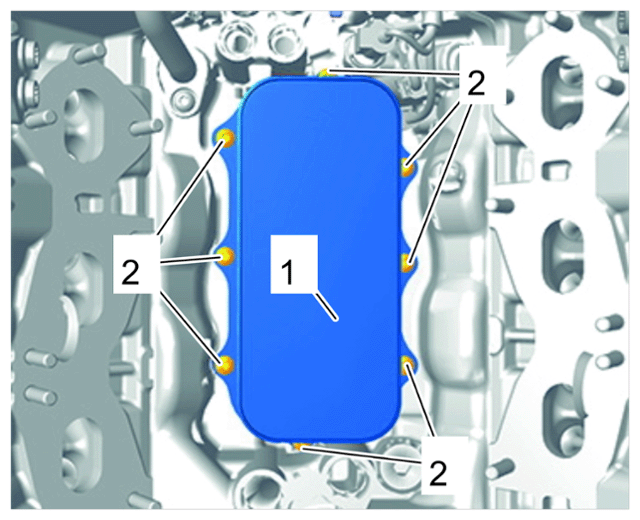

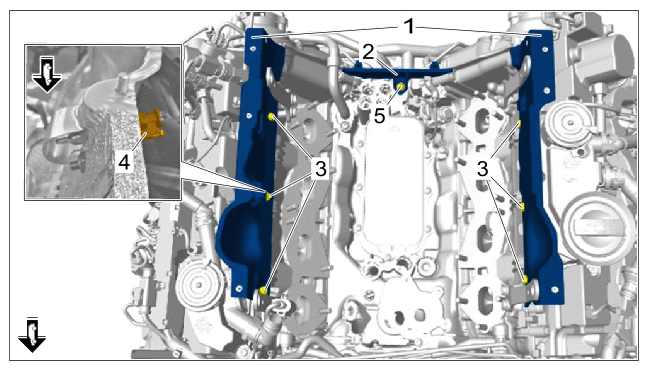

Heat protection in inner V

1. 33.1 Move exhaust manifold with seal into installation position and tighten nuts -1 to 8-  in the specified tightening sequence.

   > 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD (V8 TURBO)

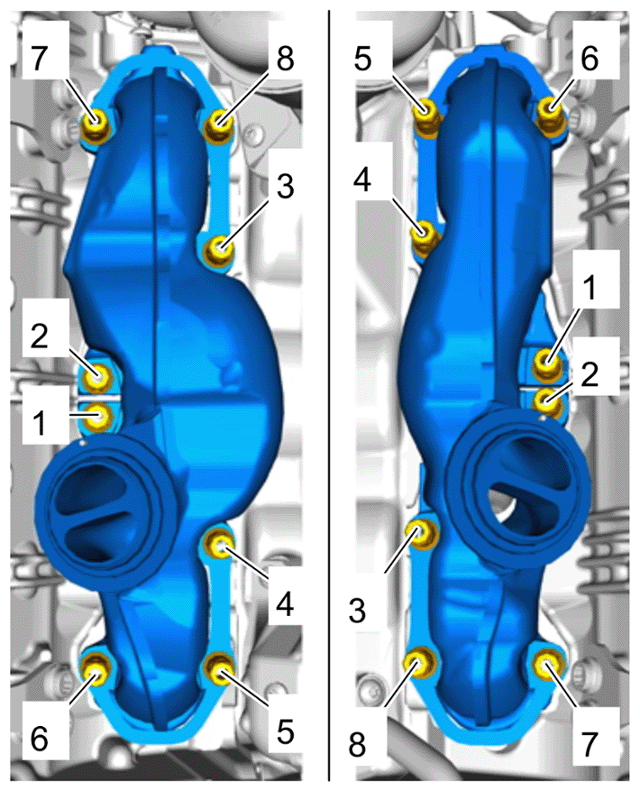

Fig 4: Exhaust Manifold Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Exhaust manifold

> 172919 REMOVING AND INSTALLING OIL FILTER HOUSING (V8 BITURBO)

> 213019 REMOVING AND INSTALLING TURBOCHARGER (V8 BITURBO)

> 100127 REMOVING AND MOUNTING ENGINE

> 100119 REMOVING AND INSTALLING ENGINE

> 170117 DRAINING AND FILLING ENGINE OIL
