Subsequent Work: Notes
WARNING: This page is about a different variant/trim than selected.
- Secure pressure hoses at the bottom on both sides of the charge-air cooler.
> 2X00IN Technical values (V6 biturbo)

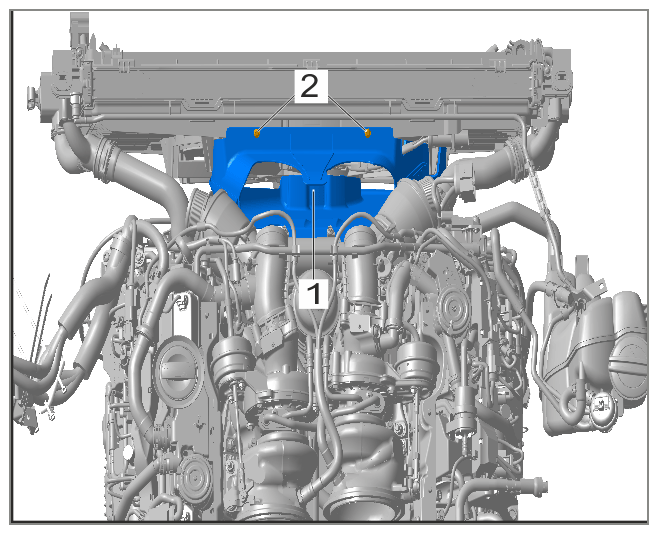

- Install air guide -1-
at the radiator frame.
Air guide at top of radiator frame
- Install air-cleaner cowl.

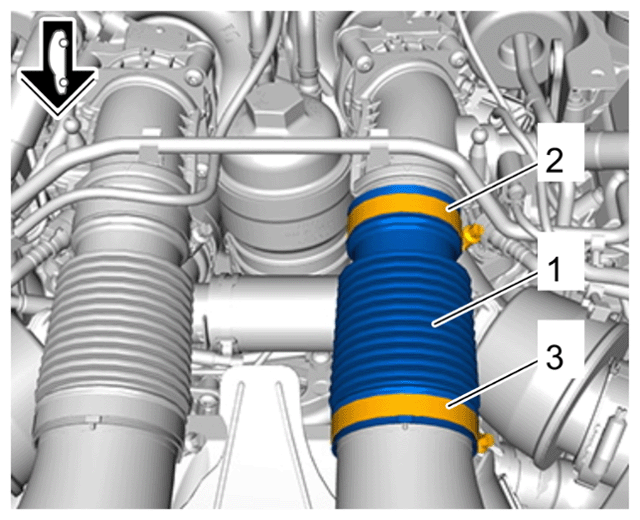

- Secure both suction hoses -1-
. Fit suction hoses and fasten clamps -3-
.
Suction hose
- Install engine cover.
> 108319 Removing and installing engine cover (design cover) (V6 biturbo)
- Install engine compartment trim panel.
> 700219 REMOVING AND REINSTALLING FRONT TRIM PANEL (ENGINE COMPARTMENT)
- Install front wheel housing liners.
> 505619 Removing and installing front wheel housing liner
- Install rear cardan shaft.
- Secure ATF lines to the ATF cooler.
> 386219 Removing and installing line for ATF cooling
- Secure air-conditioning lines to the cooler.
- Install exhaust system.
- Connect battery ground strap.
- Start the high-voltage system.
> 2X00IN Isolating high-voltage system from power supply/Starting high-voltage system
- Fill up coolant.
> 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)
> 193817 Draining and filling coolant (low-temperature cooling system)
- Connect battery ground strap.
- Fill in refrigerant.
- Check engine oil.
- Fill in ATF.
- Perform suspension alignment.
- Perform a test drive.
After the cooling system has cooled down again, check the engine coolant level in the reservoir and top up to the Maximum mark if necessary.
