Installing Motor
Information
For tightening torques, tightening sequence and assembly overviews for the engine and transmission:
- Group 1:
> 1X00IN Technical values
- Group 2:
> 2X00IN Technical values
- Group 3:
> 3X00IN Technical values
Vehicle, top:
Information

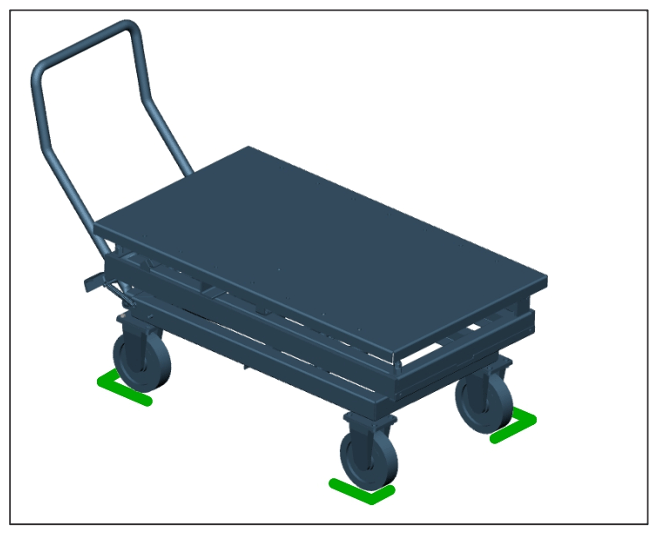

Adhesive tape markings on the workshop floor
- Before moving the unit elevating platform, mark the position of the wheels on the workshop floor with adhesive tape. This makes it easier to position the platform again for re-installation.
- Guide the engine in under the vehicle.
- 1.1 Move the engine under the vehicle using > VAS 6832 - Master Gear unit elevating platform .
- 1.2 Position the unit elevating platform at the positions marked during removal.
- 1.3 Guide the engine up into the engine compartment using the lifting equipment.
- Secure coolant lines -1-
and -2-
at the front right.
- 2.1 Raise the engine slightly.
- 2.2 Connect coolant lines -1- and -2- .
- 2.3 Secure coolant line -1- in holder -3- .
- 2.4 Secure clamps -3- using > VAS 6891 - Spring Band Clamp Pliers .

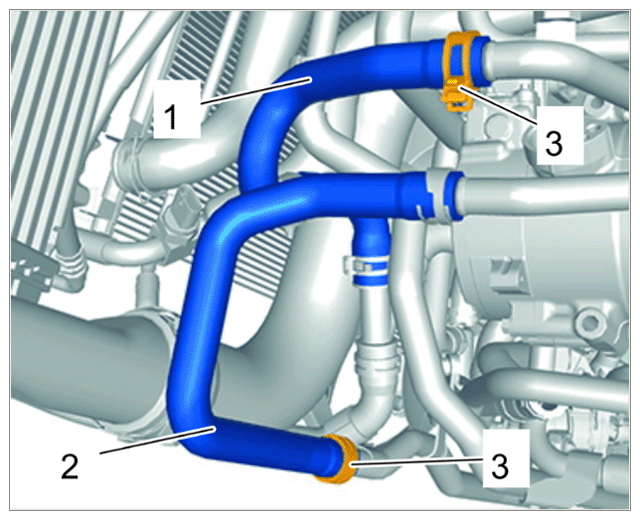

Front right coolant lines
- Secure the front-axle carrier and transmission support.
- 3.1 Fit all screws.
- 3.2 Tighten screws on the front-axle carrier.
- 3.3 Tighten screws on the transmission support.
> 3X00IN Technical values, transmission
- Secure the strut -1-
.
> 4X00IN TIGHTENING TORQUES FOR FRONT AXLE
Strut mounting

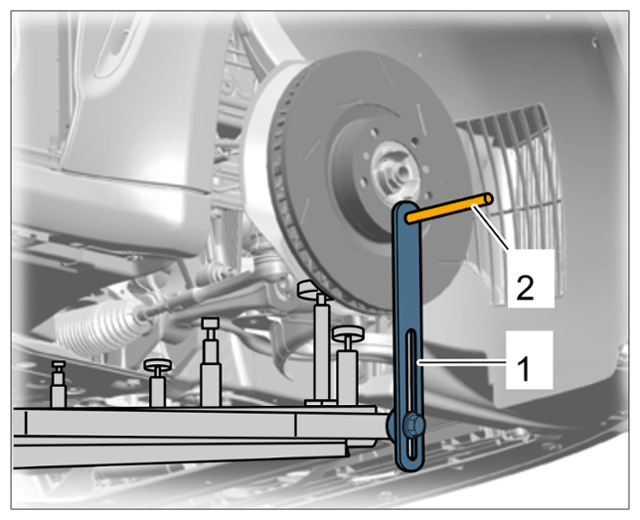

- Remove wheel hub holder -1-
at both sides on the wheel hub.
Wheel hub holder (similar to illustration)

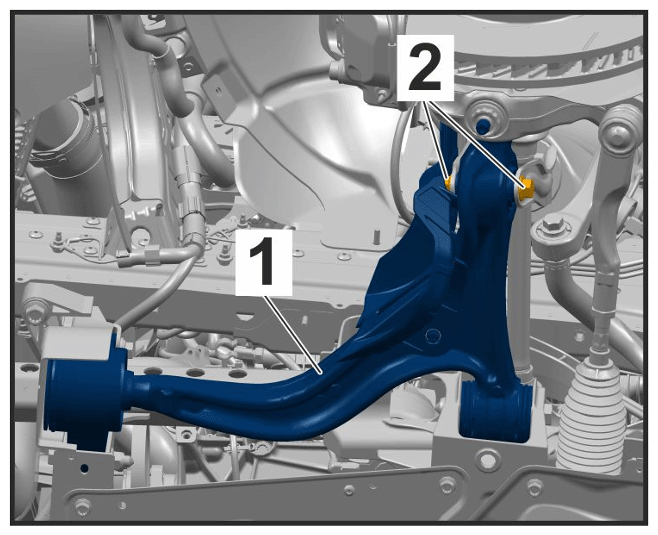

- Secure the spring strut to the lower wishbone -1-
.
> 4X00IN TIGHTENING TORQUES FOR FRONT AXLE
Mounting for spring strut on lower trailing arm
- Secure the wheel carrier to the upper wishbone.
- Secure the front brake calliper to the wheel carrier.
> 473919 REMOVING AND INSTALLING FRONT BRAKE CALLIPER

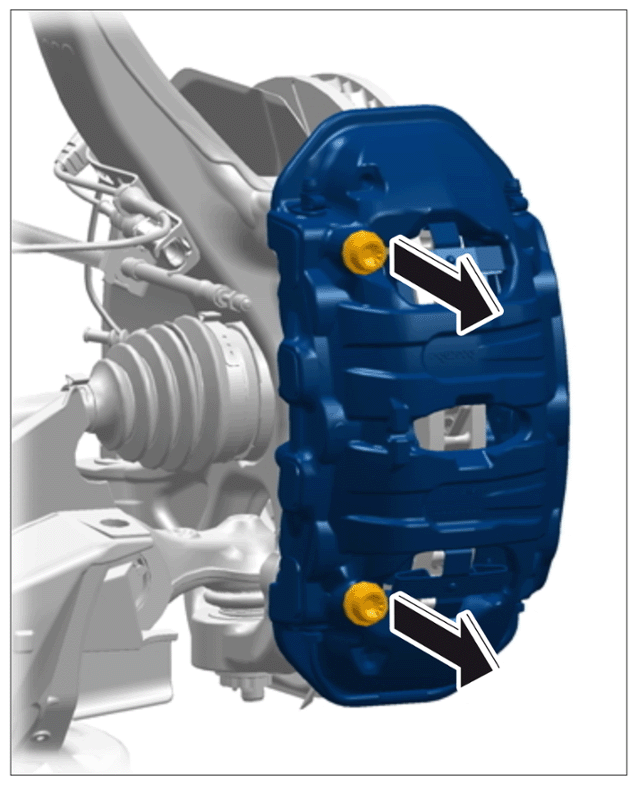

Front brake calliper
- Secure wire harness for wheel carrier.
> 4X00IN TIGHTENING TORQUES FOR FRONT AXLE

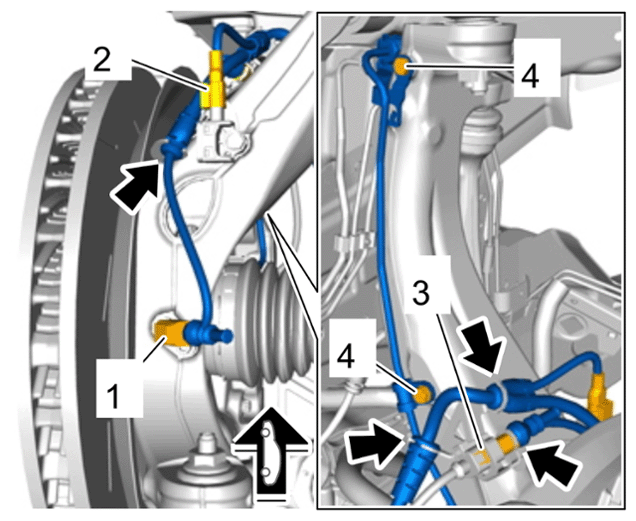

Wire harness for wheel carrier at the front
- Secure universal joint on the steering gear.
- Secure coolant lines for heating -1-
and -2-
.
Coolant lines for heating
- Connect electric connector -1-
to the front-axle carrier -2-
at the front right.

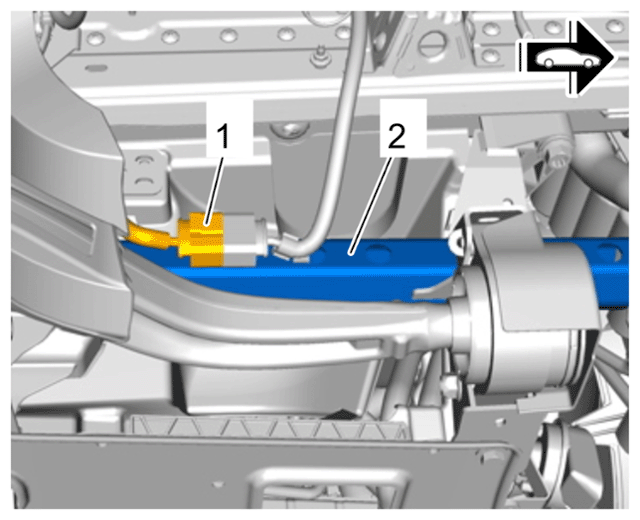

Electric connector on front-axle carrier at the front right
- Secure wire harness for steering gear -1-
.
Wire harness for steering gear
- Only for PDCC:
Secure wire harness to the PDCC anti-roll bar control unit.
- Connect electric lines in the front left wheel housing.
> 9X00IN Technical values
Electric lines in FL wheel housing
- Insert cable plug -1-
on the air-conditioning compressor -2-
.

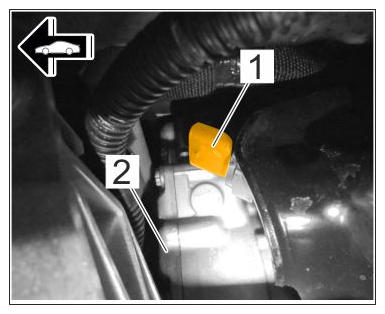

Cable plug for air-conditioning compressor

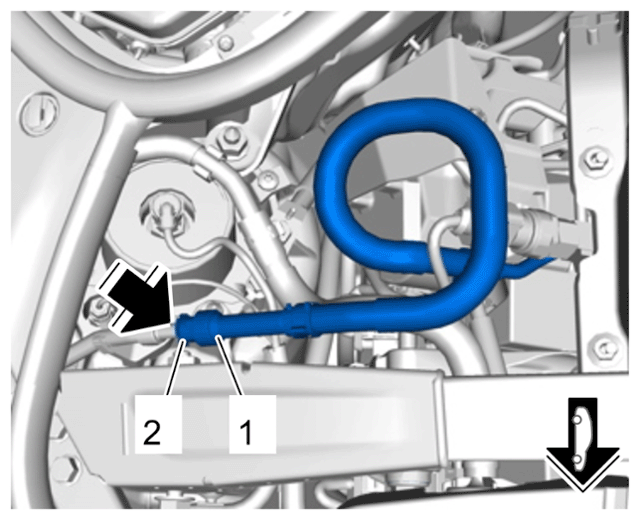

- Secure electric line -1-
at the front.
- 17.1 Connect and lock electric connector for additional coolant pump -2- .
- 17.2 Connect and lock electric connector for acceleration sensor -3- .
- 17.3 Connect and lock electric connector for left horn -4- .
- 17.4 Secure holder -arrows- .
Wiring harness for lower body front section
- Secure electric line for change-over valve -1-
.
- 18.1 Connect and lock electric connector -2- .
- 18.2 Secure holder -arrows- .

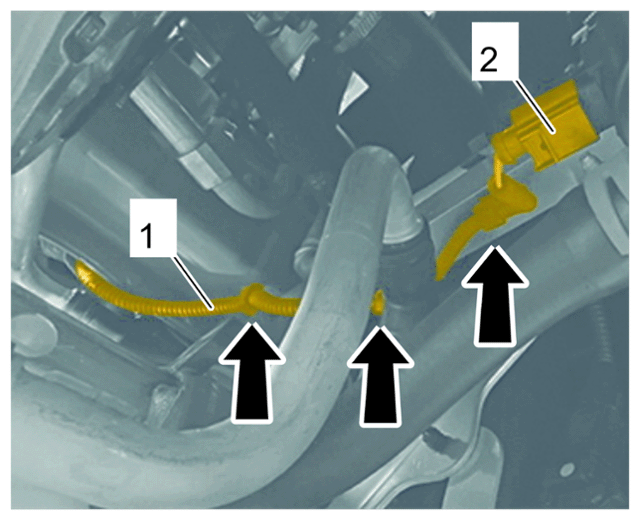

Electric line for change-over valve

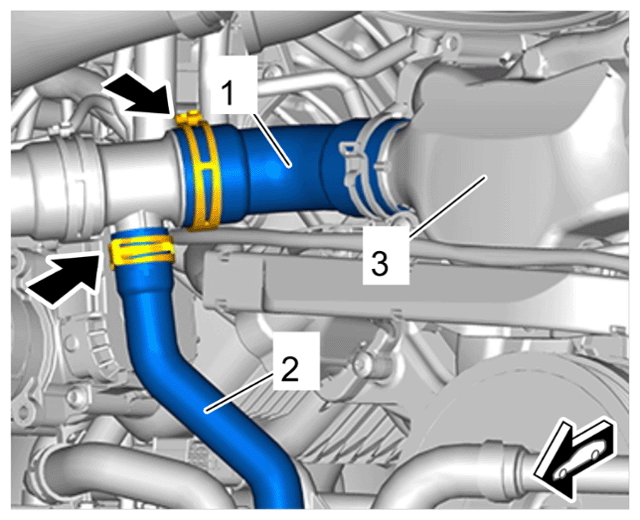

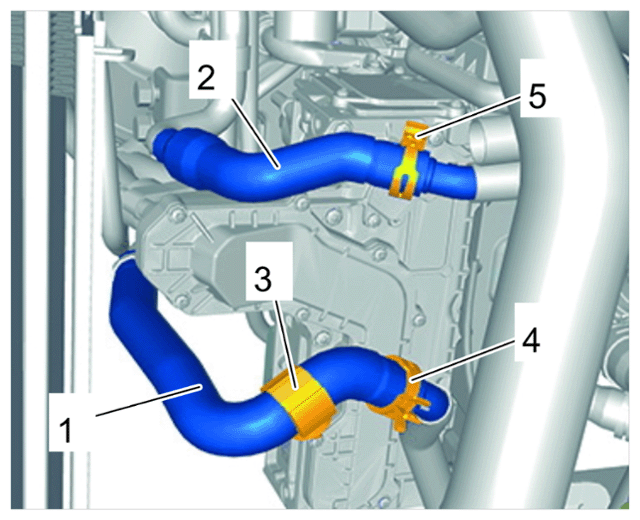

- Secure coolant lines -1-
and -2-
.
- 19.1 Tighten clamps -3- .
- 19.2 Remove air guide on charge-air cooler at the rear.
Front left coolant lines
- Secure electric line on additional coolant pump -1-
at the front.
- 20.1 Connect and lock electric connector -2- .
Electric line on additional coolant pump
- Secure electric line for horn.
> 905019 Removing and installing horn
Vehicle, underneath:

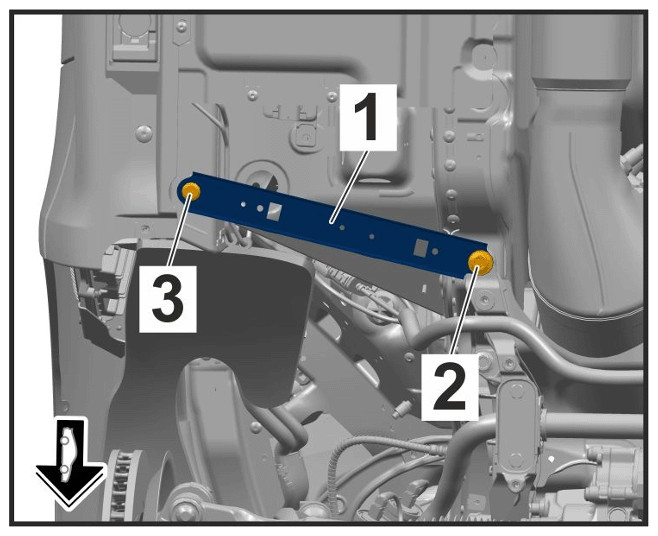

- Secure electric lines to the diagonal brace at the right.
Electric lines on diagonal brace at the right
- Connect tank vent line -1-
to tank vent line -2-
.
Tank vent line

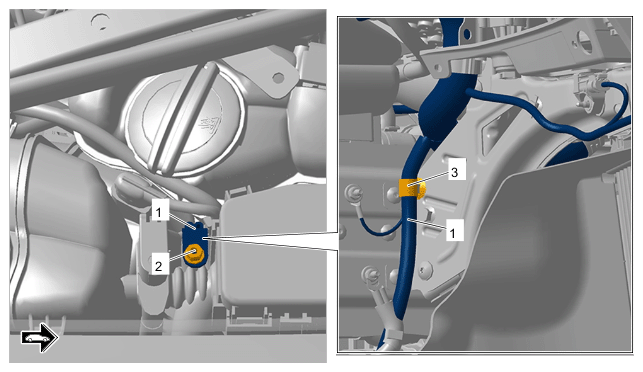

- Secure ground cable -1-
to the right spring strut dome.
> 9X00IN Technical values

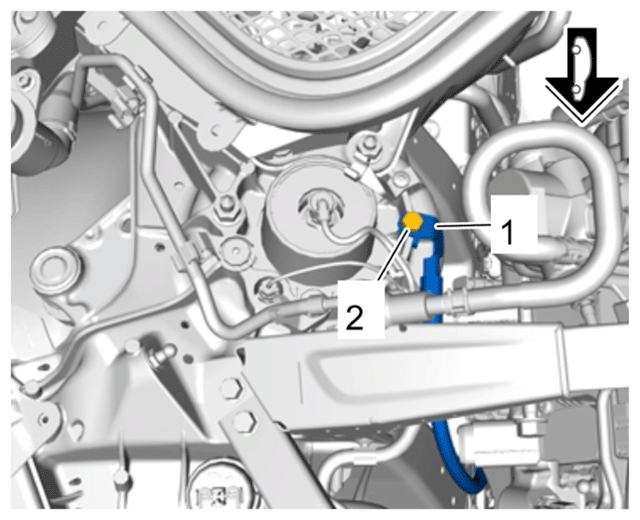

Ground point for right spring strut dome
- Connect fuel supply line -1-
.
Fuel supply line
- Connect coolant vent line -1-
.
Coolant vent line
- Secure B+ line -1-
to the relay carrier.
B+ line on relay carrier
- Secure torque support to the engine.
- Depending on type:
Connect electric connectors on the pressure sensor at the left and right to the throttle valve.

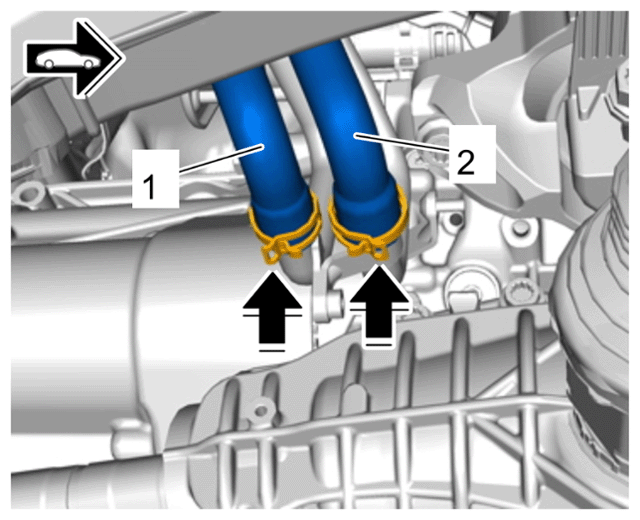

- Secure coolant lines -1-
and -2-
at the coolant pump -3-
.
Coolant lines on coolant pump
Information
- Replace O-rings on the cooling system.
- Clean plug connection and coolant hoses before assembly.
- Remove stoppers before fitting the coolant lines and hoses.

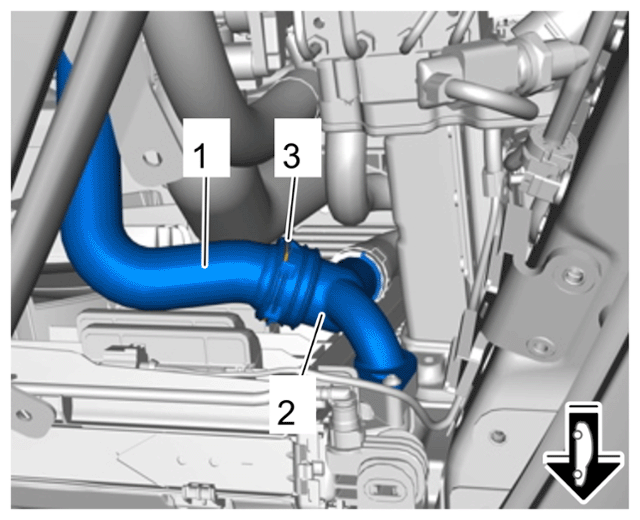

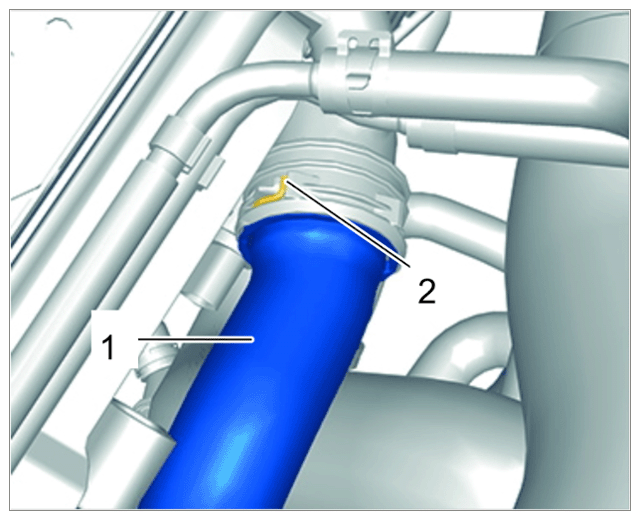

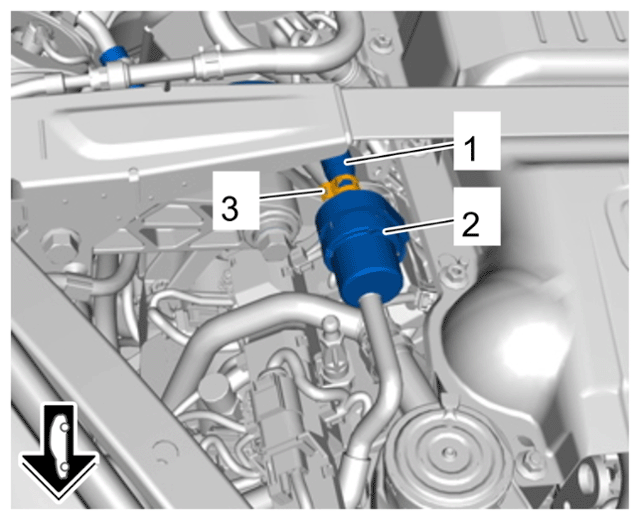

- Secure coolant line -1-
to the top of the radiator -2-
.
- 31.1 Fit circlip -3- .
Coolant line at top of radiator

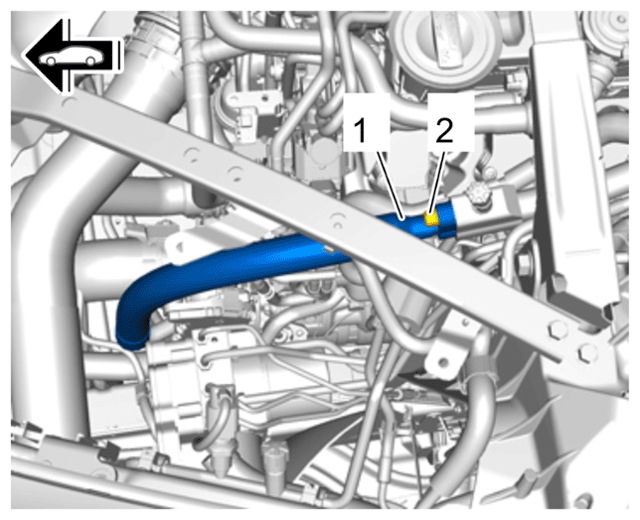

- Connect vacuum line -1-
to the valve cover.
Vacuum line for valve cover at the left
- Connect air-conditioning line (low-pressure) -1-
in the engine compartment.
> 8X00IN TECHNICAL VALUES - AIR CONDITIONING
- 33.1 Check O-rings and replace them if damaged.
- 33.2 Coat O-rings with refrigerant oil before fitting them.
Low-pressure air-conditioning line

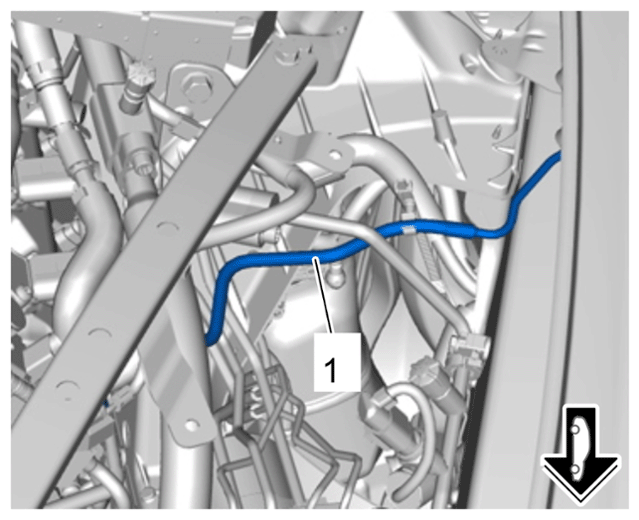

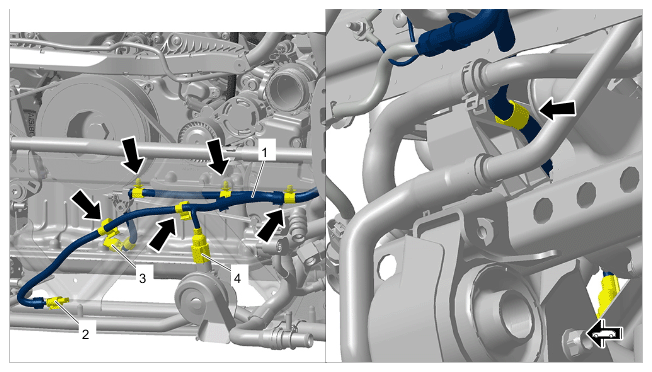

- Secure engine wire harness -1-
in the front left wheel housing.
- 34.1 Replace damaged holders/tie-wraps -arrows- .
Engine wire harness - part 2
- Secure engine wire harness -1-
in the front left wheel housing.
- 35.1 Replace damaged holders/tie-wraps -arrows- .
Engine wire harness - part 1
- Secure coolant line -1-
at the top right of the radiator.
- 36.1 Coat O-ring with grease.
- 36.2 Connect coolant line and fasten safety clip -2- .
Coolant line on right radiator

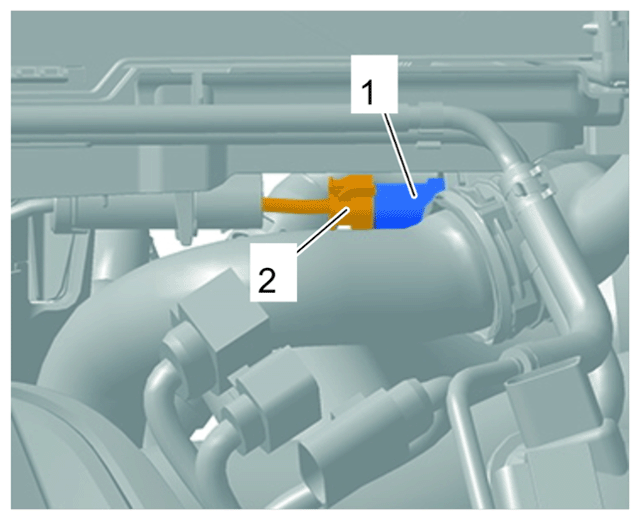

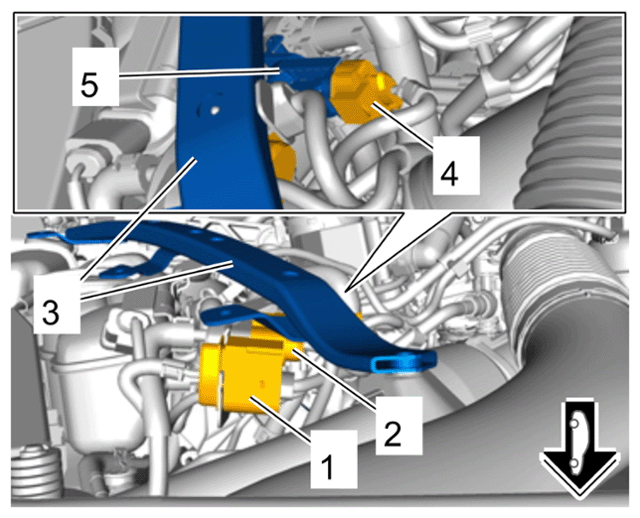

- Connect and lock electric connector -2-
for coolant temperature sensor -1-
.
Temperature sensor at radiator

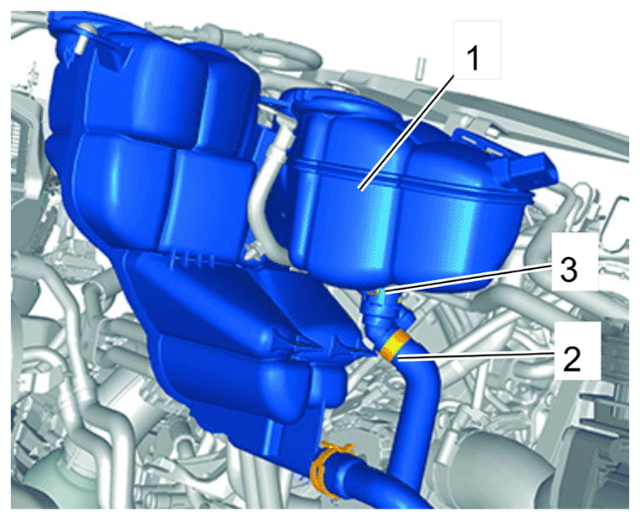

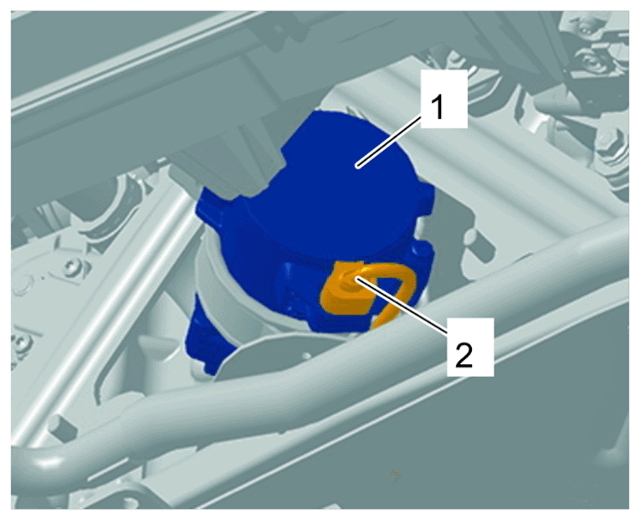

- At the reservoir for the low-temperature system -1-
, secure coolant line -2-
.
- 38.1 Connect coolant line -2- and lock safety clip -3- .
Coolant line on coolant reservoir for low-temperature system

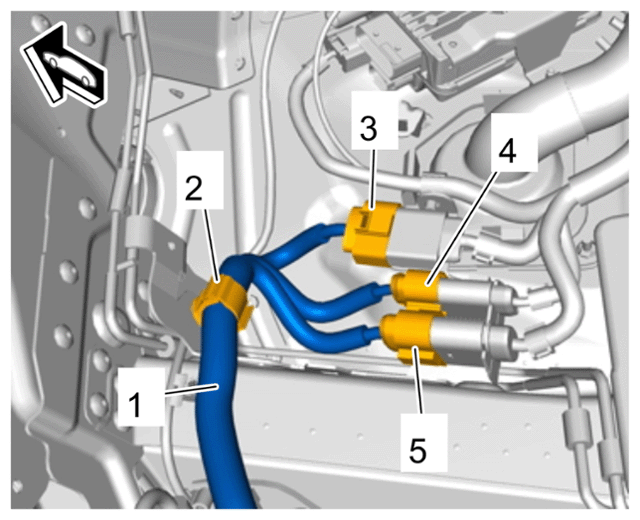

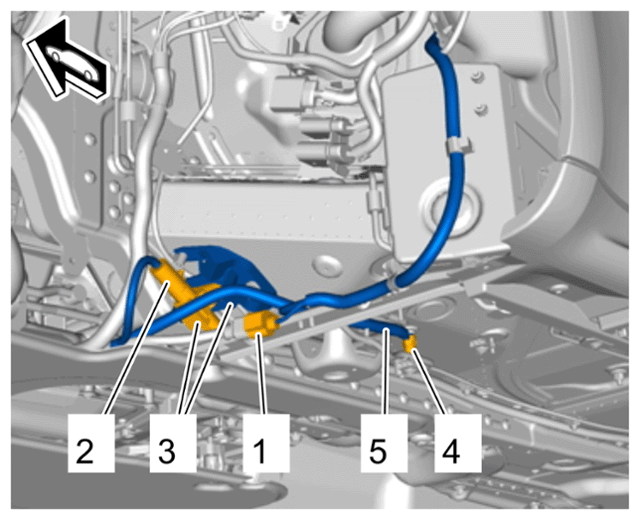

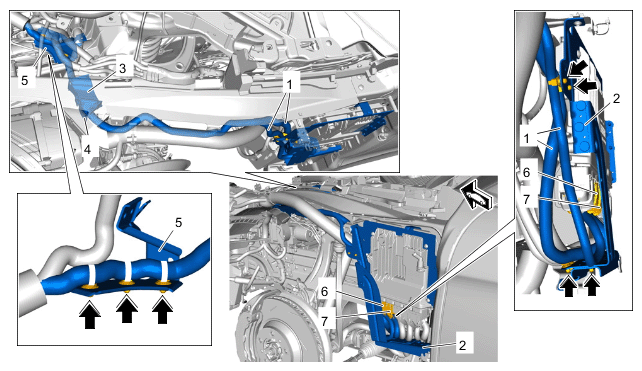

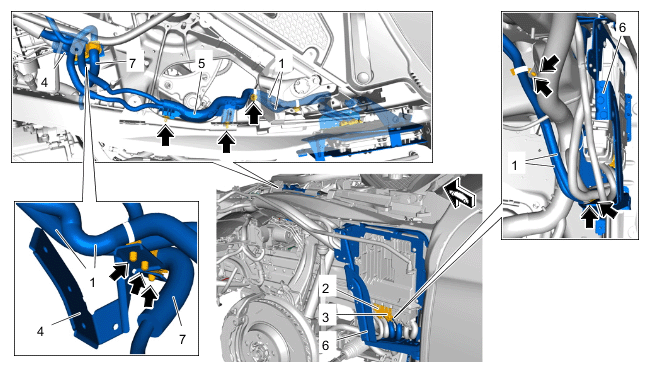

- Secure high-voltage lines to the air-conditioning compressor.
- Secure high-voltage lines from high-voltage battery to the power electronics.
> 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO HIGH-VOLTAGE BATTERY
