Removing Balance Shaft Bearing

WARNING: This page is about a different variant/trim than selected.
  1. Prepare the > T40395 - insertion tool  .

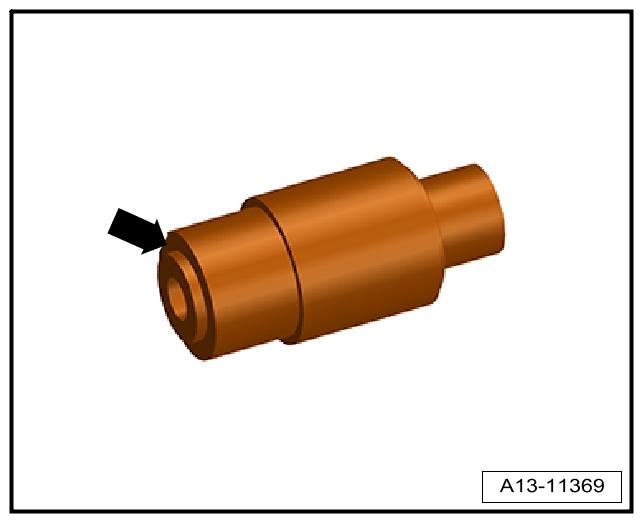

    1. 1.1 Fit adapter T40395/2 on the roller bearing at the correct side. The chamfer -Arrow-  must be facing the roller bearing.
      G15822877Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Adapter T40395/2

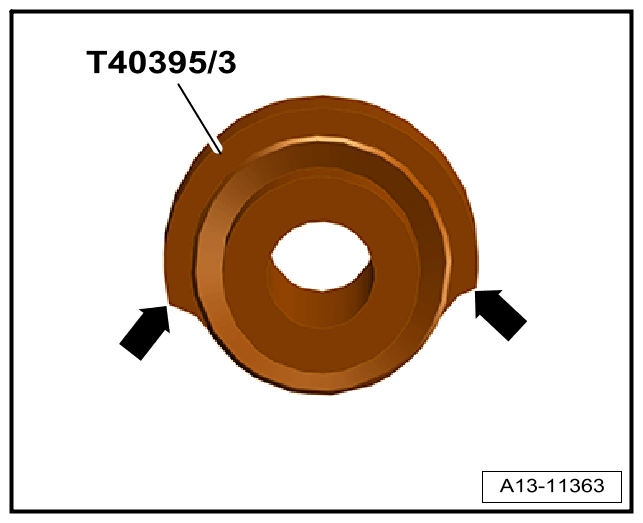

    2. 1.2 Align adapter -T40395/3-  . The side without the chamfer -Arrows-  points downwards
    G15822878Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adapter T40395/3

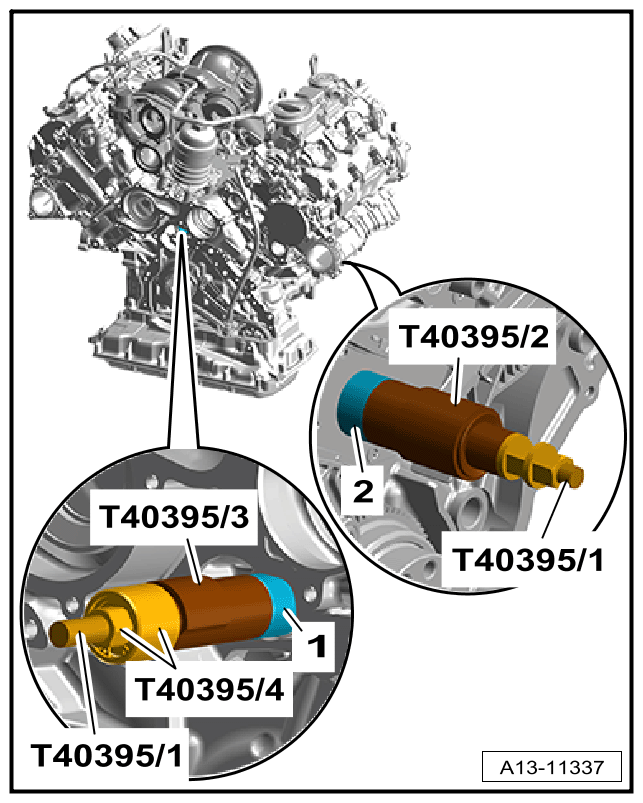

  2. Pull the roller bearing inward at the front -1-  and rear -2-  using the spindle -T40395/1-  , adapter -T40395/2-  and adapter -T40395/3  -as far as it will go by turning the nut -T40395/4-  .
    G15822879Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Using special tool T40395

    Installing balance shaft bearing

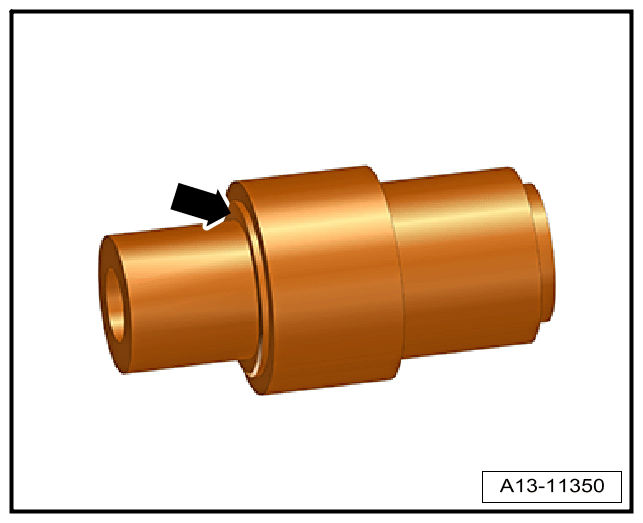

  1. Fit adapter T40395/2 on the roller bearing at the correct side. The chamfer -Arrow-  must be facing the roller bearing and determines the installation depth.
    G15822880Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adapter T40395/2

  2. Align adapter -T40395/3-  . The side without the chamfer -Arrows-  points downwards
    G15822881Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adapter T40395/3

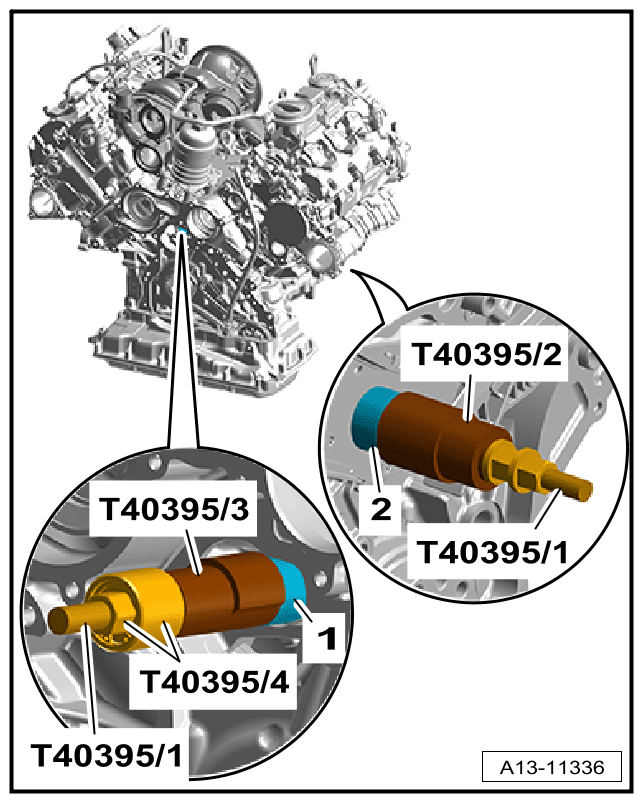

  3. Insert roller bearing at the front -1-  and rear -2-  using the spindle -T40395/1-  , adapter - T40395/2-  and adapter -T40395/3-  as far as it will go by turning the nut -T40395/4-  .
    G15822882Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Using special tool T40395
