Preliminary Work - V8 Biturbo (Section From Engine To High-Pressure Pump)

WARNING: This page is about a different variant/trim than selected.

Relieve fuel pressure in the system.
1. 1.1 Remove cover from fuse carrier F in the engine compartment at the front right.
2. 1.2 Pull out the fuse -1- for the fuel pump.
3. 1.3 Start the engine, wait until it cuts out and then re-insert the fuse -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

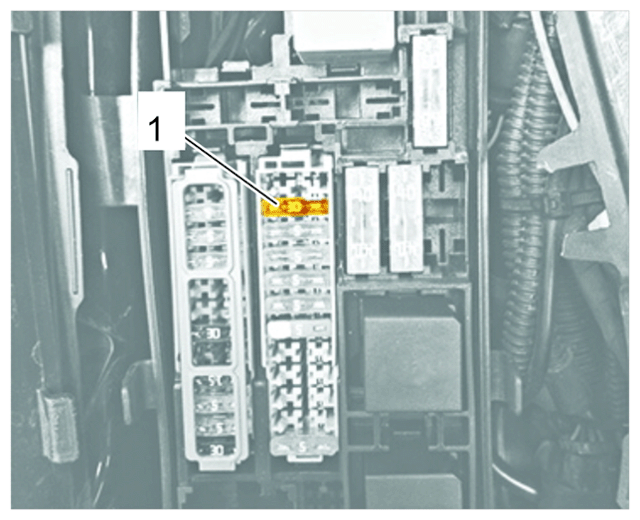

Fuel pump fuse
Remove cross panel.
> WM, 508119 REMOVING AND INSTALLING CROSS PANEL
Remove exhaust system.
> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
