Removing Fuel Tank Pressure Regulator

WARNING: This page is about a different variant/trim than selected.
  1. Remove fuel tank pressure regulator -1-  .

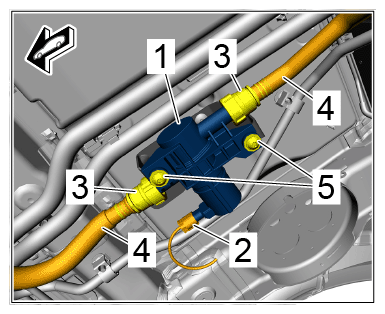

    G15877874Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel tank pressure regulator

    1. 1.1 Release and disconnect electric plug connection -2-  .
    2. 1.2 Release and disconnect quick connectors -3-  .
    3. 1.3 Move vent line -4-  aside.
    4. 1.4 Close line connections with suitable stoppers
    5. 1.5 Remove screws -5-  and remove fuel tank pressure regulator -1-  .
