Removing Tank Vent Valve (V6 BITURBO)

Information

• Open connections and lines must be closed off using suitable stoppers or caps.

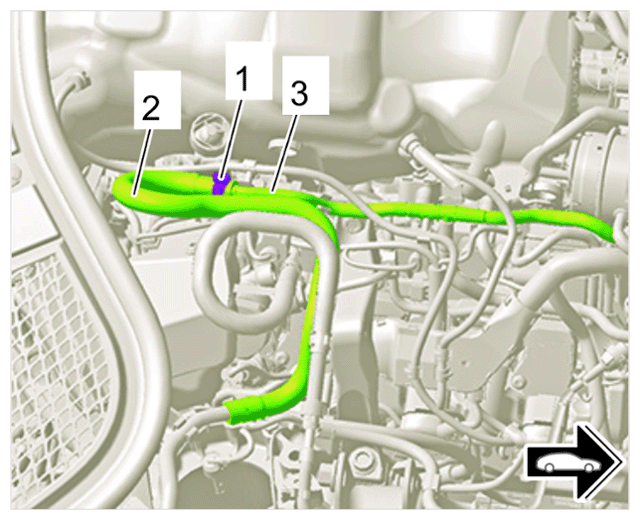

1. Loosen clamp -1-  and pull hose -2-  off the tank vent line -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tank vent line (shown on V6 biturbo)

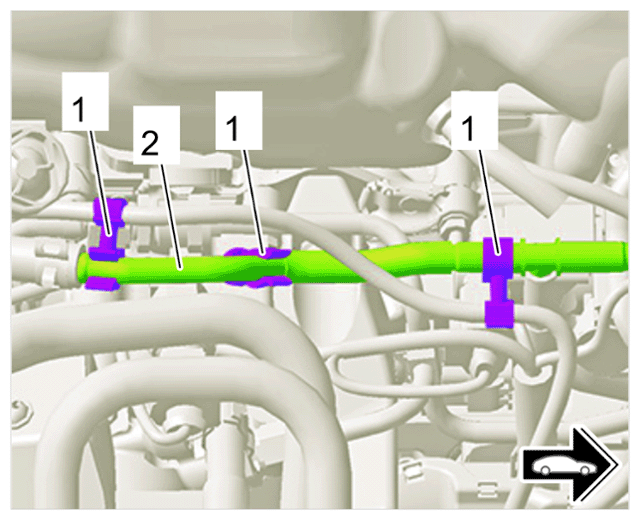

2. Unclip retaining clips -1-  from tank vent line -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clips on tank vent line (shown on V6 biturbo)

3. Loosen engine wire harness (cylinders 1 to 3).

   > WM, 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS

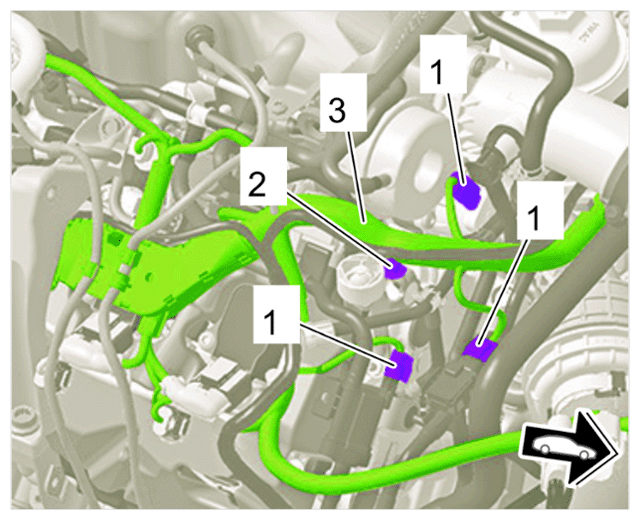

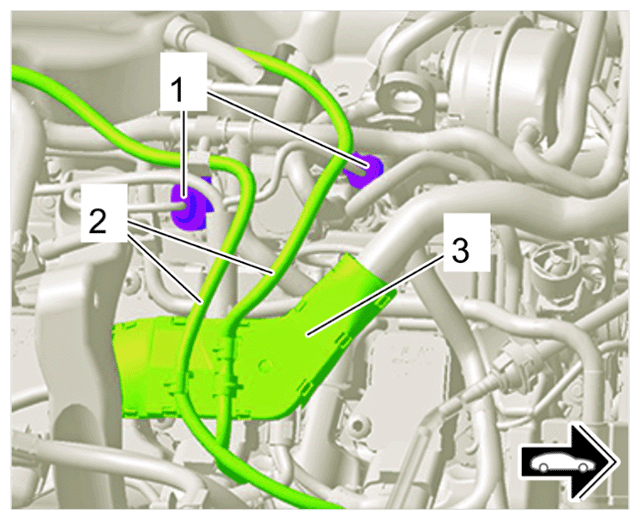

   1. 3.1 Release and disconnect electric plug connections -1-  .
   2. 3.2 Unclip electric lines -2-  from cable duct -3-  and set them aside.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Loosening engine wire harness (cylinders 1 to 3)

   3. 3.3 Release and disconnect electric plug connections -1-  .
   4. 3.4 Unclip retaining clip -2-  and expose electric wire harness -3-  so that the tank vent line is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connections for engine wire harness (cylinders 1 to 3)

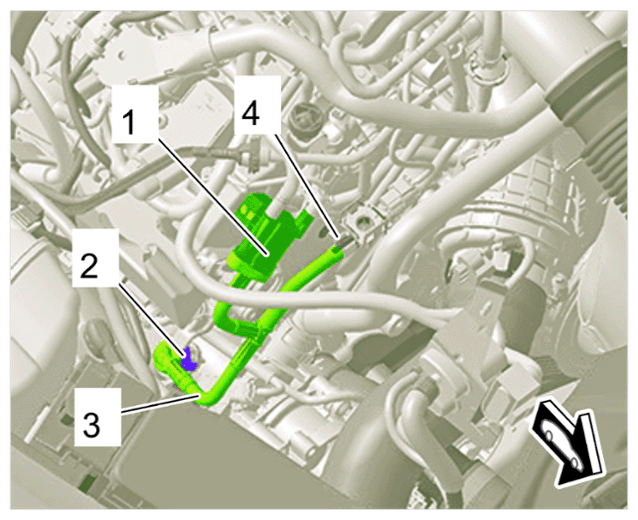

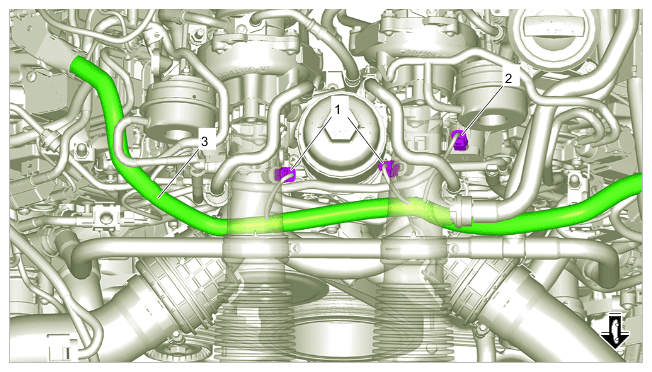

4. Disconnect tank vent line -3-  (cylinders 1 to 3).
   1. 4.1 Release and disconnect quick connector -2-  .
   2. 4.2 Unclip tank vent line -3-  from retaining clip -4-  .
   3. 4.3 Pull active carbon filter valve -1-  off the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Active carbon filter valve (cylinders 1 to 3)

5. Make sure you can access the tank vent line.
   1. 5.1 Release and disconnect electric plug connections -1 and 2-  .
   2. 5.2 Carefully move electric wire harness -3-  aside to allow access to the tank vent line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for temperature sensor

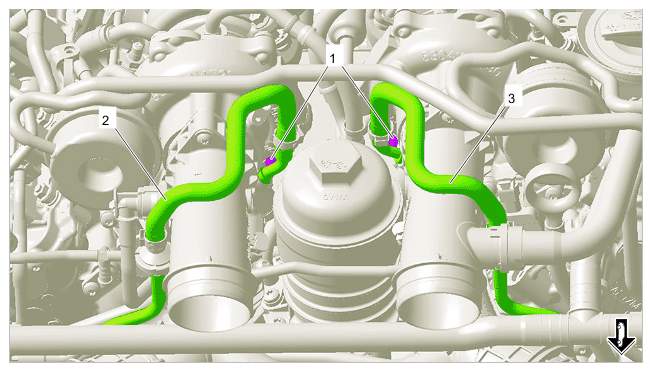

6. Remove tank vent lines -2 and 3-  from turbochargers.
   1. 6.1 For easier access, remove oil filter.

      > 170117 DRAINING AND FILLING ENGINE OIL

   2. 6.2 Unscrew fastening screws -1-  .
   3. 6.3 Disconnect tank vent lines -2 and 3-  from turbochargers. Replace sealing rings.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tank vent lines on turbochargers

7. Loosen engine wire harness (cylinders 4 to 6) and move it aside to allow access to the tank vent line.

   > WM, 975219 REMOVING AND INSTALLING ENGINE WIRE HARNESS

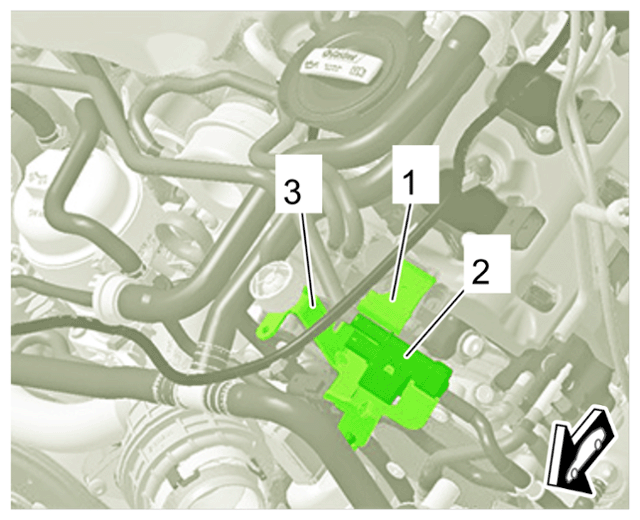

8. Expose holder -3-  .
   1. 8.1 Pull solenoid valve -1-  with vacuum lines connected off the holder -3-  .
   2. 8.2 Pull tank vent valve -2-  with lines connected off the holder -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Solenoid valve holder

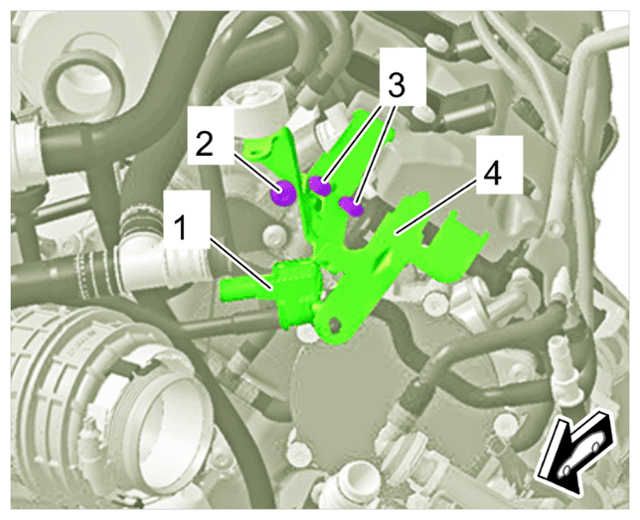

9. Remove holder -4-  .
   1. 9.1 Unscrew fastening screws -2 and 3-  .
   2. 9.2 Lift up holder -4-  until pressure sensor -1-  is accessible.
   3. 9.3 Unclip pressure sensor -1-  from holder -4-  and remove holder -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for solenoid valve holder

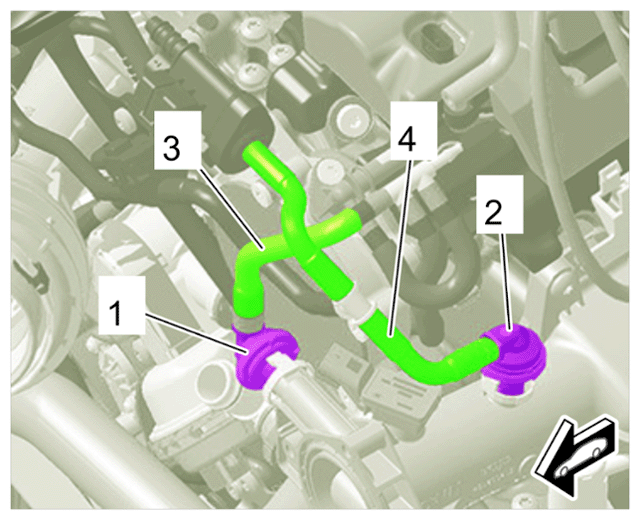

10. Remove tank vent line -4-  .
    1. 10.1 Release and disconnect quick connector -1-  .
    2. 10.2 Disconnect vacuum line -3-  and guide it out between the tank vent lines -4-  .
    3. 10.3 Release and disconnect quick connector -2-  .
    4. 10.4 Disconnect tank vent line -4-  and guide it out carefully.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent line (cylinders 4 to 6)
