Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install rear axle housing.
> 420519 REMOVING AND INSTALLING REAR AXLE HOUSING
Install heat shields on centre tunnel.
> WM, 261420 REMOVING AND INSTALLING HEAT SHIELDS
Install rear cardan shaft.
> 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT
Install exhaust system.
> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM
Install cover for centre underbody.
> WM, 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY
Install rear right seat.
> WM, 724819 REMOVING AND INSTALLING REAR SEAT - Coupe or WM, 724819 REMOVING AND INSTALLING REAR SEAT - Wagon
Connect the battery.
> 270619 REMOVING AND REINSTALLING BATTERY
Fill the fuel tank.
> 2010EN EMPTYING AND FILLING THE FUEL TANK

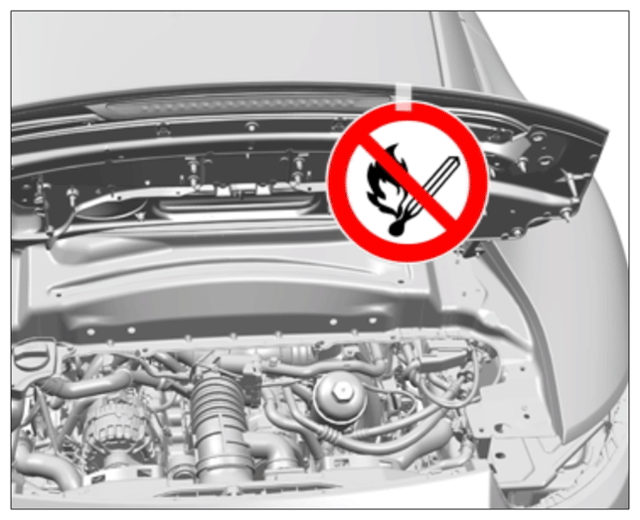

Remove warning sign > Example of a warning sign

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Example of a warning sign
Fill air springs.
> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Start the 48 V system.
> 270703 DISCONNECTING AND STARTING 48 V SYSTEM
Start the high-voltage system.
> 2X00IN ISOLATING HIGH-VOLTAGE SYSTEM FROM POWER SUPPLY/STARTING HIGH-VOLTAGE SYSTEM
