Removing Cylinder Head (Left Cylinder Bank)

WARNING: This page is about a different variant/trim than selected.
  1. Remove coolant pipe -2-  .
    1. 1.1 Unscrew screws for coolant pipe -1-  .
    2. 1.2 Remove coolant pipe -2-  .
    G15823023Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant pipe

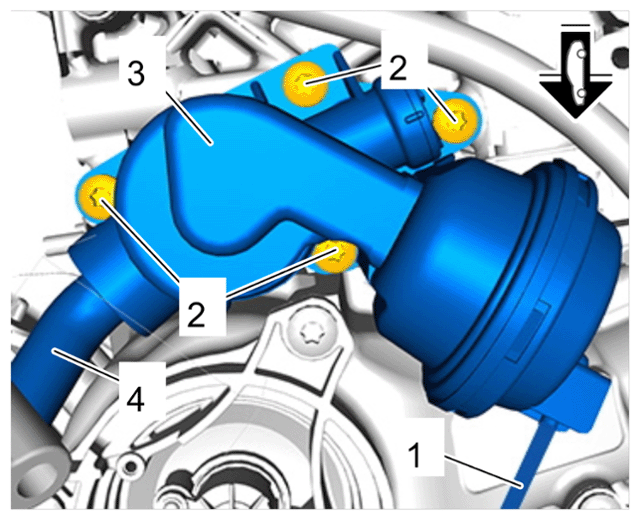

  2. Remove coolant control valve -3-  .
    1. 2.1 Pull off vacuum hose -1-  .
    2. 2.2 Unscrew screws on coolant control valve -2-  and pull coolant control valve -3-  off the coolant pipe -4-  .
    G15823024Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant control valve

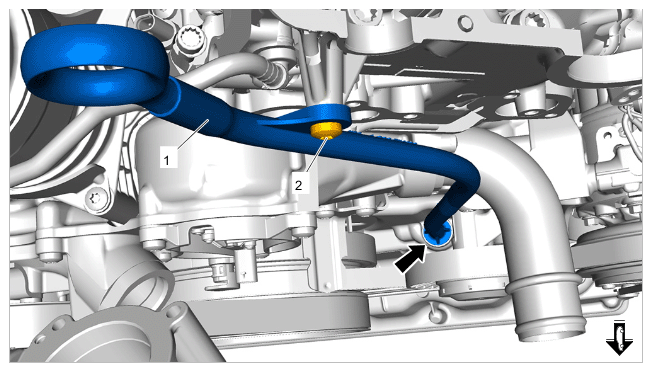

  3. Remove guide for oil dipstick -1-  by unscrewing screw -2-  and pulling guide for oil dipstick -1-  up out of the crankcase cover -arrow-  .
    G15823025Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Oil dipstick guide

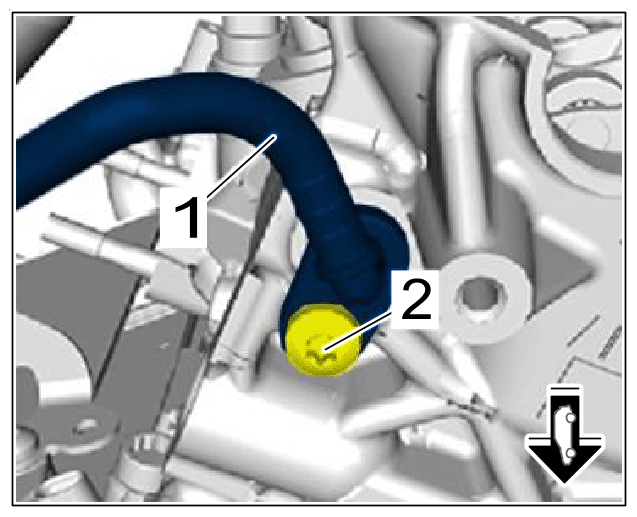

  4. Remove vacuum line -1-  by unscrewing screw -2-  and pulling the line connection out of the cylinder head.
    G15823026Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum line

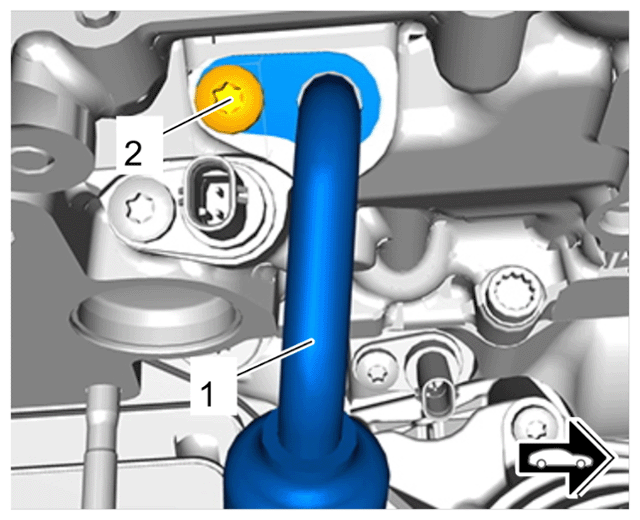

  5. Remove coolant line -1-  by unscrewing screw -2-  and pulling the line connection out of the cylinder head.
    G15823027Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant line on left cylinder bank

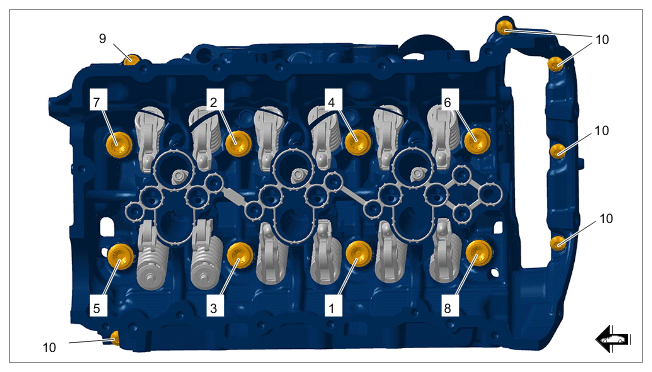

  6. Remove cylinder head.
    1. 6.1 Unscrew screws on cylinder head in the sequence -10 to 1-  .
    2. 6.2 Remove cylinder head.
    Fig 1: Cylinder Head Screws Loosening Sequence
    G15823028Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cylinder head on left cylinder bank
