Removing Solenoid Hydraulic Valve For Valve Lift Adjustment

WARNING: This page is about a different variant/trim than selected.

Information

The steps described here are shown on the right cylinder bank, but also apply for the opposite side.

  1. Lift up moulded part -3-  .
    1. 1.1 For better access, release and disconnect plug connections for ignition coils -1-  .
    2. 1.2 Release and disconnect electric plug connections for solenoid hydraulic valves for valve lift adjustment -2-  .
    3. 1.3 Lift up moulded part -3-  for easier access to the solenoid hydraulic valve for valve lift adjustment.

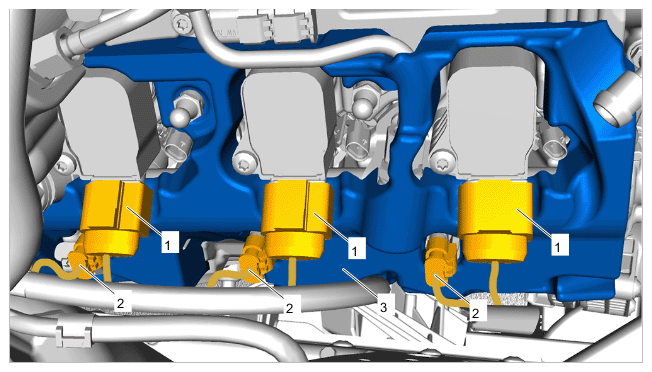

    G15822987Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moulded part

  2. Remove solenoid hydraulic valve for valve lift adjustment -2-  .
    1. 2.1 Unscrew screws on solenoid hydraulic valve for valve lift adjustment -1-  .
    2. 2.2 Remove solenoid hydraulic valve for valve lift adjustment -2-  .

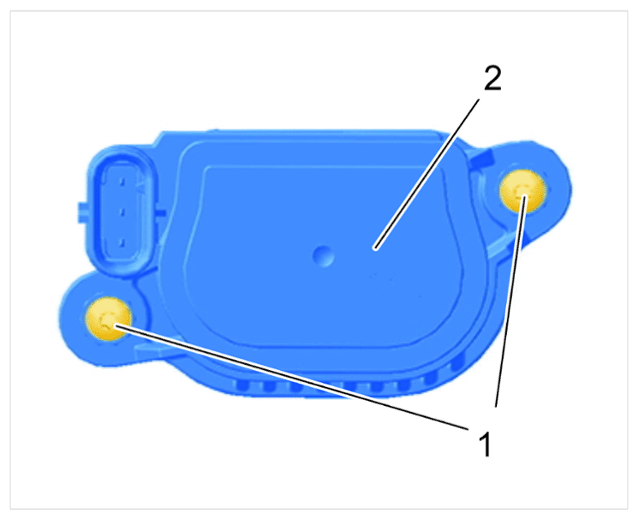

    G15822988Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Solenoid hydraulic valve for valve lift adjustment
