Removing Guide And TENSIONING Rails

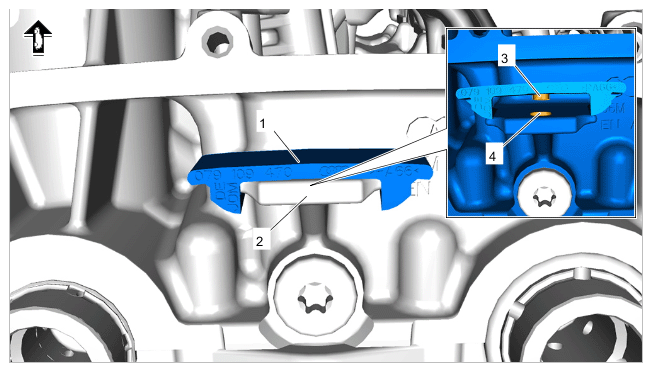

1. 1.1 Carefully insert a suitable tool between the slide -1-  and holder -2-  .
2. 1.2 Carefully lift the locking lug -3-  of the slide -1-  out of the recess -4-  in the holder -2-  .
3. 1.3 Pull off the slide -1-  by pulling it forward away from the cylinder head.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing slides

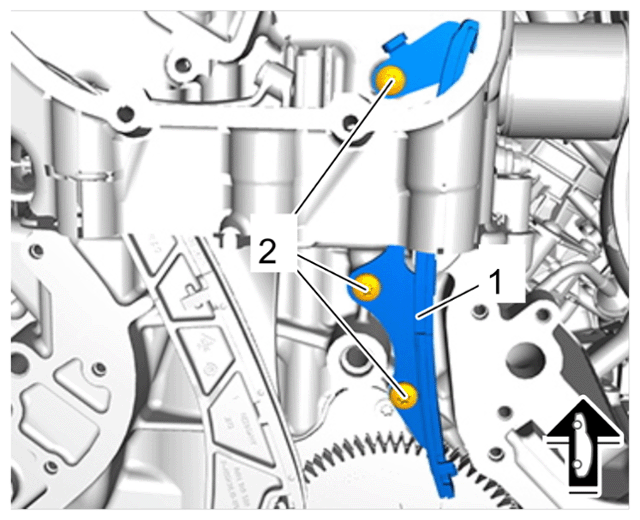

1. 2.1 Unscrew bearing pin on tensioning rail for right cylinder bank -2-  .
2. 2.2 Remove tensioning rail for right cylinder bank -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tensioning rail for right cylinder bank

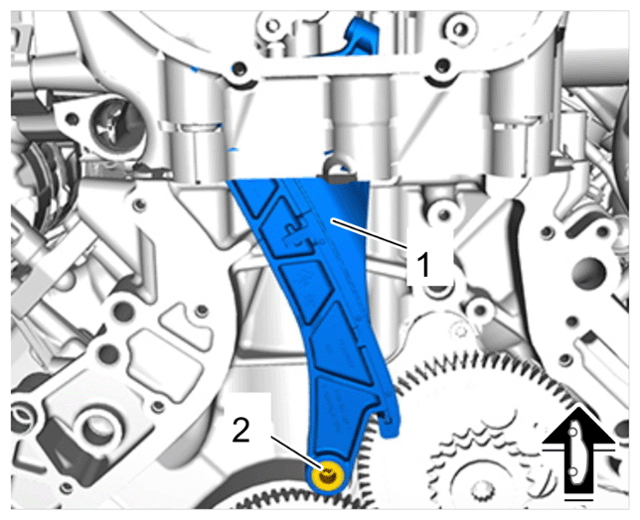

1. 3.1 Unscrew bearing pin on guide rail for right cylinder bank -2-  .
2. 3.2 Remove guide rail for right cylinder bank -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail for right cylinder bank

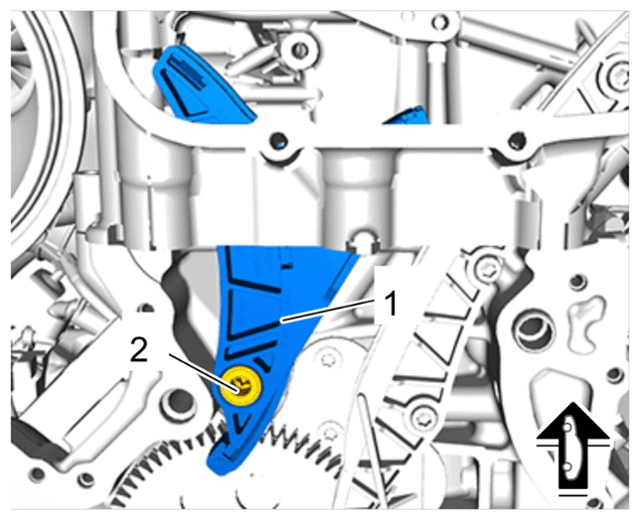

1. 4.1 Unscrew screws on guide rail for left cylinder bank -2-  .
2. 4.2 Remove guide rail for left cylinder bank -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide rail for left cylinder bank

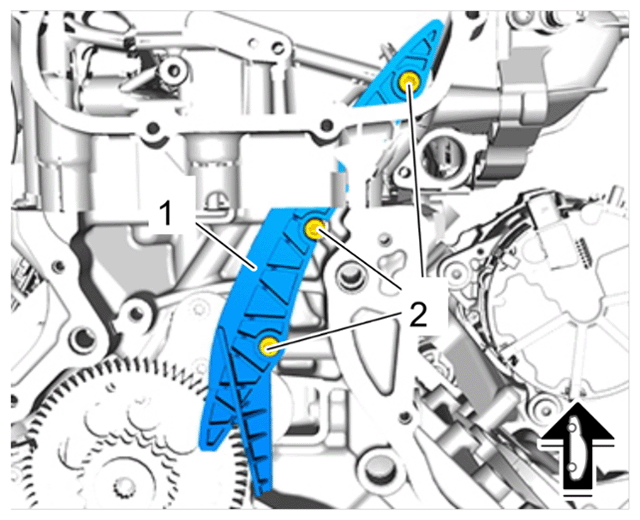

1. 5.1 Unscrew bearing pin on tensioning rail for left cylinder bank -2-  .
2. 5.2 Remove tensioning rail for left cylinder bank -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tensioning rail for left cylinder bank
