Remove Boost Pressure Control Cycle Valve

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • Let hot components cool down.
    • Wear personal protective gear.
  1. Remove boost pressure control cycle valve -3-  .

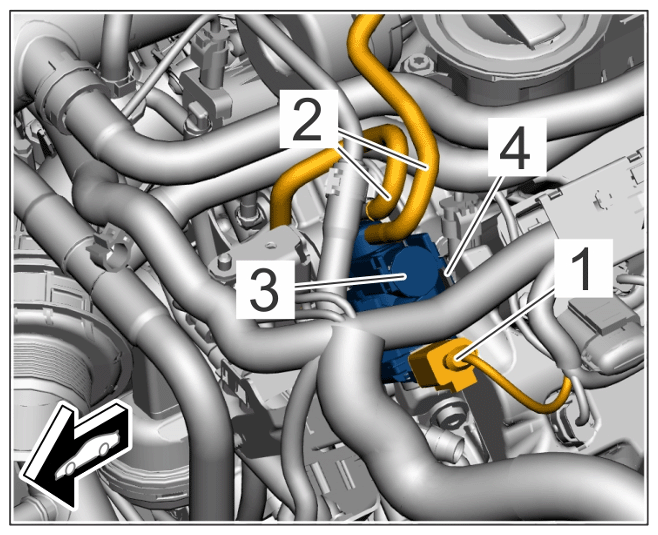

    G15877957Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Boost pressure control cycle valve

    1. 1.1 Expose boost pressure control cycle valve -3-  for cylinders 5-8.
    2. 1.2 Release electric plug connection -1-  and disconnect it.
    3. 1.3 Pull off vacuum hoses -2-  .
    4. 1.4 Pull out the boost pressure control cycle valve -3-  from the holder -4-  .
