Removing Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remote pressure sensor -1-  .

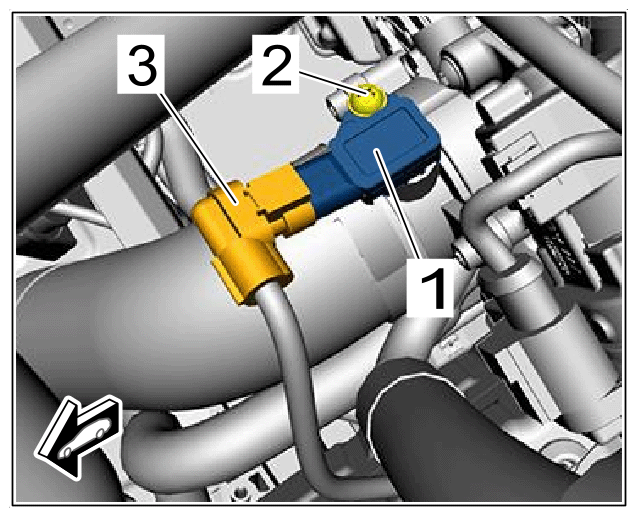

    G15877954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor

    1. 1.1 Release electric plug connection -3-  and disconnect it.
    2. 1.2 Remove screw -2-  .
    3. 1.3 Pull off pressure sensor -1-  .
