Installing Pressure Sensor
WARNING: This page is about a different variant/trim than selected.

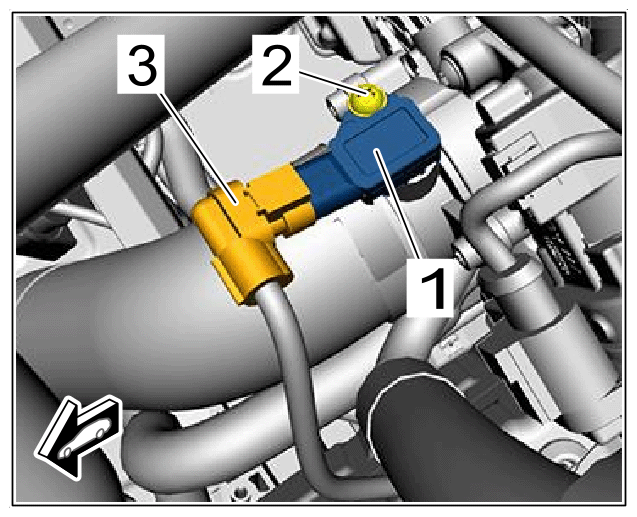

- Install pressure sensor -1-
.
- 1.1 Check O-ring for damage.
- 1.2 Fit pressure sensor -1-
in pressure pipe.
- 1.3 Tighten screw -2-
to > Tightening torque 5 Nm (3.5 ftlb.)
.
- 1.4 Connect electric connector -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pressure sensor
