Installing Pressure Pipe

1. 1.1 Connect electric connector for temperature sensor -2-  .
2. 1.2 Tighten screws -3-  to > Tightening torque 9 Nm (6.5 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

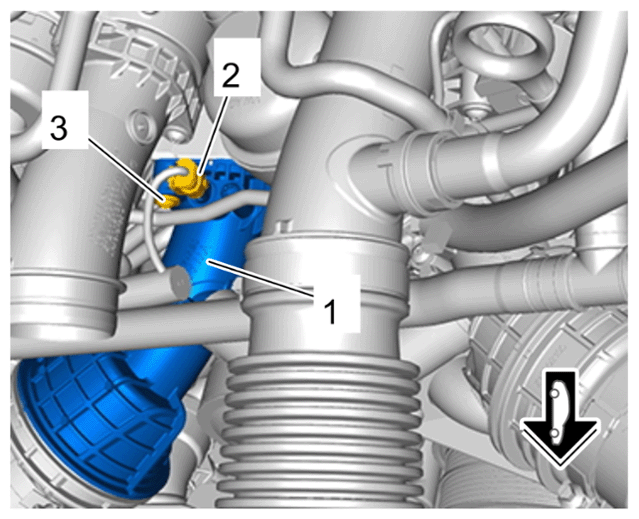

Pressure pipe on turbocharger

1. 2.1 Fit connecting hose -1-  on the pressure pipe and tighten screw-type clamp -4-  to > Tightening torque 3.5 Nm (2.5 ftlb.)  .
2. 2.2 Fit pressure hose -2-  on the pressure pipe and tighten screw-type clamp -5-  to > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

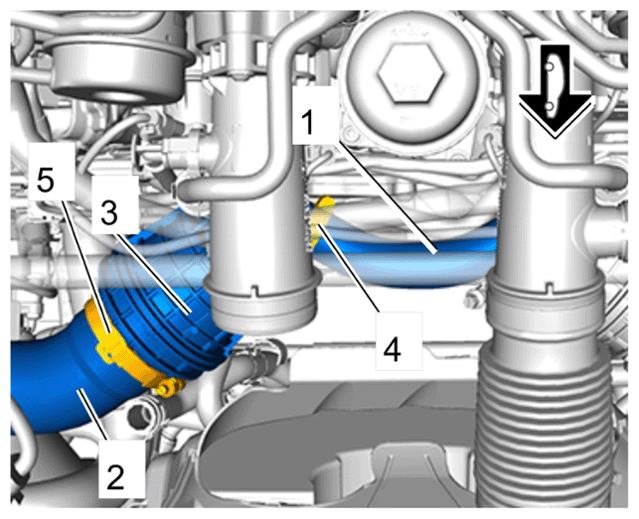

Pressure hose from turbocharger to charge-air cooler
