Removing Recirculating Air Valve

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove recirculating air valve -1-  .
    1. 1.1 Release and unplug electric plug connection -2-  .
    2. 1.2 Unscrew screws -3-  and remove recirculating air valve -1-  .

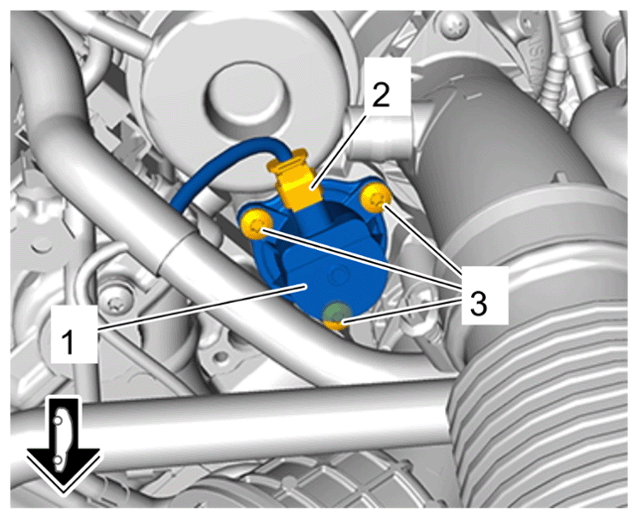

    G15877940Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Recirculating air valve, right
