Remove Moulded Hose

Information

The procedure 1ir removing and installing is described for one side as an example. The procedure for the other side is almost identical.

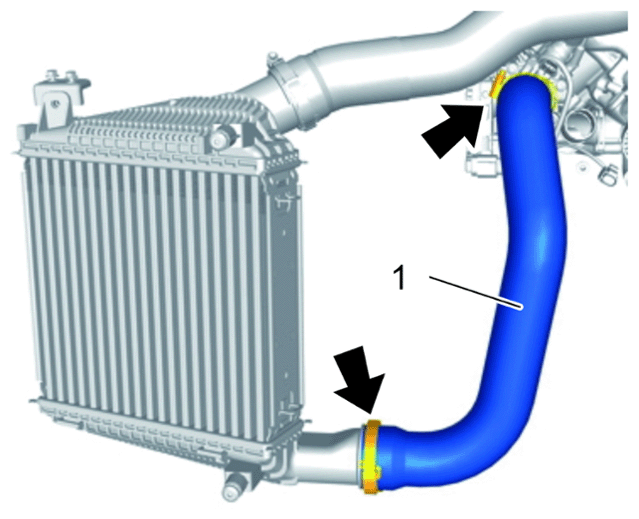

1. Remove moulded hose -1-  from charge air cooler to intake distributor.
   1. 1.1 Undo screw-type clamps -Arrows-  and remove -1-  moulded hose.
   2. 1.2 Remove moulded hose -1-  in a downward direction.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Moulded hose from turbocharger to intake distributor (right illustration)
