Installing Pressure Hose
WARNING: This page is about a different variant/trim than selected.

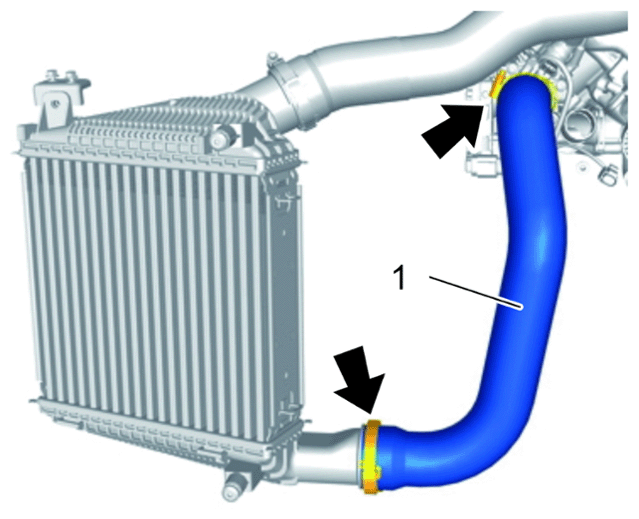

- Install moulded hose -1-
from charge-air cooler to intake distributor.
- 1.1 Tighten screw-type -Arrows-
clamps to > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Moulded hose from turbocharger to intake distributor (right illustration)
