Installing Turbocharger

Information

• For more information, see Porsche Spare Parts Information.

1. If the turbocharger is replaced, parts must also be added and retrofitted.

   Information

   When removing the turbocharger, the oil return line will be damaged and must always be replaced following removal.

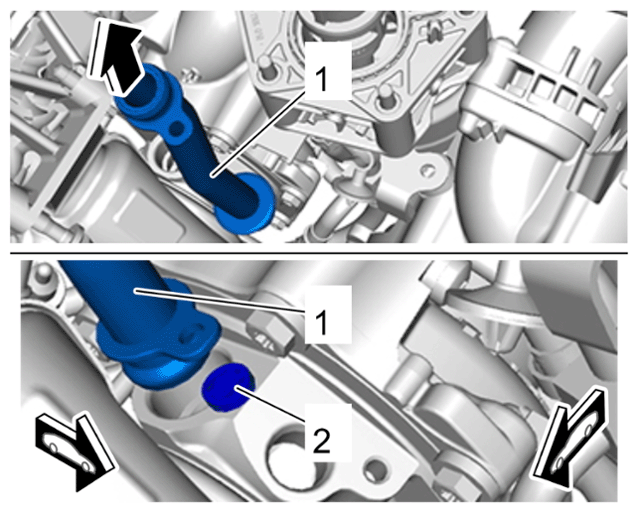

2. Replace oil return line -1-  for turbocharger.
   1. 2.1 Remove oil line -1-  from the crankcase.
   2. 2.2 Remove pin -2-  from the turbocharger.
   3. 2.3 Secure new oil line with pin on the turbocharger.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Replacing oil return line for turbocharger

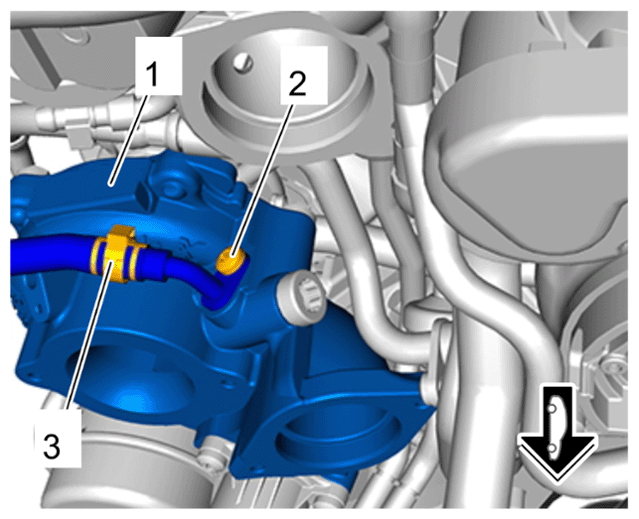

3. Install turbocharger -1-  .
   1. 3.1 Replace seal on cylinder head/turbocharger flange.
   2. 3.2 Replace O-rings on active carbon filter line.
   3. 3.3 Secure active carbon filter line -3-  and tighten screw -2-  to > Tightening torque 9 Nm (6.5 ftlb.)  .
   4. 3.4 Move turbocharger -1-  into installation position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Active carbon filter line on turbocharger

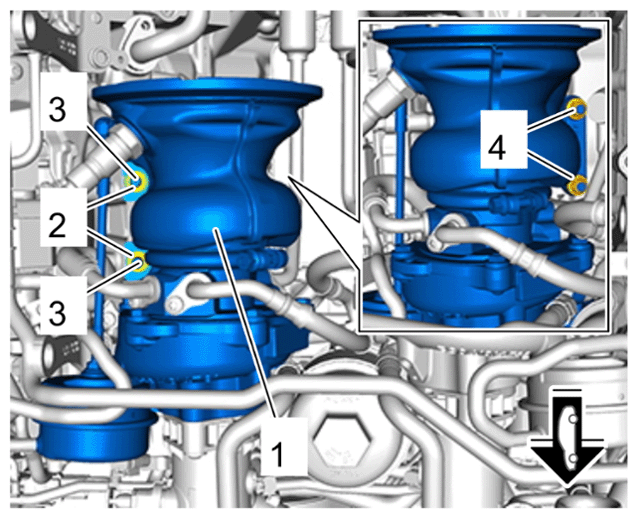

4. Secure turbocharger -1-  .
   1. 4.1 Screw in stud -3-  and tighten to > Tightening torque 15 Nm (11 ftlb.)  .
   2. 4.2 Tighten nuts -2-  to > Tightening torque 25 Nm (5 ftlb.)  .
   3. 4.3 Tighten nuts -4-  to > Tightening torque 30 Nm (22 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for right turbocharger

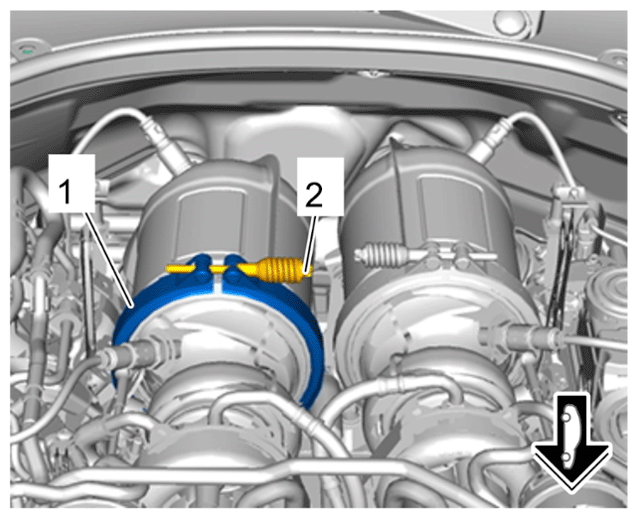

5. Fasten new V-band clamp -1-  .
   1. 5.1 Replace turbocharger/catalytic converter seal.
   2. 5.2 Tighten screw -2-  to > Tightening torque 7 Nm (5 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   V-band clamp on turbocharger/catalytic converter flange

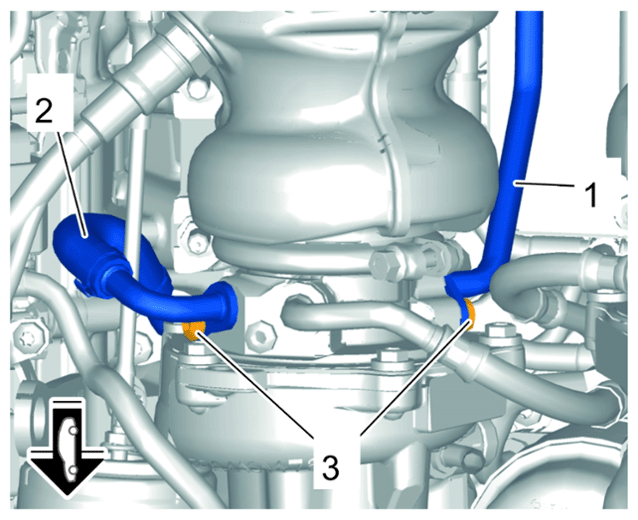

6. Secure coolant lines -1-  and -2-  on the turbocharger.
   1. 6.1 Replace O-rings.
   2. 6.2 Tighten screws -3-  to > Tightening torque 9 Nm (6.5 ftlb.)  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Coolant lines on right turbocharger

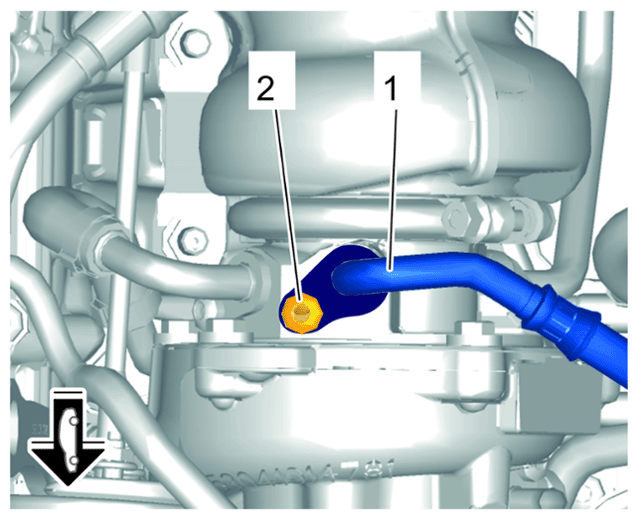

7. Secure oil supply line -1-  .
   1. 7.1 Replace O-rings.
   2. 7.2 Tighten screw -2-  to > Tightening torque 9 Nm (6.5 ftlb.)  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Oil line on right turbocharger

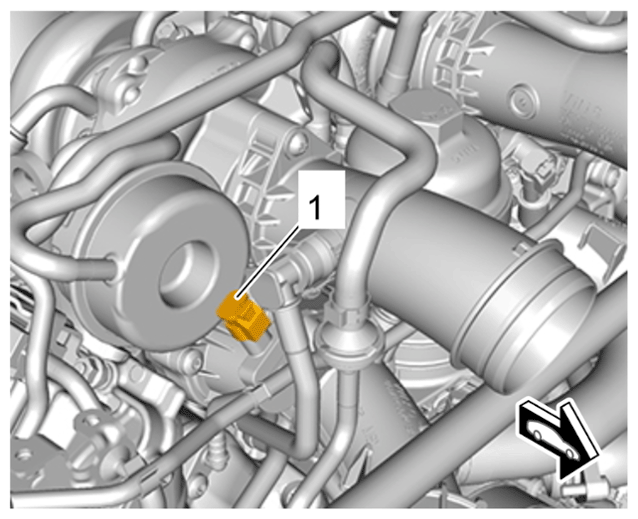

8. Connect electric connector -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric connector for turbocharger shut-off valve

9. Push vacuum hose onto the turbocharger vacuum unit.
