Removing Right Intake Pipe
WARNING: This page is about a different variant/trim than selected.
- Remove intake manifold -1-
.
- 1.1 Loosen screw-type clamp -2-
.
- 1.2 Release and pull off vacuum line -3-
.
- 1.3 Unscrew screws -4-
.
- 1.4 Remove intake pipe -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

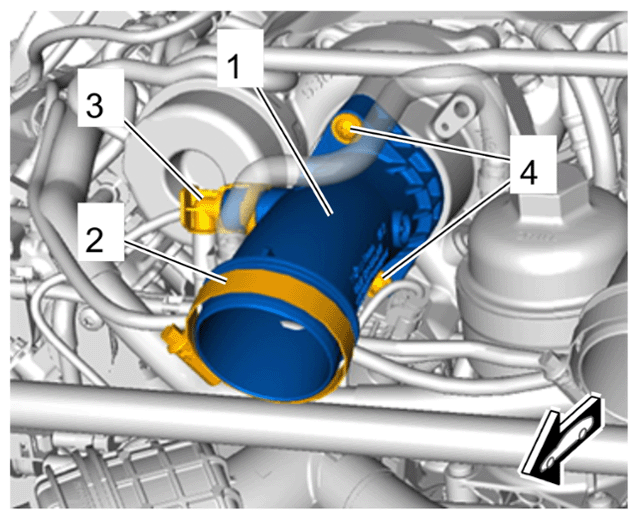

Right intake manifold
