Removing Left Intake Pipe

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect front wiring harness -1-  .
    1. 1.1 Loosen tie-wrap -2-  on the holder.
    2. 1.2 Loosen holder -3-  for wiring harness on the pressure pipe -4-  at the left and right.

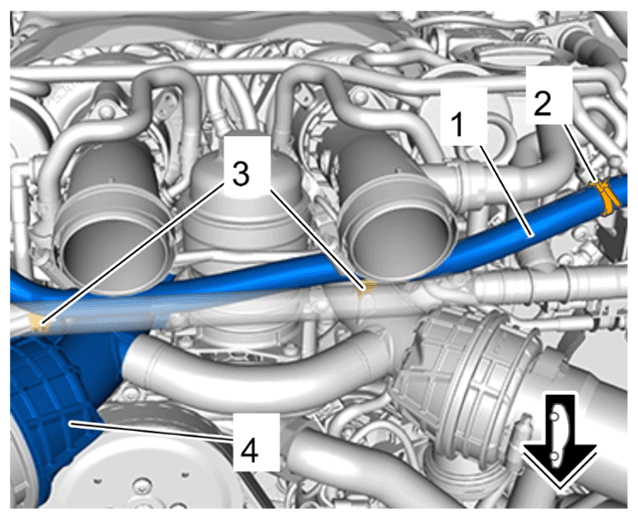

      G15877920Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front wiring harness

  2. Disconnect positive crankcase ventilation line -1-  .
    1. 2.1 Release and pull off line -1-  on the oil separator -2-  .
    2. 2.2 Loosen holder -3-  from the line.
    3. 2.3 Release and pull off line -1-  on the intake-air distributor at the left -3-  and right -4-  .

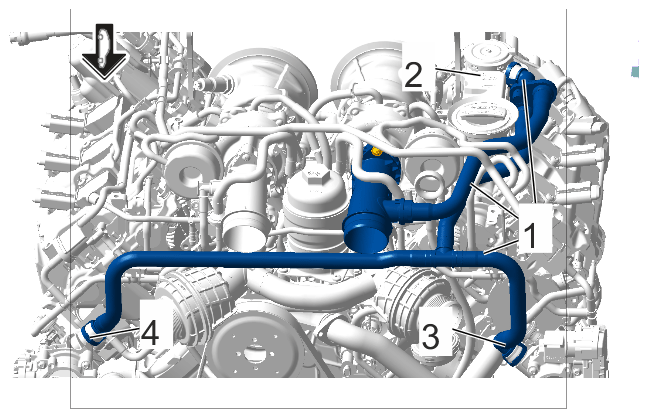

    G15877921Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive crankcase ventilation line

  3. Remove intake manifold -1-  .
    1. 3.1 Loosen screw-type clamp -2-  .
    2. 3.2 Unscrew screws -3-  .
    3. 3.3 Pull intake pipe -1-  with positive crankcase ventilation line -4-  under the wiring harness -5-  forward and remove it.

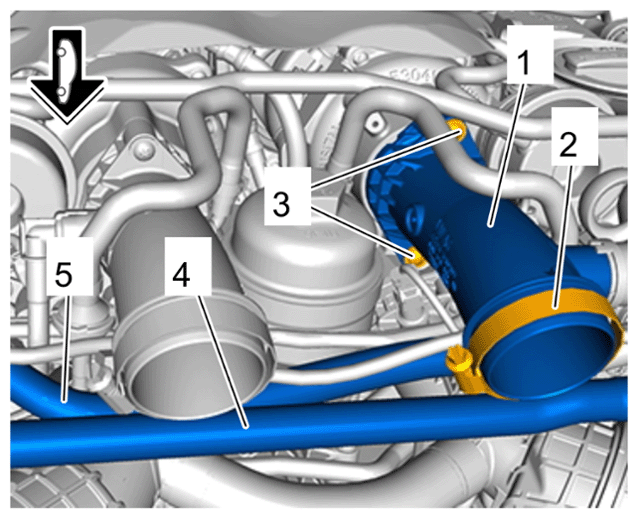

    G15877922Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left intake pipe
