Removing Front Air Guide At The Side (Behind Charge-Air Cooler)
WARNING: This page is about a different variant/trim than selected.
- Unclip line bracket -2-
and set electric wire harness -3-
aside.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

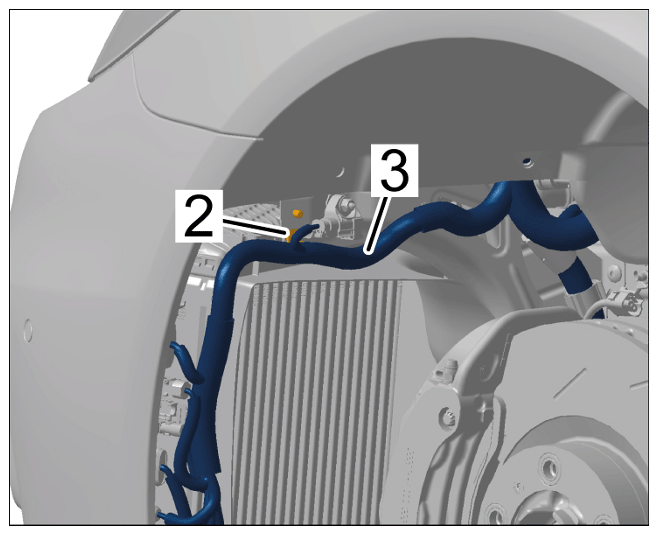

Loosening wire harness
- Release locking lugs -4-
, swivel front air guide at the side -1-
to the rear and disengage it at the bottom.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

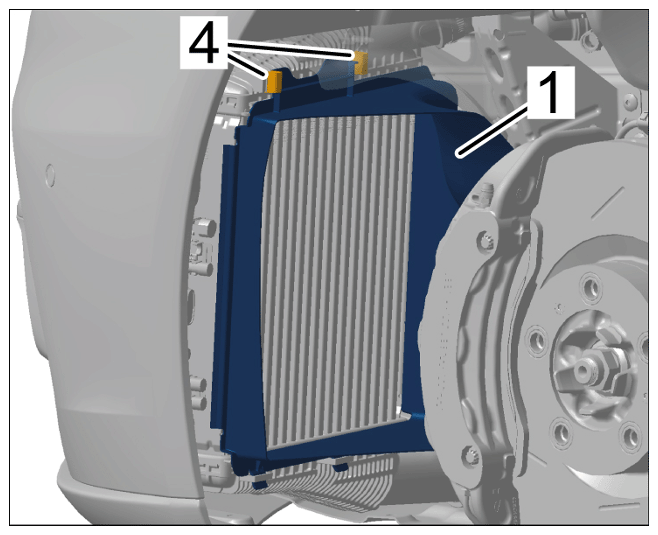

Removing front air guide at the side
