Replacing Double Clutch Transmission

Information

• Some repairs are shown only on one side of the vehicle.
• Some steps also have to be performed on the opposite side of the vehicle as well.

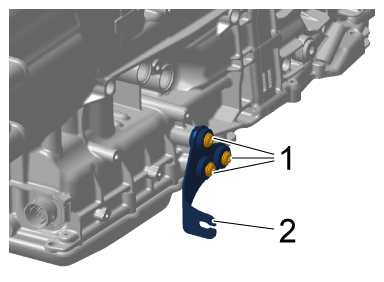

1. Unscrew screws -1-  and remove exhaust system holder -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Exhaust system holder

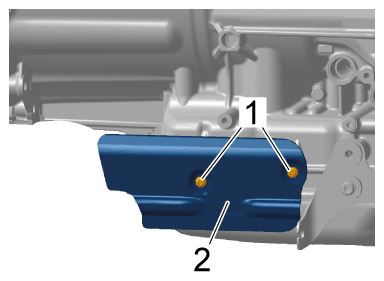

2. Unscrew screws -1-  and remove heat shield -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heat shield

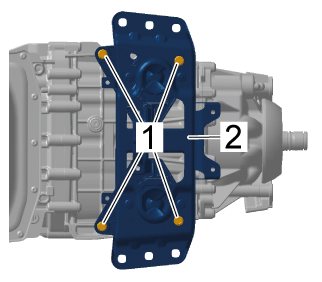

3. Unscrew screws -1-  and remove transmission support -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Transmission support

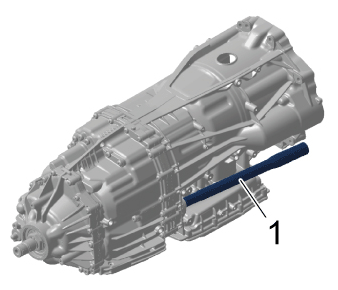

4. Pull off connecting shaft -1-  using > 9799 - impact puller  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting shaft

5. Assembly is performed in reverse order. Pay particular attention to the following:

   Tightening torque for screws securing transmission support to double clutch transmission: > Tightening torque 20 Nm (15 ftlb.)

   Tightening torque for screws securing heat shield to double clutch transmission: >

   Tightening torque for screws securing exhaust system holder to double clutch transmission: > Tightening torque 23 Nm (17 ftlb.)

   Tightening torque for screws securing vibration balancer to double clutch transmission: >
