Mounting PORSCHE Double-Clutch Transmission

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down.
  • Risk of squashing or crushing

    → Secure components to prevent them from falling down.

  1. Coat shaft teeth -Arrow-  with Longtime 3EP  .

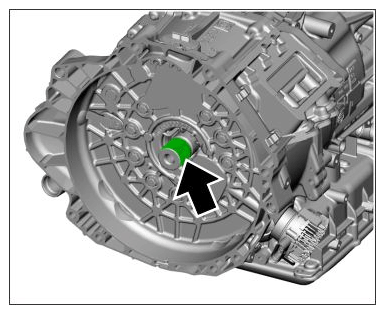

    G15888701Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Shaft teeth

    Suspend transmission using > VAS 6100 - workshop crane  and > 9932 - gearbox support-1-  and position it on the engine.

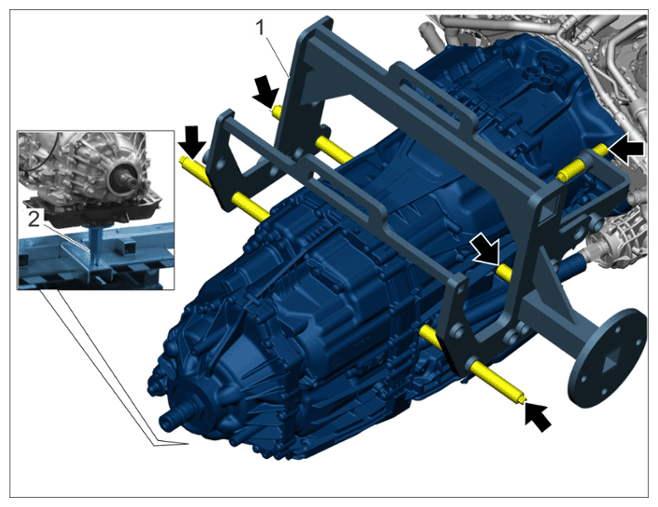

    G15888702Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Workshop crane with suspension device 9932

  2. Mount transmission on engine and screw in and tighten new screws. Observe the tightening sequence.

    Screws -1 to 5-  > Initial tightening 20 Nm (15 ftlb.)  + > Torque angle 60 (44 ftlb.) °

    Screws -6 to 9-  > Initial tightening 15 Nm (11 ftlb.)  + > Torque angle 105°

    Fig 1: Transmission Flange Screws Tightening Sequence

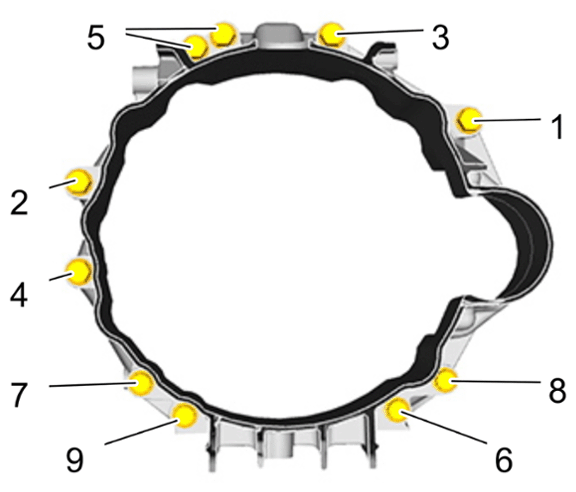

    G15888703Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tightening sequence for transmission flange

  3. Fit ATF line -2-  and connect cable plugs -4 and 5-  .
    1. 3.1 Remove stoppers.
    2. 3.2 Guide ATF lines -2-  into the transmission -6-  and fit and tighten screw -1-  .

      > Tightening torque 20 Nm (15 ftlb.)

    3. 3.3 Fit and tighten screw -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

    4. 3.4 Connect and secure cable plugs -4 and 5-  on the transmission -6-  on both sides.

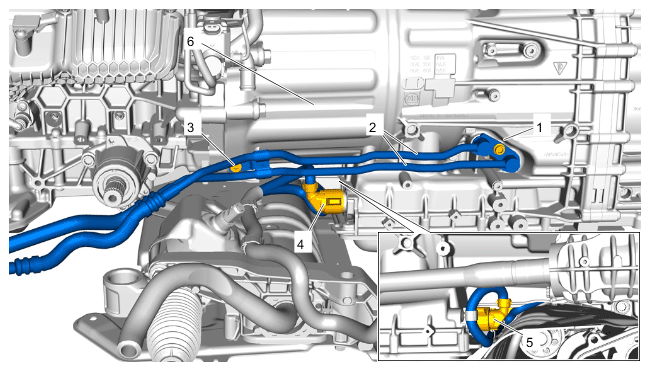

    G15888704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    ATF line and transmission connectors

  4. Install connecting shaft.
    1. 4.1 Replace circlip -1-  and O-ring -2-  on input flange on four wheel final drive.
      1. 4.1.1 Coat input flange -Arrow-  on final drive, four-wheel drive lightly with Longtime 3EP  .

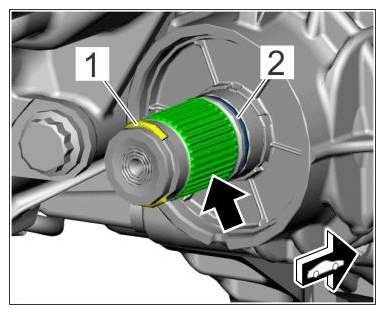

      G15888705Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Circlip on all-wheel flange

    2. 4.2 Install connecting shaft -3-  .

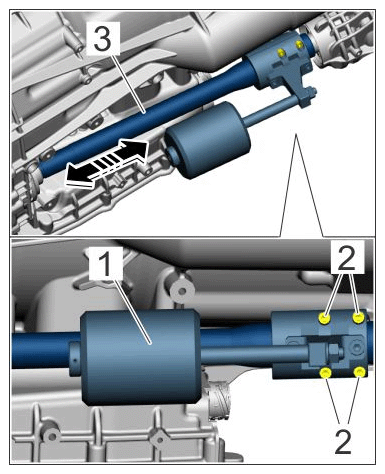

      G15888706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Using impact puller 9799

      1. 4.2.1 Fit connecting shaft -3-  on the all-wheel final drive and -1-  install -Arrow-  using > 9799 - impact puller  .
    3. 4.3 Check installation position of the connecting shaft -1-  . The connecting shaft is fitted correctly if the groove -2-  is visible.

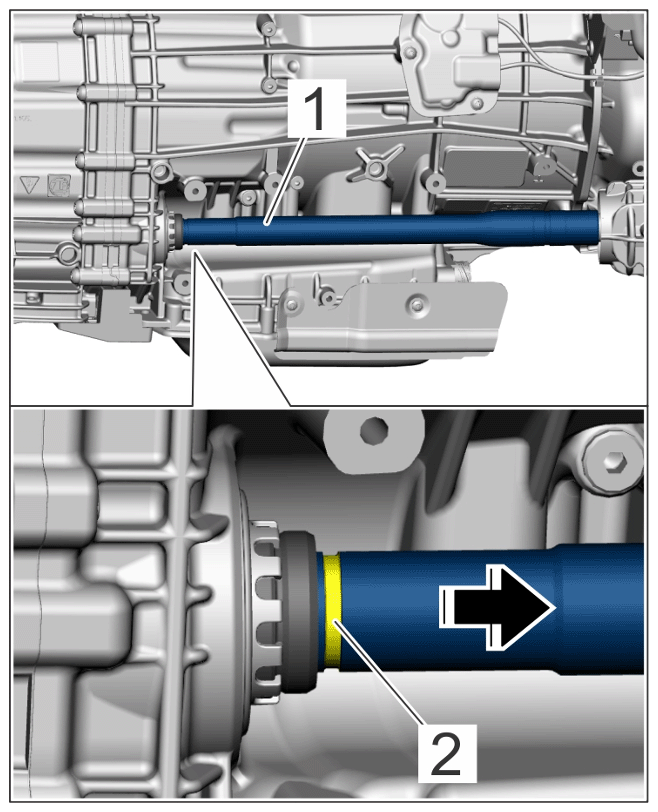

      G15888707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Groove in connecting shaft

    4. 4.4 Remove > 9799 - impact puller  from the connecting shaft.
  5. Secure equip potential bonding line -1-  on the electric machine at the right.
    1. 5.1 Fit and tighten screw -2-  .

      > Tightening torque 20 Nm (15 ftlb.)

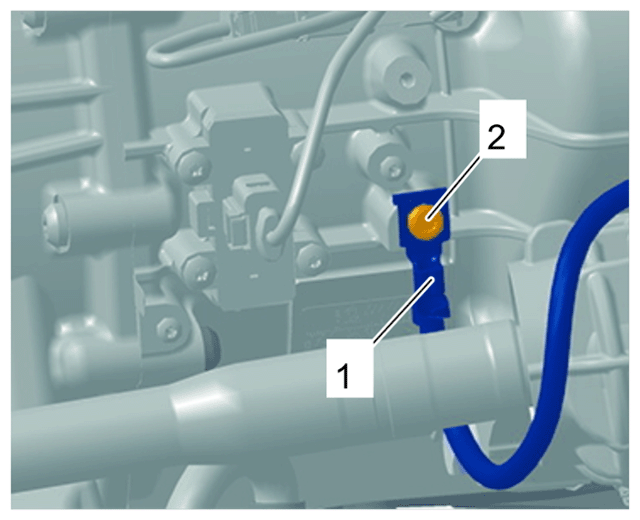

    G15888708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Potential equalization on elect. machine

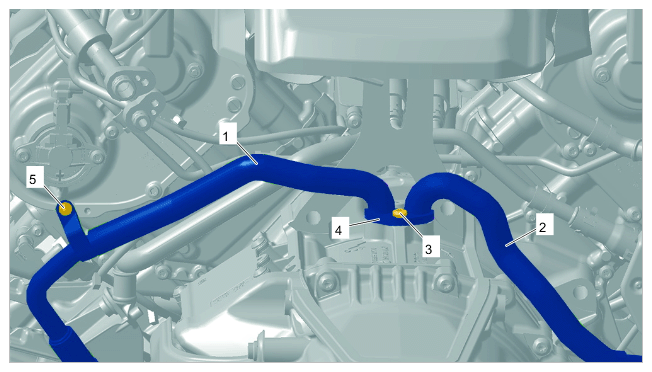

  6. Secure coolant lines -1-  and -2-  at the top of the electric machine.
    1. 6.1 Insert coolant lines -1-  and -2-  into the electric machine.
    2. 6.2 Position holder -4-  and fit and tighten screw -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

    3. 6.3 Fit and tighten screw -5-  .

      > Tightening torque 8 Nm (6 ftlb.)

    G15888709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant lines on electric machine

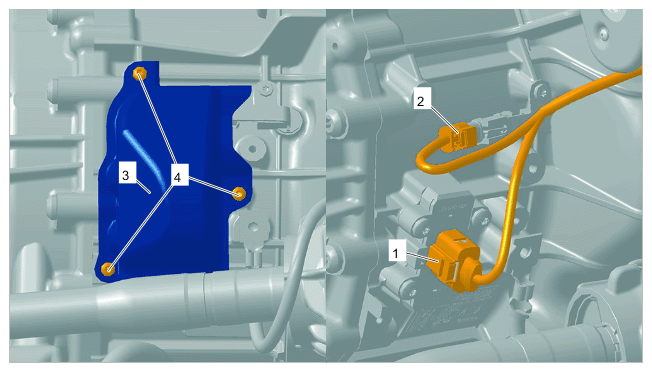

  7. Plug in electric connectors for rotor position sensor -1-  and temperature sensor -2-  .
    1. 7.1 Position heat shield -4-  and fit and tighten screws -3-  .

      > Tightening torque 8 Nm (6 ftlb.)

    G15888710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rotor position sensor and temperature sensor for elect. machine

  8. Secure high-voltage lines at the electric machine.

    > 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO ELECT. MACHINE
