Technical Values

WARNING: This page is about a different variant/trim than selected.
*Location *Description *Type *Basic values *Tolerance 1 *Tolerance 2

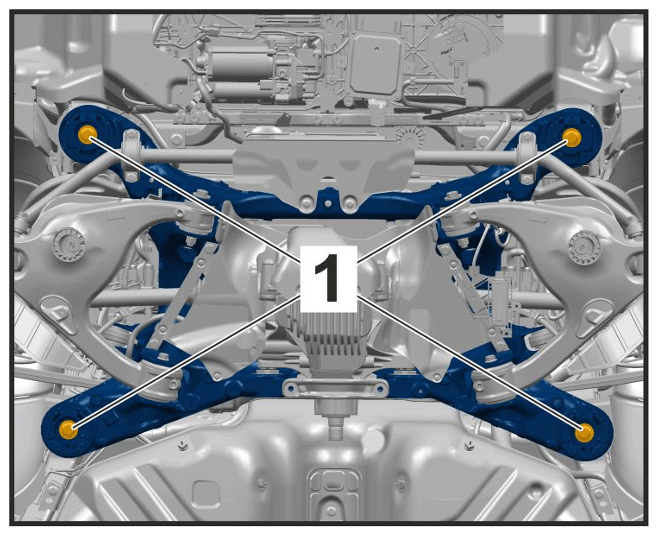

Rear axle housing to body Item 1: Hexagon head bolt M14 x 1.5 x 145/Always replace bolts following removal! Initial tightening 130 Nm (95.9 ftlb.)
G15860129Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear axle housing
Rear axle housing to body Item 1: Hexagon-head bolt M14 x 1.5 x 145/Always replace bolts after removal! Final tightening torque angle + 180°
G15860130Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear axle housing
Rear axle housing strut to rear axle housing Item 2: Hexagon-head bolt M10 x 35/Always replace bolts after removal! Initial tightening 50 Nm (36.9 ftlb.)
G15860131Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear axle housing struts

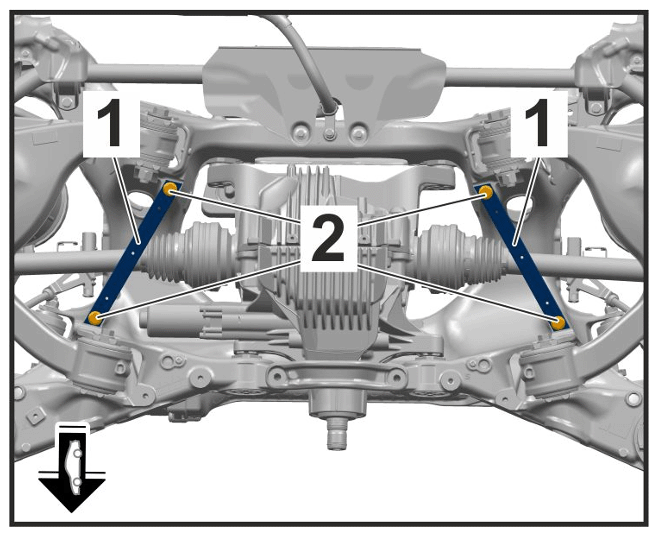

Rear axle housing strut to rear axle housing Item 2: Hexagon-head bolt M10 x 35/Always replace bolts after removal! Final tightening torque angle + 90°
G15860132Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear axle housing struts
Drive shaft protective plate to rear axle housing (right with TPM control unit holder) Item 2: Hexagon roundhead bolt M6 x 12 Tightening torque 8 Nm (5.9 ftlb.)
G15860133Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for protective plate for drive shaft

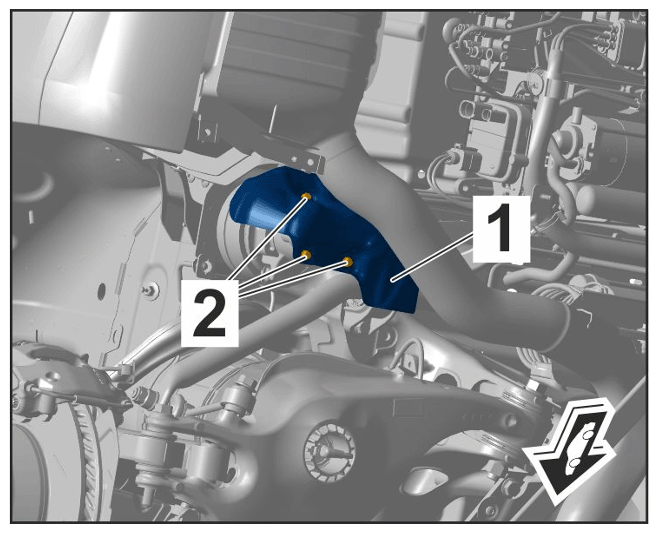

Bearing protective plate to rear axle housing Item 2: Hexagon-head bolt M5 Tightening torque 7 Nm (5.2 ftlb.)
G15860134Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Protective plate mount

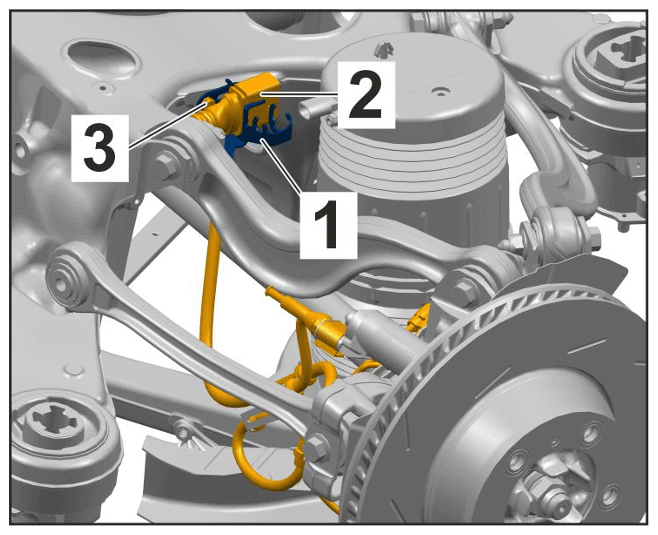

Cable holder to rear axle housing Item 3: Hexagon-head bolt M6 x 16 Tightening torque 8 Nm (5.9 ftlb.)
G15860135Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable holder mounting
Balancer to rear axle housing Hexagon-head bolt, M10 x 30 Tightening torque 55 Nm (40.6 ftlb.)
Final drive to rear axle housing Item 2: Hexagon-head bolt M12 x 95 Initial tightening 60 Nm (44.3 ftlb.)
G15860136Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Final drive mounting

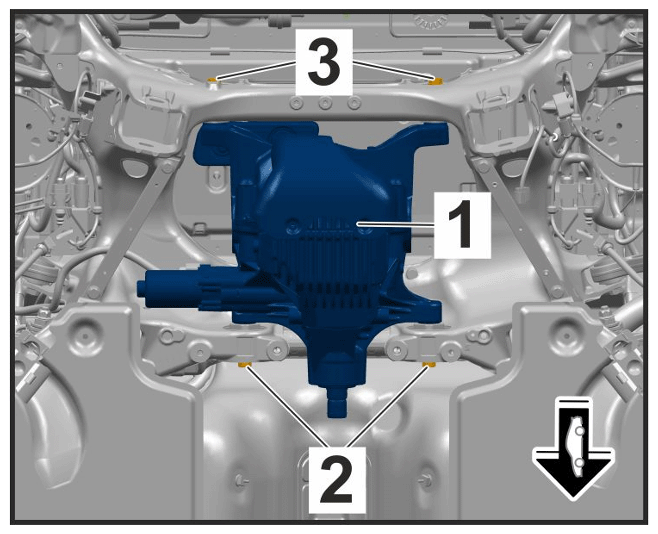

Final drive to rear axle housing Item 2: Hexagon-head bolt M12 x 95 Final tightening torque angle + 90°
G15860137Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Final drive mounting

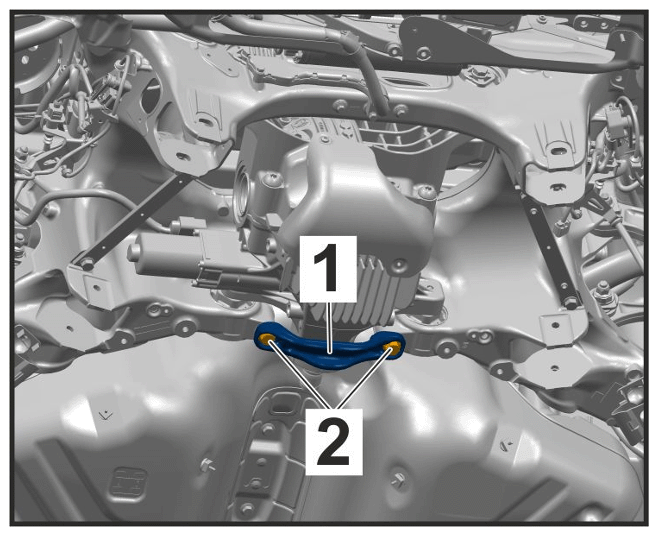

Support to rear axle housing Item 2: Hexagon-head bolt M12 x 40/Always replace bolts after removal! Initial tightening 70 Nm (51.6 ftlb.)
G15860138Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for support
Support to rear axle housing Item 2: Hexagon-head bolt M12 x 40/Always replace bolts after removal! Final tightening torque angle + 90°
G15860139Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for support
Rear axle strut to rear axle housing mount Item 2: Hexagon-head bolt M8 x 25 Tightening torque 20 Nm (14.8 ftlb.)
G15860140Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear-axle strut

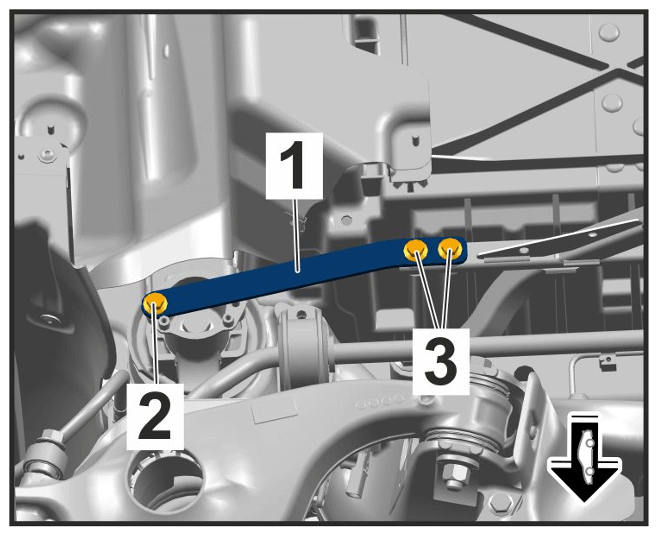

Rear axle strut to body strut Item 3: Hexagon-head bolt M8 x 25 Tightening torque 20 Nm (14.8 ftlb.)
G15860141Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear-axle strut

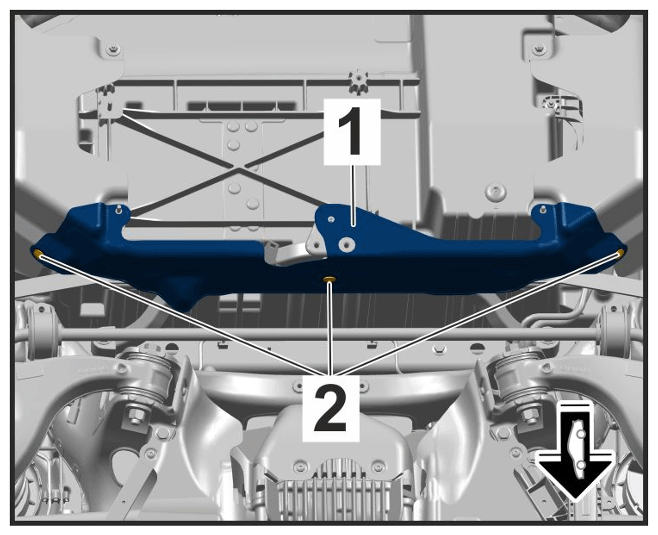

Heat insulation in boot pan Item 2: Internal hexagon roundhead bolt Tightening torque 2.5 Nm (1.8 ftlb.)
G15860142Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for heat insulation in luggage compartment pan

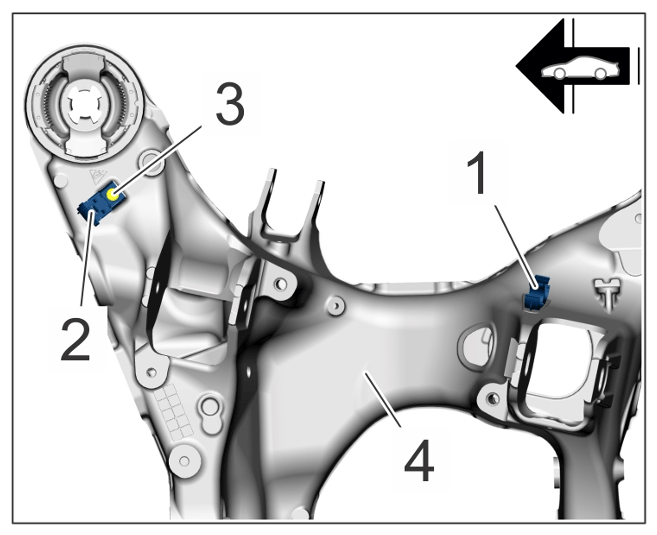

Holder screw to rear axle housing Item 3 Tightening torque 8 Nm (5.9 ftlb.)
G15860143Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear axle housing holder

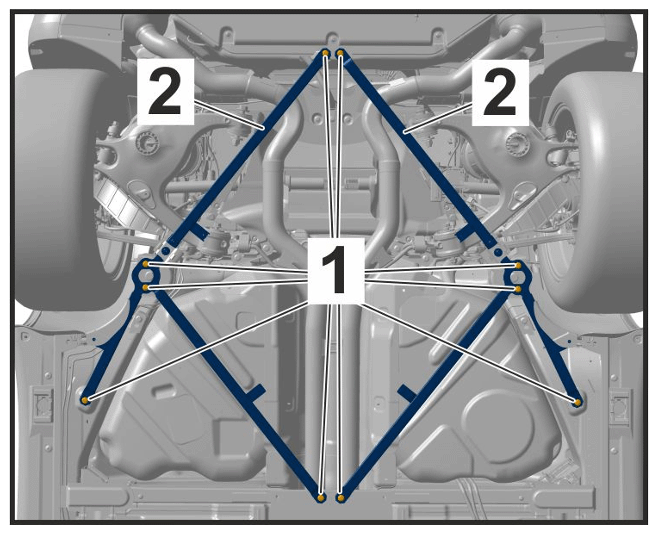

Strut to rear end/body Item 1: Internal serration countersunk screw, M8 x 20 Tightening torque 25 Nm
G15860144Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for rear-end struts
rear-axle strut to rear strut Item 2: M8 x 25 screw Tightening torque 20 Nm
rear strut to body Item 3: M15 x 85 screw Tightening torque 70 Nm

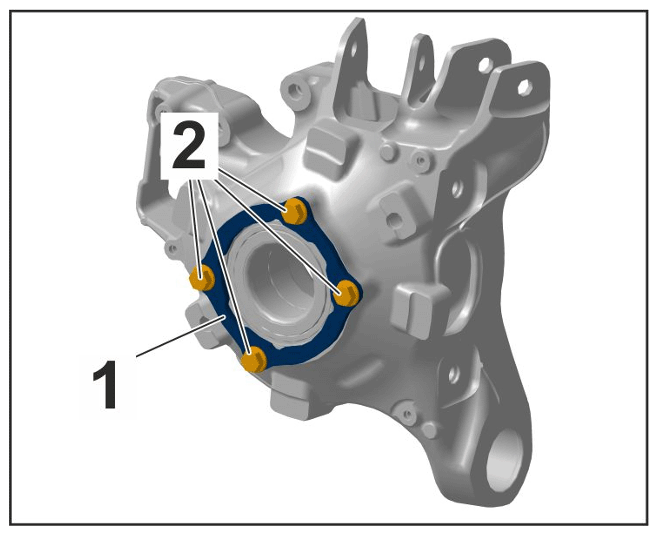

Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal! Initial tightening 20 Nm (15 ftlb.)
G15860145Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing
Mounting plate for wheel bearing to wheel bearing housing Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal! Final tightening torque angle + 90°
G15860146Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting plate on wheel bearing housing

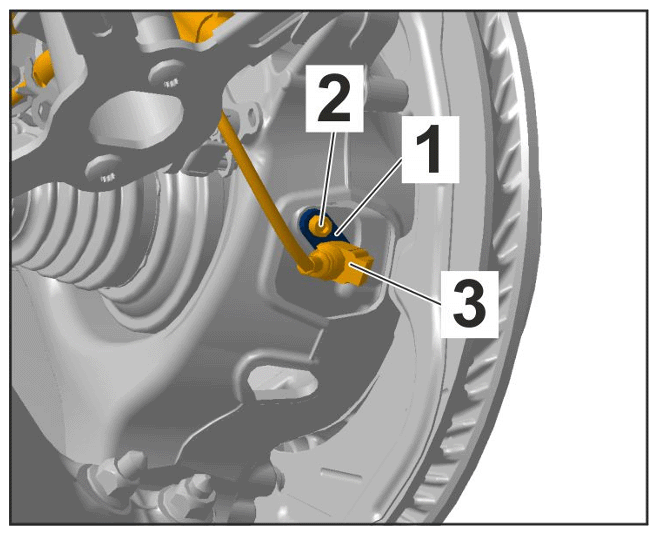

Speed sensor to wheel bearing housing Item 2: Cheese head bolt, M6 x 16 Tightening torque 8 Nm (6 ftlb.)
G15860147Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Speed sensor mounting
Cable holder to wheel bearing housing Item 2, top: Hexagon-head bolt, M6 x 16 Tightening torque 8 Nm (6 ftlb.)
G15860148Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable holder mounting

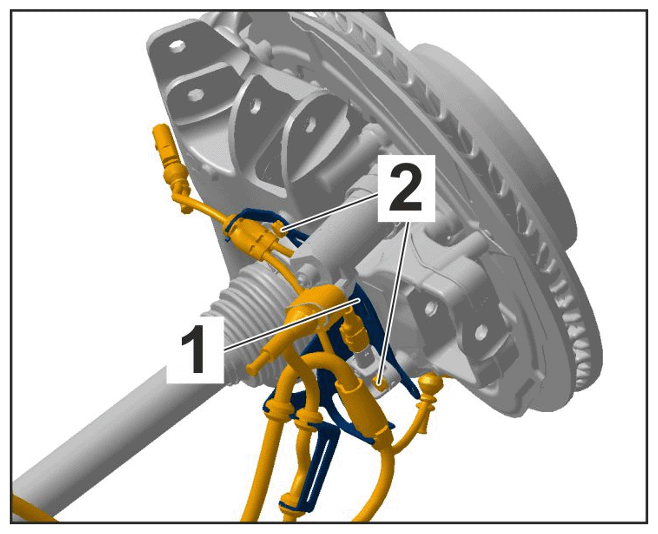

Sensor for body with cable holder to wheel bearing housing Item 2, bottom: Hexagon-head bolt, M6 x 25 Tightening torque 8 Nm (6 ftlb.)
G15860149Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable holder mounting
Trailing arm to rear axle housing, front Hexagon-head bolt, M12 x 1.5 x 120 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Trailing arm to rear axle housing, front Hexagon-head bolt, M12 x 1.5 x 120 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 180°
Trailing arm to rear axle housing, rear (camber eccentric adjuster) Eccentric screw, M14 x 1.5 with eccentric washer and hexagon nut Tightening torque 160 Nm (118 ftlb.)
Trailing arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 105 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Trailing arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 105 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 180°

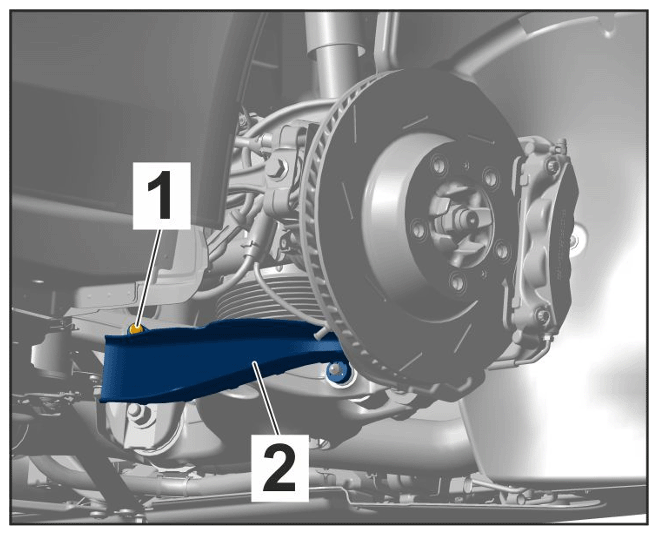

Control arm spoiler to trailing arm Item 1: Hexagon-head bolt, M6 x 25 Tightening torque 8 Nm (6 ftlb.)
G15860150Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Control arm spoiler on trailing arm
Tie rod to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 85/always replace bolts following removal! Initial tightening 70 Nm (52 ftlb.)
Tie rod to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 85/always replace bolts following removal! Final tightening torque angle + 90°
Tie rod to rear axle housing/servo motor for rear axle steering (toe eccentric adjuster) Eccentric screw, M12 x 1.5 with eccentric washer and hexagon nut Tightening torque 100 Nm (74 ftlb.)
Front upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Front upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 90°
Front upper control arm to rear axle housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Front upper control arm to rear axle housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 90°
Rear upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Rear upper control arm to wheel bearing housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 90°
Rear upper control arm to rear axle housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Initial tightening 70 Nm (52 ftlb.)
Rear upper control arm to rear axle housing Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal! Final tightening torque angle + 90°

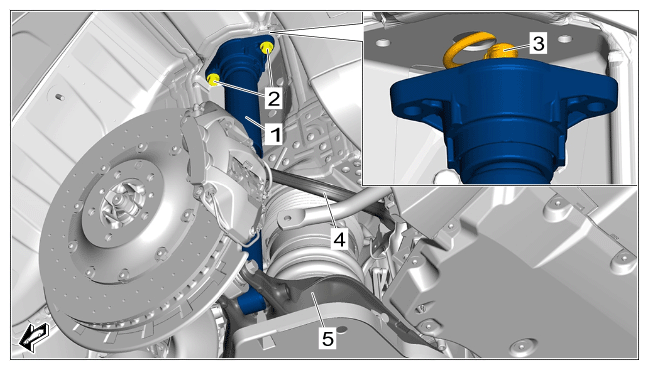

Shock absorber/spring damper to body Item 2: Hexagon-head bolt M10 x 42 Tightening torque 50 Nm (36.9 ftlb.)
G15860151Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear shock absorber/spring damper

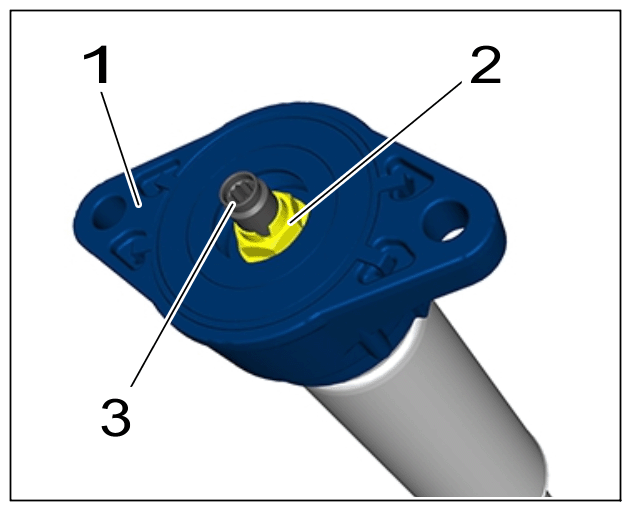

Supporting mount to piston rod Item 2: Hexagon nut M14 x 1.5 Tightening torque 53 Nm (39.1 ftlb.)
G15860152Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nut on piston rod
Shock absorber/spring damper with connecting rod to axle control arm Items 2 and 3: Hexagon nut and hexagonhead bolt M12 x 1.5 x 170/always replace bolt and nut after removal! Initial tightening 70 Nm (51.6 ftlb.)
G15860153Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear shock absorber/spring damper - threading on lower axle control arm

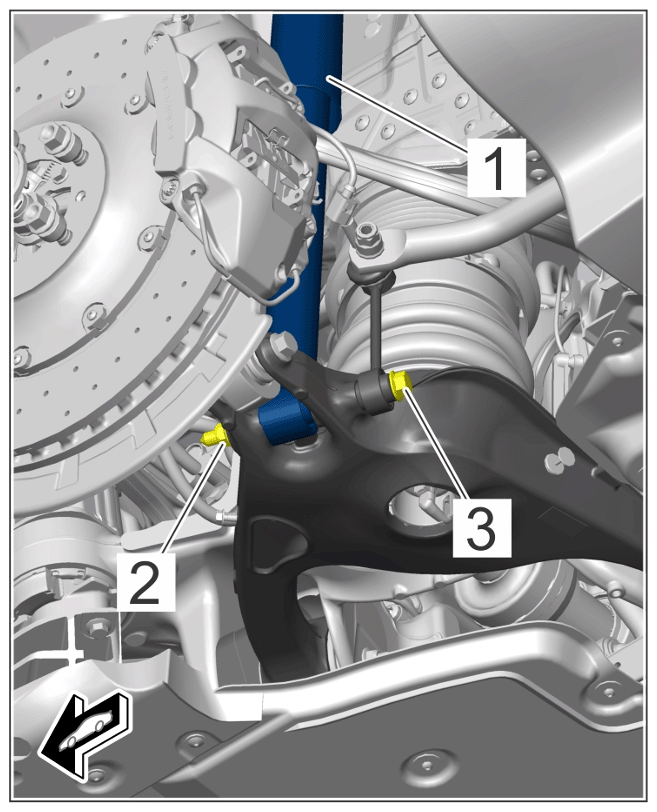

Shock absorber/spring damper with connecting rod to axle control arm Items 2 and 3: Hexagon nut and hexagonhead bolt M12 x 1.5 x 170/always replace bolt and nut after removal! Final tightening torque angle + 180°
G15860154Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear shock absorber/spring damper - threading on lower axle control arm

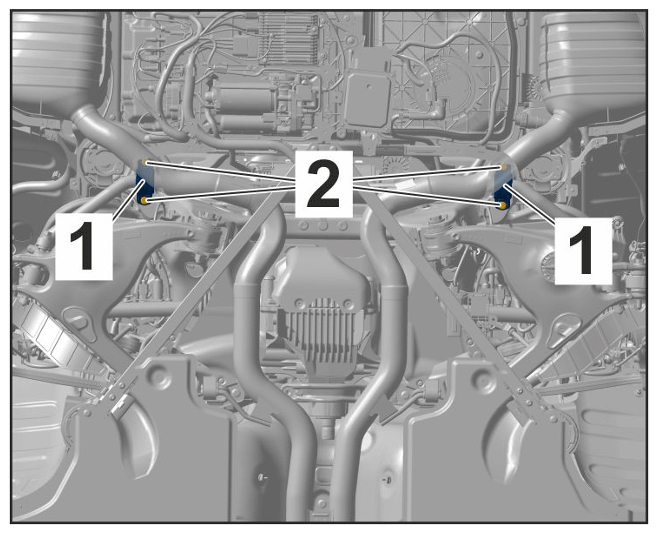

Anti-roll bar mount to rear axle housing Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal! Initial tightening 20 Nm (15 ftlb.)
G15860155Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for anti-roll bar mount
Anti-roll bar mount to rear axle housing Item 2: Hexagon-head bolt, M8 x 35/always replace bolts following removal! Final tightening torque angle + 90°
G15860156Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for anti-roll bar mount
Connecting link to anti-roll bar (conventional) Item 3: Hexagon nut, M10/always replace nut following removal! Initial tightening 30 Nm (22 ftlb.)
G15860157Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link
Connecting link to anti-roll bar (conventional) Item 3: Hexagon nut, M10/always replace nut following removal! Final tightening torque angle + 45°
G15860158Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link

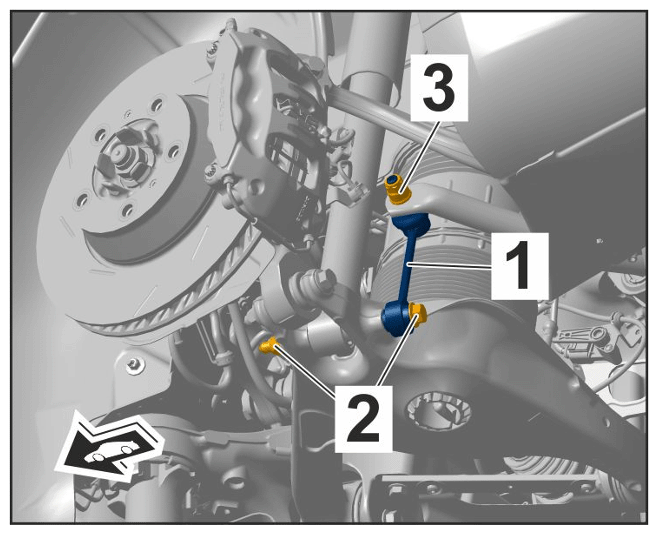

Connecting link to anti-roll bar (PDCC) Item 3: Hexagon nut, M12/always replace nut following removal! Initial tightening 50 Nm (37 ftlb.)
G15860159Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link
Connecting link to anti-roll bar (PDCC) Item 3: Hexagon nut, M12/always replace nut following removal! Final tightening torque angle + 45°
G15860160Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link

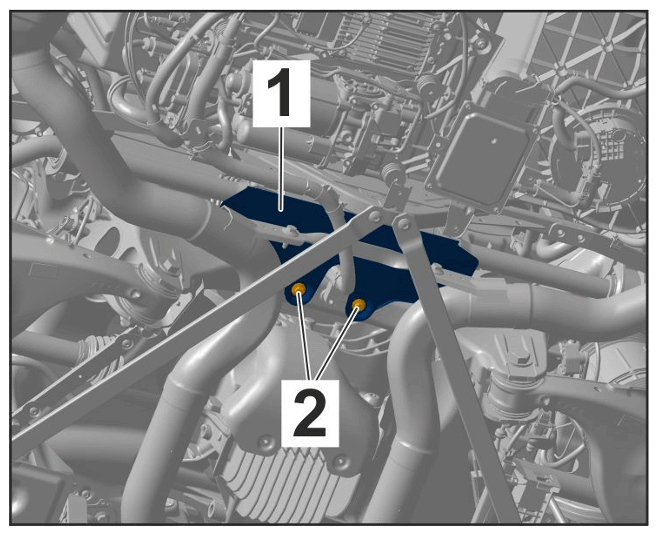

Protective plate on PDCC actuator to rear axle housing Item 2: Hexagon-head bolt, M6 x 25 Tightening torque 8 Nm (6 ftlb.)
G15860161Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for protective plate on PDCC actuator

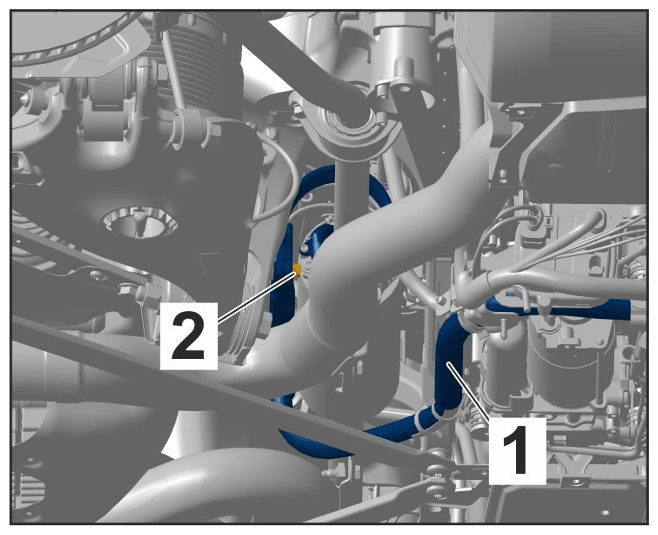

PDCC wire harness to rear axle housing Item 2: Hexagon-head bolt, M6 x 30 Tightening torque 8 Nm (6 ftlb.)
G15860162Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for PDCC Sport wire harness on rear axle housing

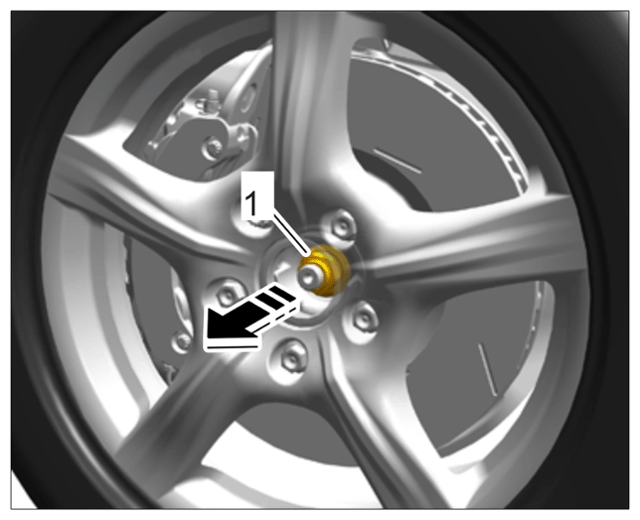

Drive shaft to wheel hub Item 1: Hexagon nut, M22 x 1.5/always replace nut following removal! Tightening torque 460 Nm (340 ftlb.)
G15860163Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Axle nut

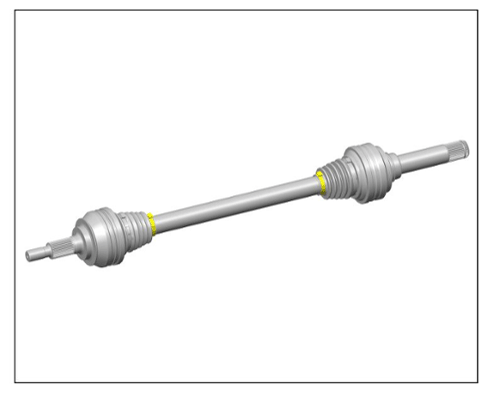

Small hose clamp Tighten using tool V.A.G 1682A Tightening torque 8 Nm (6 ftlb.)
G15860164Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Small hose clamp
Large hose clamp Tighten using tool V.A.G 1682A Tightening torque 13.5 Nm (10 ftlb.)
G15860165Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Large hose clamp
