Tightening Torques For PDCC (EAWS) Control Unit

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Front PDCC (EAWS) control unit to holder	Item 3: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

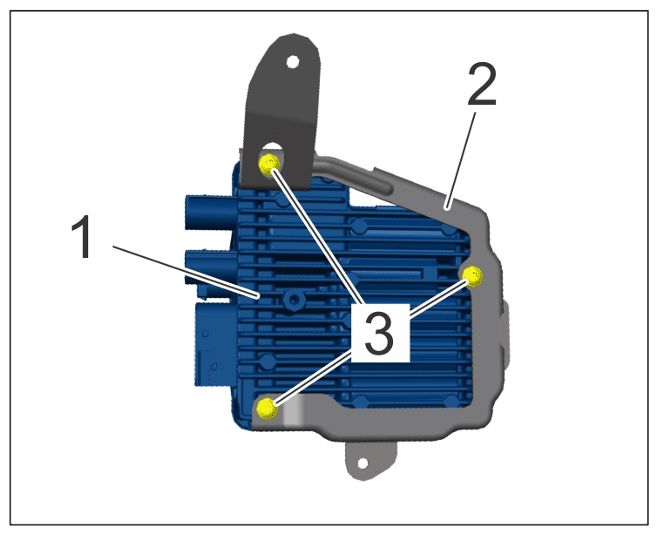

Courtesy of PORSCHE CARS NORTH AMERICA, INC. PDCC (EAWS) control unit to holder
Ground line to front PDCC (EAWS) control unit	Item 1: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

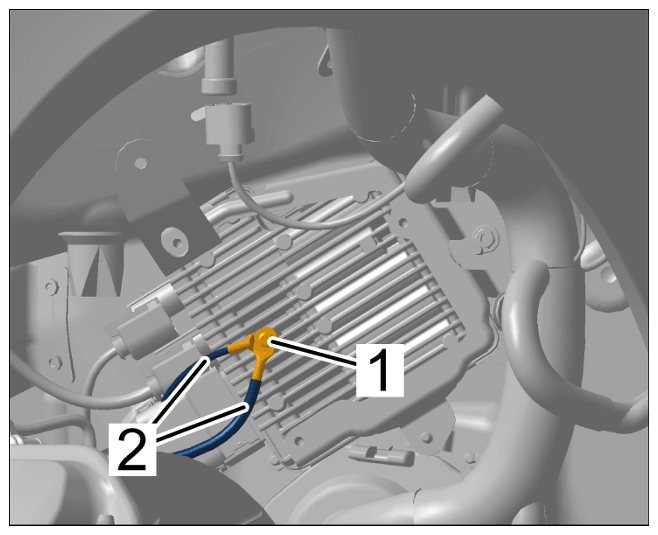

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting ground lines
Front PDCC (EAWS) control unit holder to body	Item 4: Hexagon-head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder
Front PDCC (EAWS) control unit holder to body	Plastic nut	Tightening torque	2.5 Nm (1.75 ftlb.)
Front PDCC (EAWS) control unit holder to adapter holder and body	Item 3: Hexagon nut, M6	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder
Adapter holder to body	Item 2: Hexagon nut	Tightening torque	8 Nm (6 ftlb.)

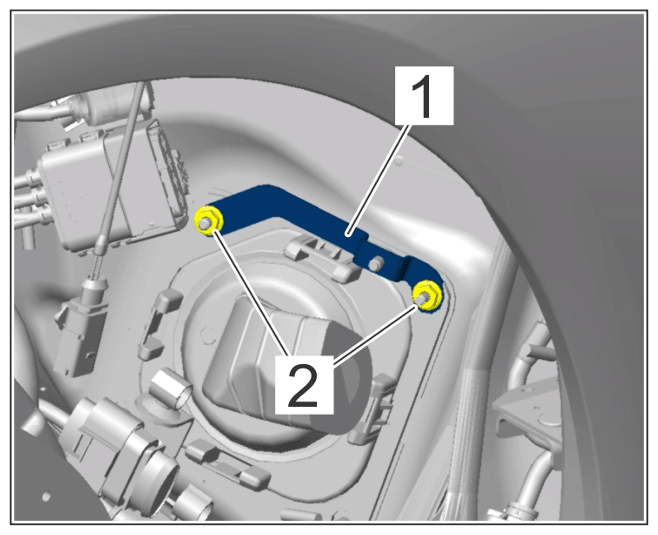

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adapter holder for PDCC control unit
Rear PDCC (EAWS) control unit to holder	Item 2: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

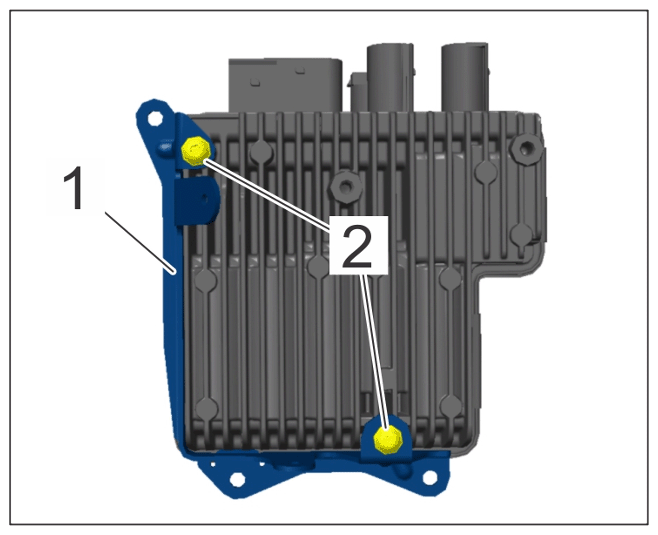

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear PDCC control unit to holder
Ground line to rear PDCC (EAWS) control unit	Item 5: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

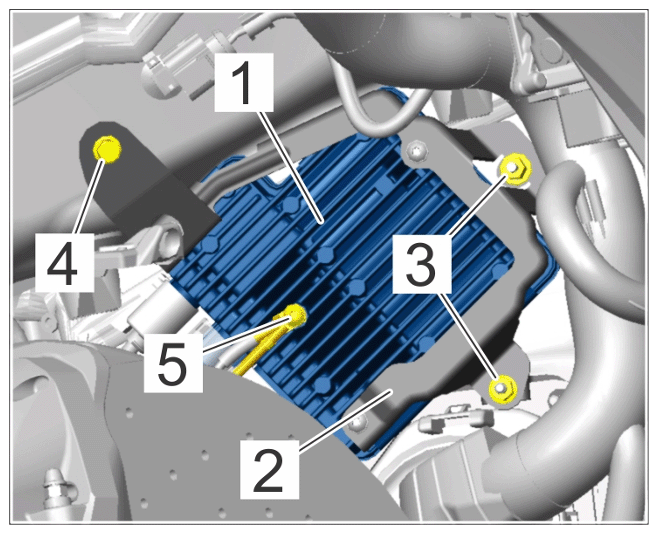

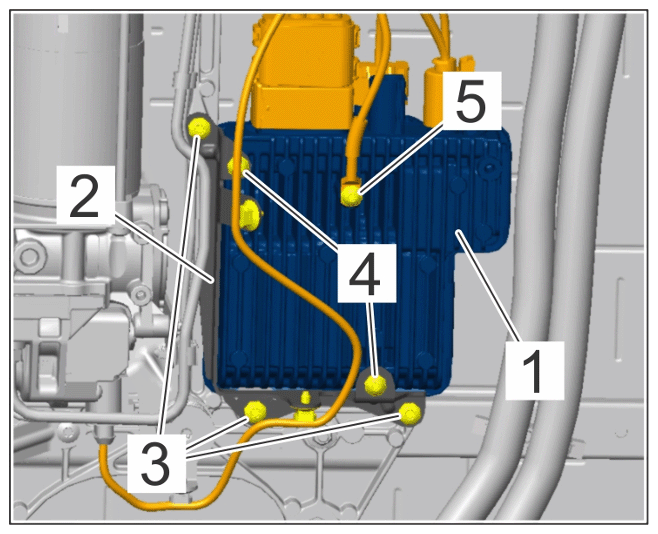

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder to air supply system holder
Rear PDCC (EAWS) control unit holder to air supply system holder	Item 3: Internal hexagon roundhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder to air supply system holder
