Tightening Torques For PASM Control Unit
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

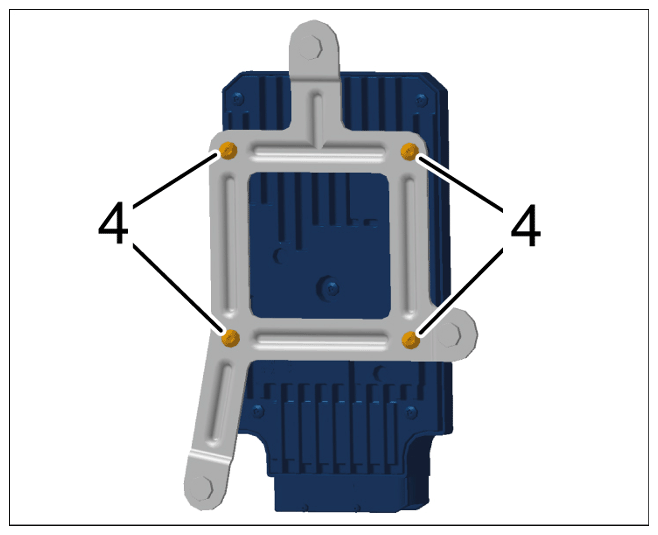

| PASM control unit to control unit holder | Item 4: Lens-head screw, M5 x 12 | Tightening torque | 5.6 Nm (4.1 ftlb.) | |
|
Removing PASM control unit from holder |
||||

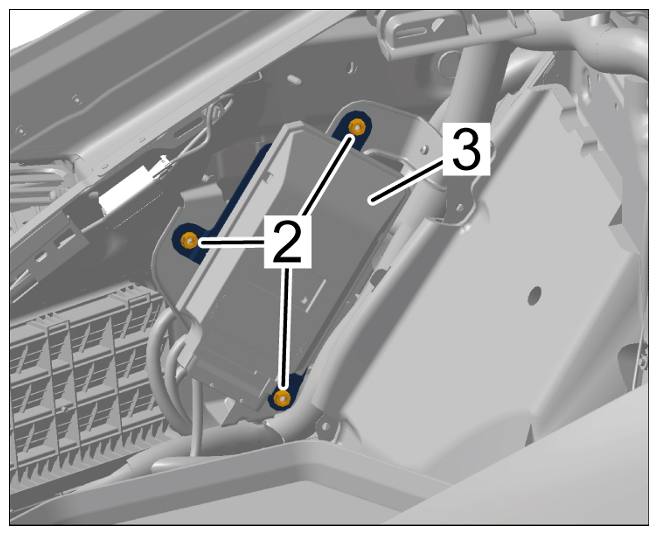

| Control unit holder to holder | Item 2: Hexagon nut, M6 | Tightening torque | 8 Nm (6 ftlb.) | |
|
Loosening PASM control unit with holder |
||||
