Technical Values

WARNING: This page is about a different variant/trim than selected.

*Location	*Description	*Type	*Basic values

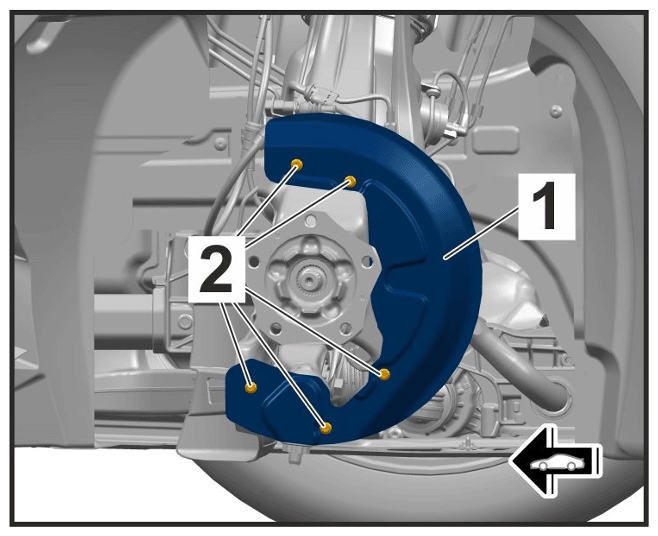

Brake cover panel to wheel bearing housing	Item 2: Hexagon-head bolt, M6 x 16/always replace bolts following removal!	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake cover panel

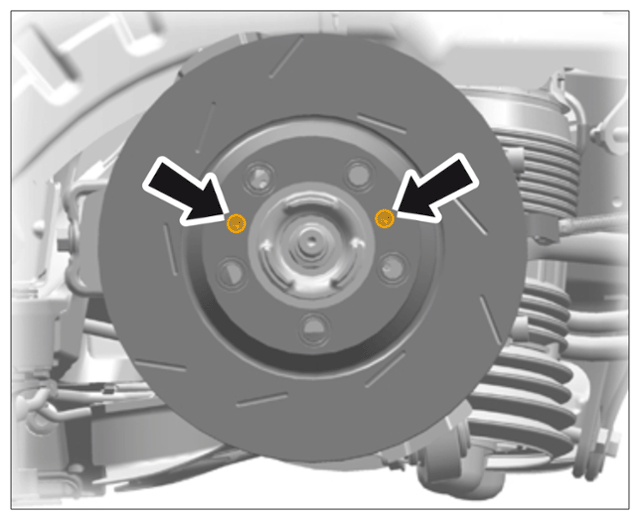

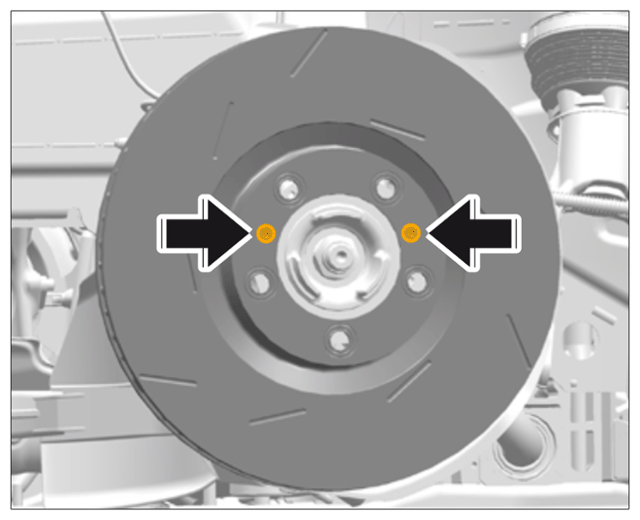

Brake disc to wheel hub	Arrows: Counters unk screw, M6 x 12 (micro-selflocking)/always replace screws following removal!	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc fastening screws

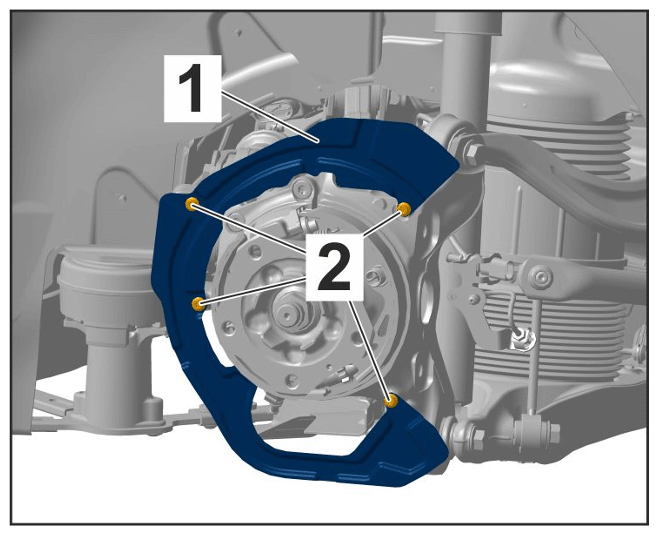

Brake cover panel to wheel bearing housing	Item 2: Hexagon-head bolt, M6 x 16/always replace bolts following removal!	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for brake cover panel
Brake disc to wheel hub	Arrows: Counters unk screw, M6 x 12/always replace screws following removal!	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc fastening screws

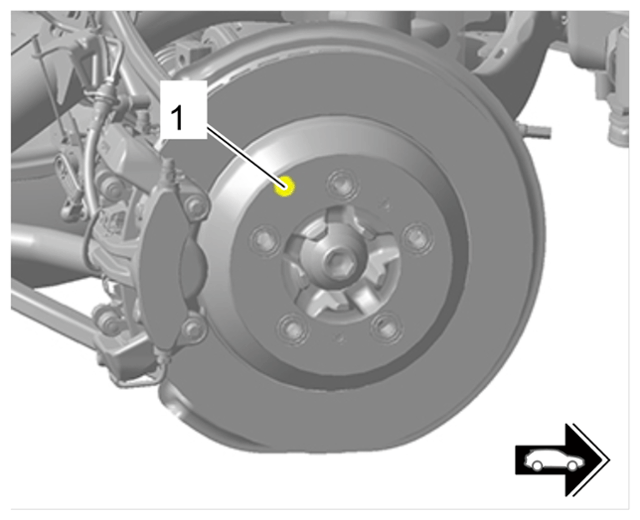

Screw plug for brake disc	Item 1: Screw, M12 x 1.5 x 5	Tightening torque	15 Nm (11 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw plug for brake disc

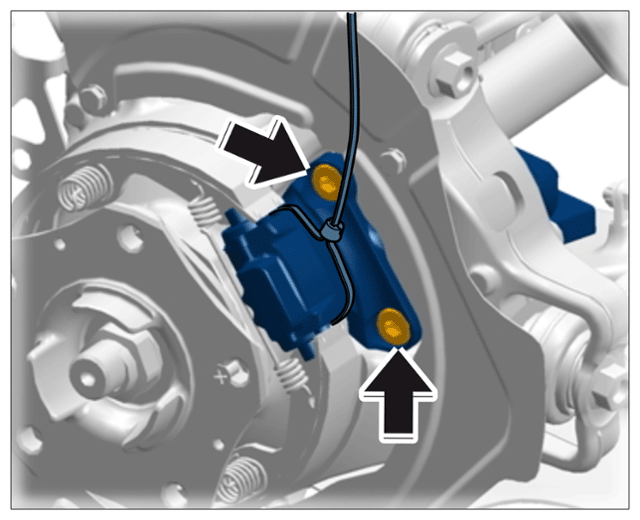

EPB actuator to wheel bearing housing	Arrow: depending on type - Counters unk screw, M8 x 38 or internal serration screw, M10 x 40/always replace screws following removal!	Initial tightening	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for actuator
EPB actuator to wheel bearing housing	Arrows: depending on type - Counters unk screw, M8 x 38 or internal serration screw, M10 x 40/always replace screws following removal!	Final tightening	+ 60°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for actuator

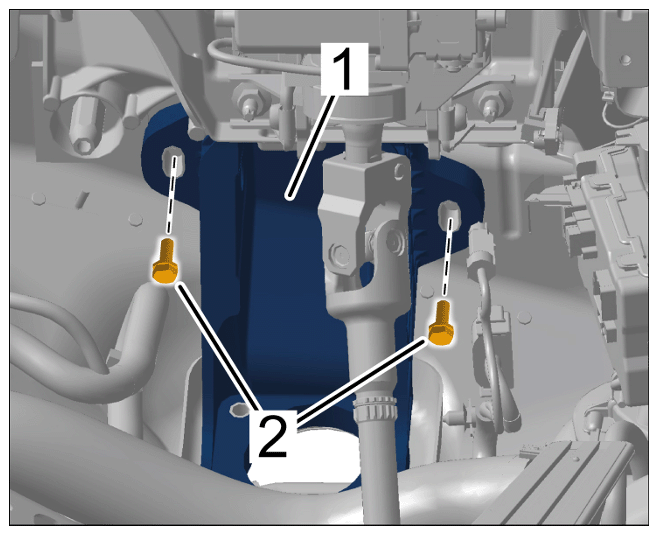

Pedals to body	Item 2: Hexagon-head bolt, M8 x 35	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing pedals to body

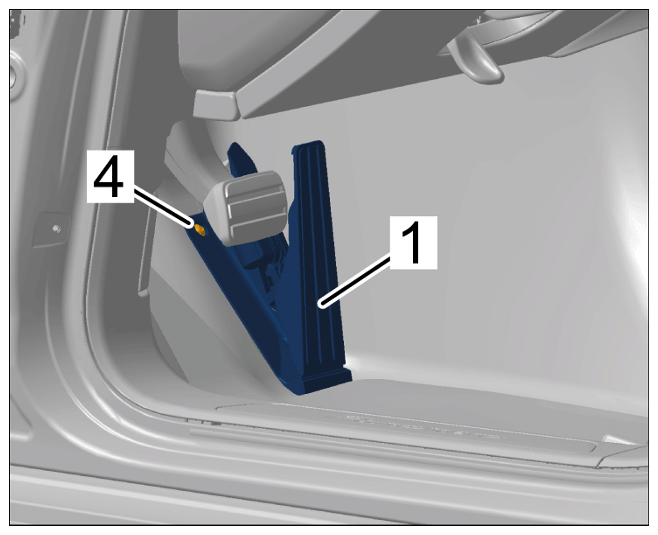

Accelerator pedal module to body	Item 4: Internal hexagon roundhead bolt, M6 x 18	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for accelerator pedal

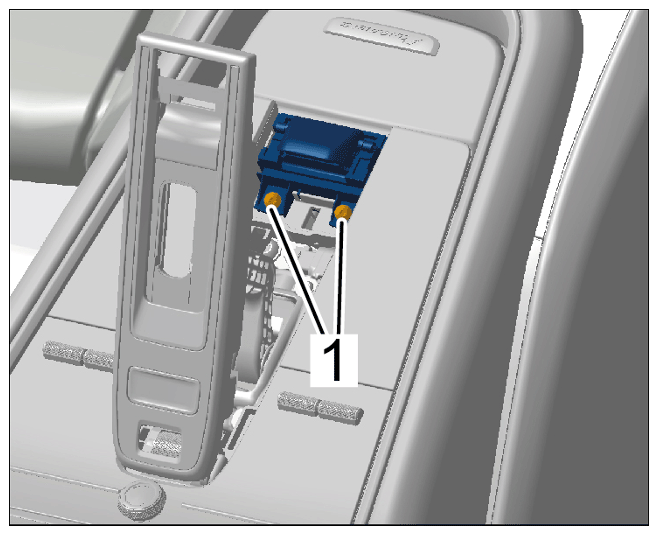

Actuator for electric parking brake on centre console	Item 1: Tapping screw	Tightening torque	1.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on actuator for electric parking brake
