WM, 100119 Removing And Installing Engine (V6 Hybrid): Tools

WARNING: This page is about a different variant/trim than selected.

Tool denomination	Type	Tool number	Image

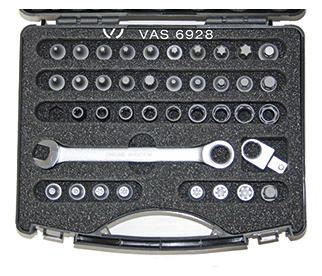

socket wrench set, 39-piece	Vehicle-specific workshop equipment	> VAS 6928	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
press-out tool	VW tool >	T10187	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

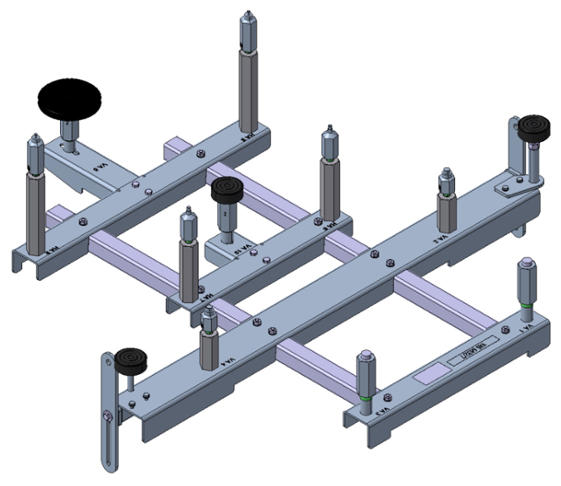

assembly fixture - Panamera G2	Vehicle-specific workshop equipment	> VAS 6832/7	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

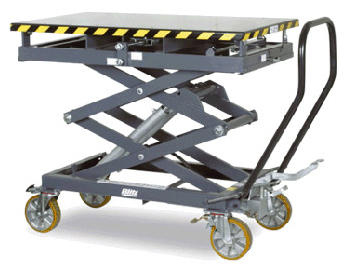

Master Gear unit elevating platform	Vehicle-specific workshop equipment	> VAS 6832	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
spring band clamp pliers	Vehicle-specific workshop equipment	> VAS 6891	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
