Remove Engine
Information
- Open connections and lines must be closed off using suitable stoppers or caps.
Information
- When lowering the engine, make sure that no cables, hoses or lines are fitted between the engine and body.
- Get a second person to help you check this.
Vehicle, underneath
- Remove electric passenger compartment heater.
> WM, 828019 REMOVING AND INSTALLING ELECTRIC PASSENGER COMPARTMENT HEATER

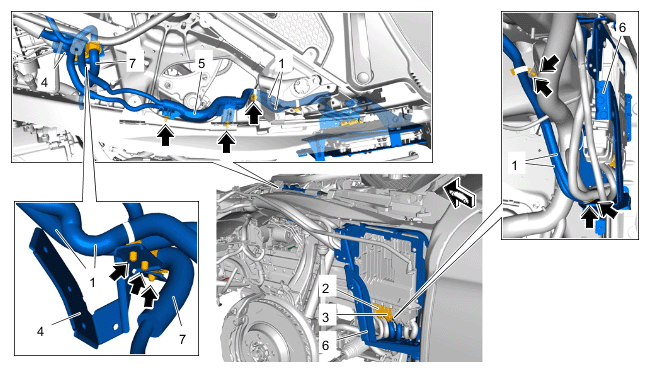

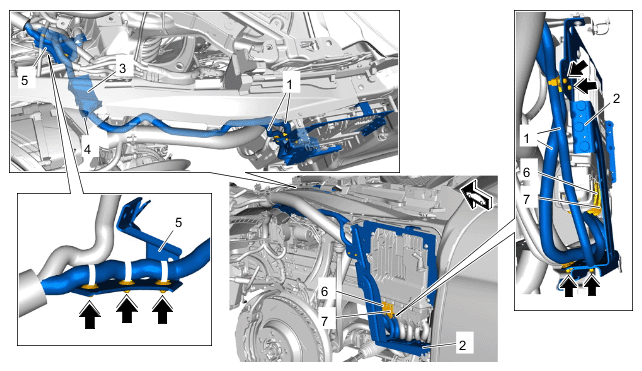

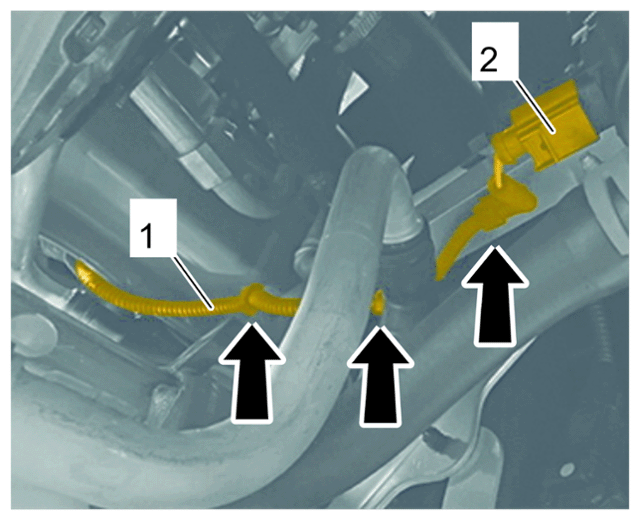

- Disconnect engine wire harness -1-
in the front left wheel housing.
- 2.1 Loosen tie-wraps -arrows- .
- 2.2 On the control unit holder -2- , loosen clip -arrows- .
- 2.3 Remove wiring harness holder -3- from wiring harness holder.
- 2.4 Loosen clips -arrows- from the air-conditioning line holder -5- .
- 2.5 Release and disconnect connectors -6- and -7- on the engine control unit.
- 2.6 Disconnect wire harness -1- and guide it out while lowering the engine.
Engine wire harness - part 1
- Disconnect engine wire harness -1-
in the front left wheel housing.
- 3.1 Release and disconnect connectors -2- and -3- on the engine control unit.
- 3.2 Loosen holder -arrows- on the air-conditioning line holder -4- .
- 3.3 Loosen holder -arrows- and loosen wire harness holder -5- at the top of the wing.
- 3.4 Loosen holder -arrows- for wire harness -1- on the control unit holder -6- .
- 3.5 Open the clip and disconnect vacuum line -7- from the wiring harness -1- .
- 3.6 Disconnect wire harness -1- and guide it out while lowering the engine.
Engine wire harness - part 2

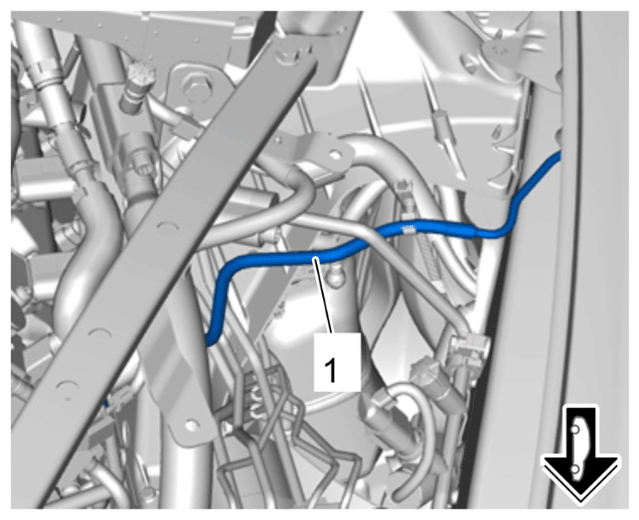

- Disconnect air-conditioning line (low-pressure) -1-
in the engine compartment.
- 4.1 Unscrew screw -2- and disconnect air-conditioning line.
Low-pressure air-conditioning line (similar to illustration)
- Disconnect vacuum line -1-
on the valve cover.
Vacuum line for valve cover at the left (shown on V6)
WARNING: Hot fluid- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
- Danger of scalding

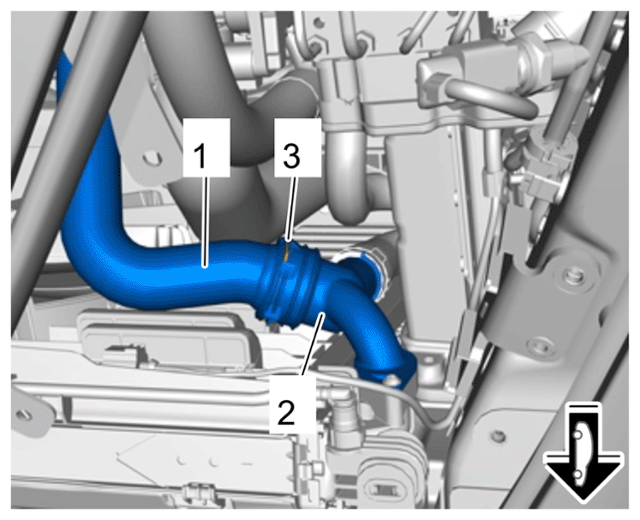

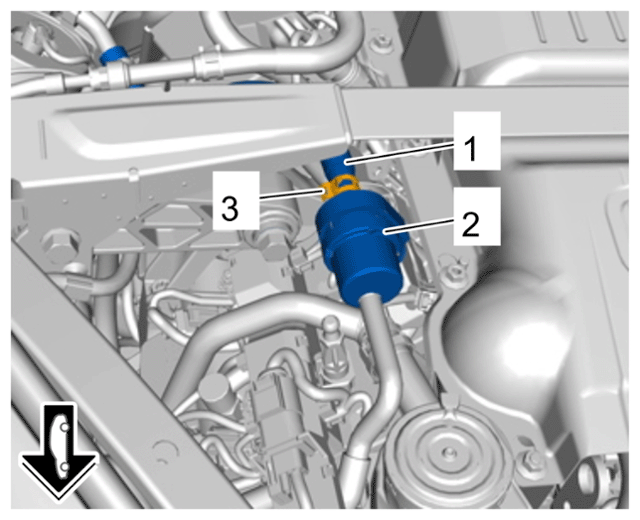

- Pull off coolant line -1-
at the top of the radiator -2-
.
- 6.1 Loosen safety clip -3- .
- 6.2 Collect emerging coolant.
Coolant line at top of radiator

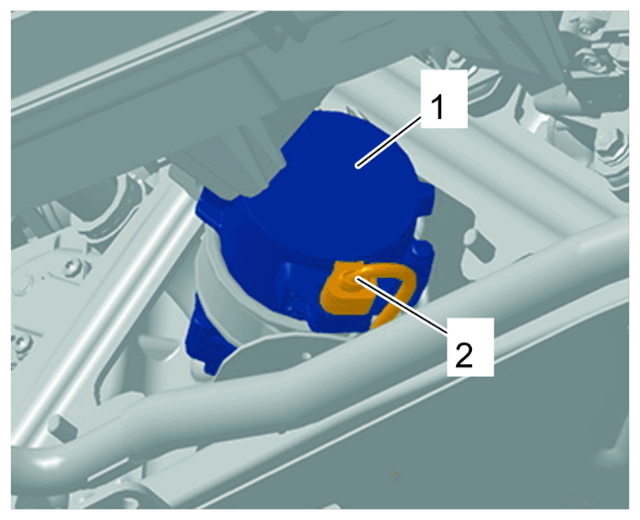

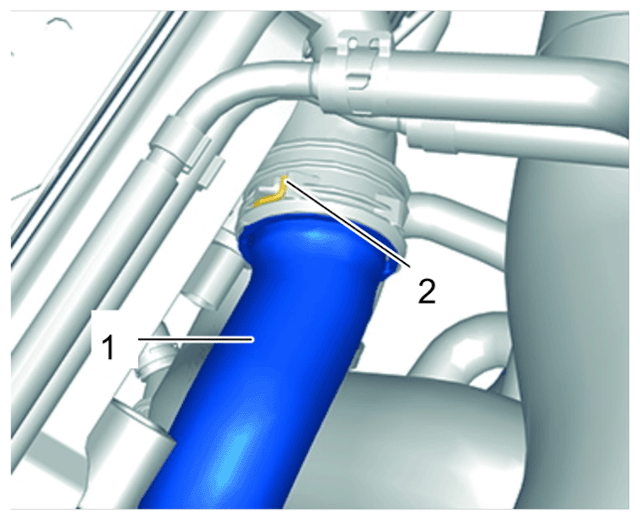

- Disconnect coolant line -1-
at the top right of the radiator.
- 7.1 Loosen safety clip -2- .
- 7.2 Collect emerging coolant.
Coolant line on right radiator

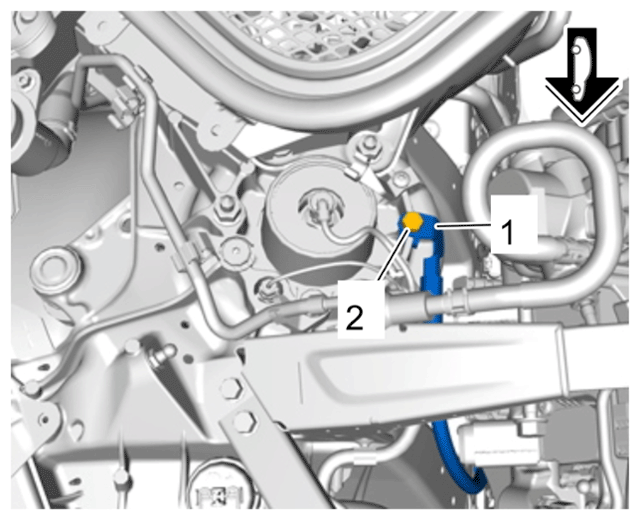

- Release and disconnect electric connector -2-
for coolant temperature sensor -1-
.
Temperature sensor at radiator

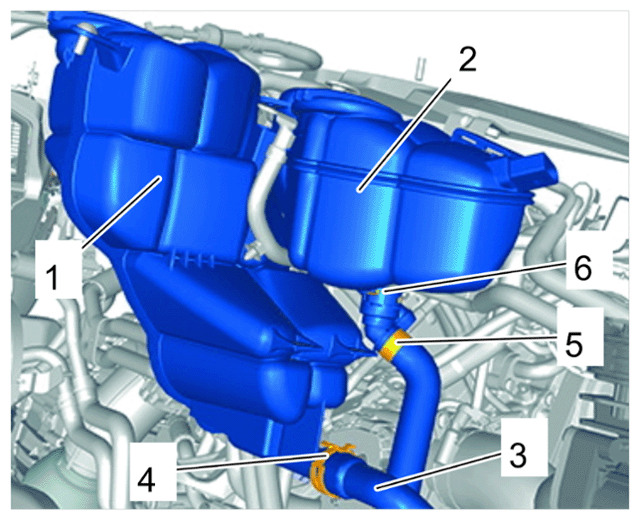

- At the reservoirs -1-
and -2-
, disconnect coolant lines.
- 9.1 Loosen clamp -4- and pull off coolant line -3- .
- 9.2 Loosen safety clip -6- and pull off coolant line -5- .
- 9.3 Collect emerging coolant.
Coolant lines at coolant expansion tank

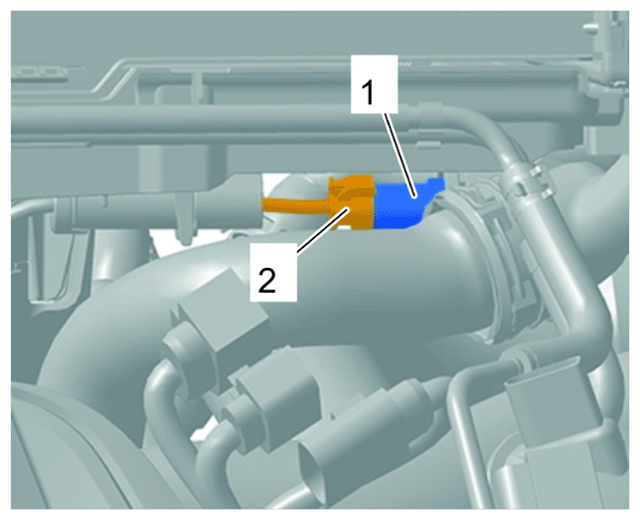

- Release and disconnect electric connectors on the pressure sensor at the left and right on the throttle valve.

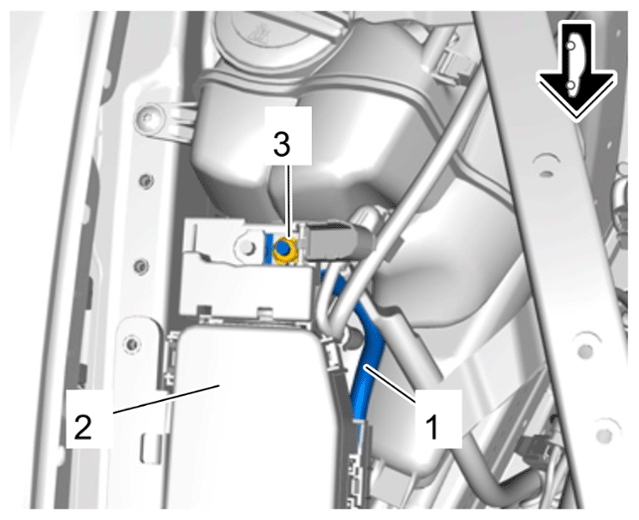

- Disconnect B+ line -1-
on the relay carrier -2-
.
- 11.1 Unscrew nut -3- and remove B+ line -1- .
B+ line on relay carrier

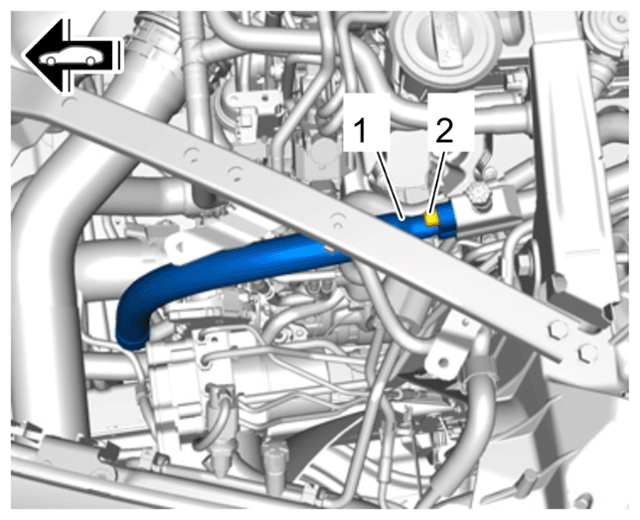

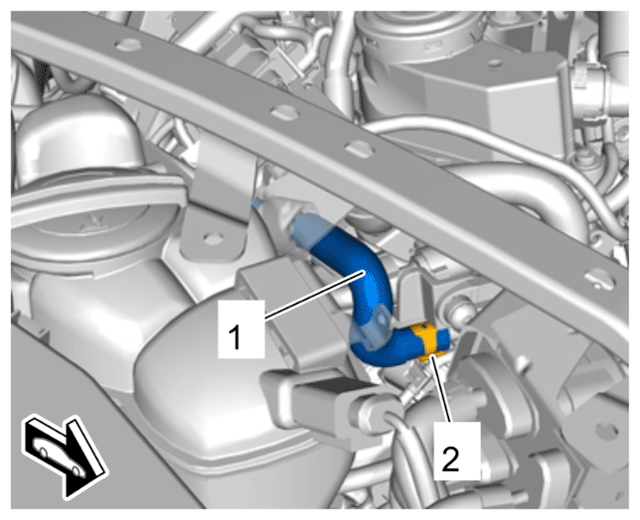

- Disconnect coolant vent line -1-
.
- 12.1 Loosen clamp -2- and pull off vent line -1- .
Coolant vent line
WARNING: Highly inflammable or explosive materials- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.
→ Use suction to remove ignitable vapours.
→ Attach warning sign in a clearly visible position.
→ Contain leaked media using non-flammable absorbent material and put it in a container designed for this purpose for disposal in accordance with local requirements.
→ Secure collection containers/vessels to prevent them from tipping over.

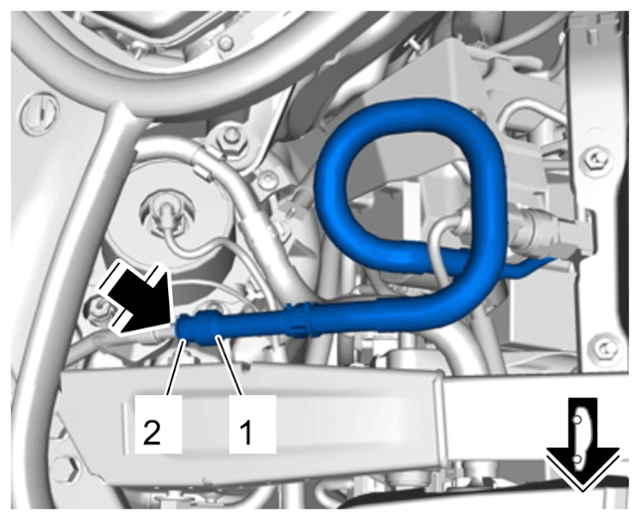

- Disconnect fuel supply line -1-
.
- 13.1 Press release mechanism -2- in -direction of arrow- and pull off fuel line -1- .
Fuel supply line
- Disconnect ground cable -1-
on the right spring strut dome.
- 14.1 Unscrew and remove screw -2- .
Ground point for right spring strut dome
- Disconnect tank vent line -1-
at the tank vent valve -2-
.
- 15.1 Loosen clamp -3- and pull off line -1- .
Tank vent line

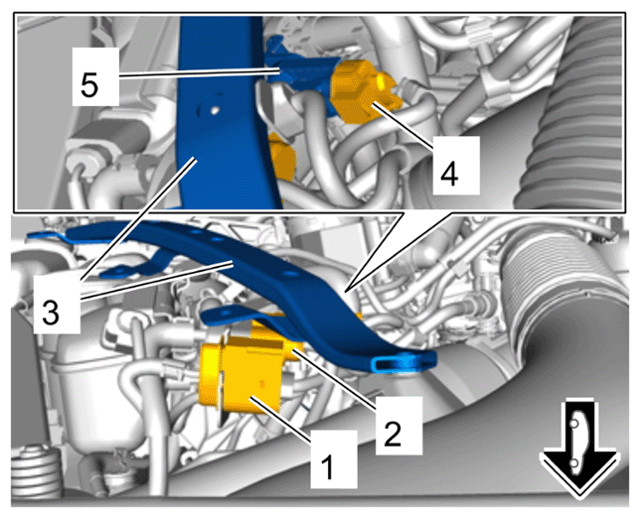

- Disconnect electric lines and connectors.
- 16.1 Release and disconnect electric connectors -1- and -2- .
- 16.2 Release and disconnect electric connector -4- on the sensor -5- .
Electric lines on diagonal brace at the right
- Loosen torque support on the engine.
> 103719 REMOVING AND INSTALLING TORQUE SUPPORT
- 17.1 Unscrew screw on the engine.
Vehicle, top:
- 17.1 Unscrew screw on the engine.

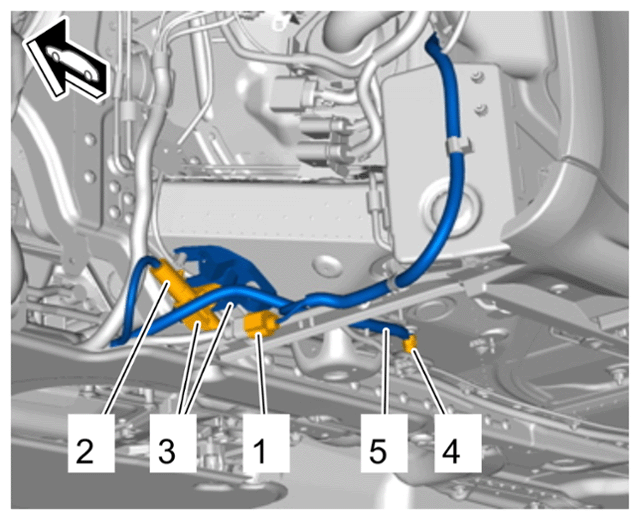

- Disconnect electric lines in the front left wheel housing.
- 18.1 Loosen connector housing -1- and disconnect plug connection.
- 18.2 Loosen B+ line -2- at the holder -3- and disconnect plug connection.
- 18.3 Unscrew nut -4- and disconnect ground cable -5- .
Electric lines in FL wheel housing
- Only for PDCC:
Disconnect wire harness on the PDCC anti-roll bar control unit.
> 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR (PDCC)
- 19.1 Observe the specified sequence when loosening electric plug connections.

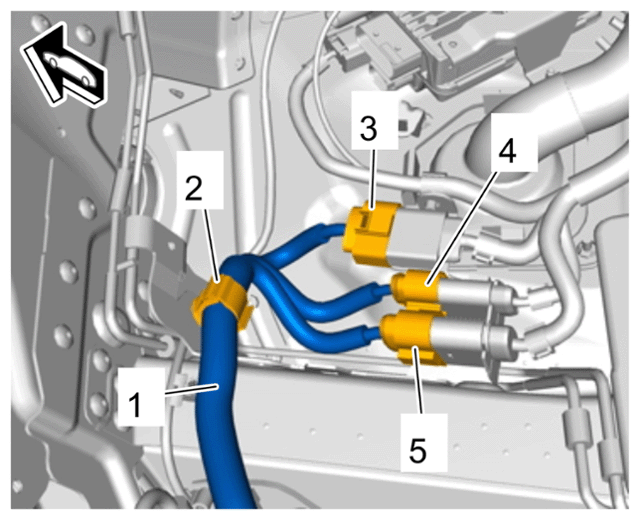

- Disconnect wire harness for steering gear -1-
.
- 20.1 Open the holder -2- .
- 20.2 Release and disconnect connectors -3- , -4- and -5- .
Wire harness for steering gear
- Loosen universal joint on the steering gear.

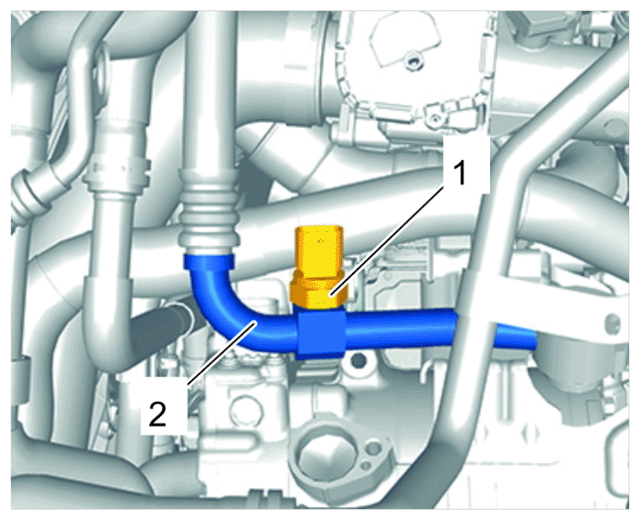

- Disconnect electric connector for pressure switch -1-
for air-conditioning line -2-
on the front left longitudinal member.
Pressure switch for front left air-conditioning line
- Disconnect coolant lines -1- and -2- .
- Disconnect electric line for horn.
> WM, 905019 REMOVING AND INSTALLING HORN
- 24.1 Release and disconnect electric connectors on the horn.
- 24.2 Loosen two holders on the front-axle carrier.
- Disconnect electric line at the power electronics
> 279319 REMOVING AND INSTALLING HIGH-VOLTAGE LINE FROM POWER ELECTRONICS TO HIGH-VOLTAGE BATTERY
- Disconnect electric line on additional coolant pump -1- at the front.
- Disconnect electric line for change-over valve -1- .

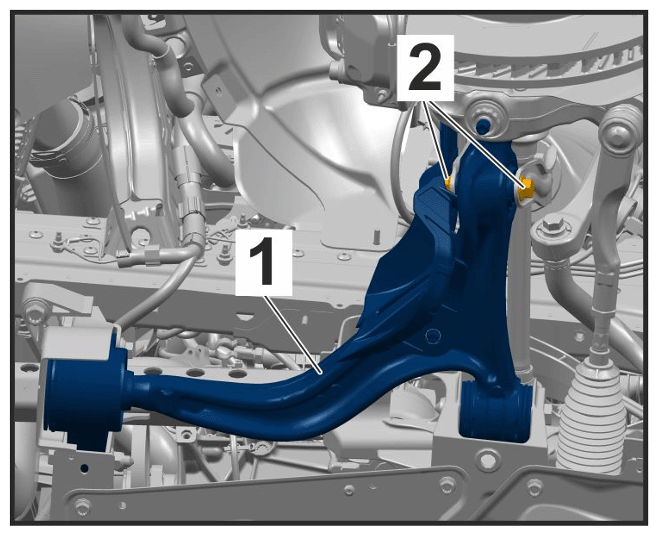

- Loosen spring strut on the lower wishbone -1- .

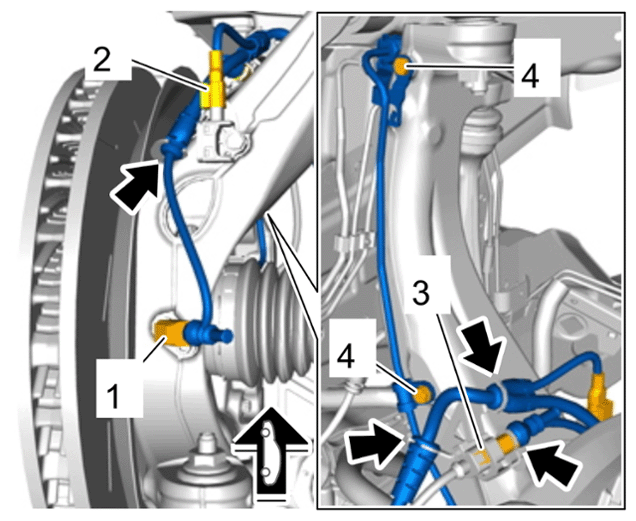

- Loosen wire harness for wheel carrier.
- 29.1 Release and disconnect connectors for ABS sensor -1- , sensor for body -2- and connector for wear indicator -3- .
- 29.2 Loosen wire harness from the holder -arrows- .
- 29.3 Unscrew screws -4-
and disconnect brake line at the wheel carrier.
Wire harness for wheel carrier at the front
NOTE: Removal of brake calliper- Paint defects on brake calliper
→ Proceed with care when setting back the brake pads.
→ Protect the paintwork on the brake calliper from damage using a suitable cloth.

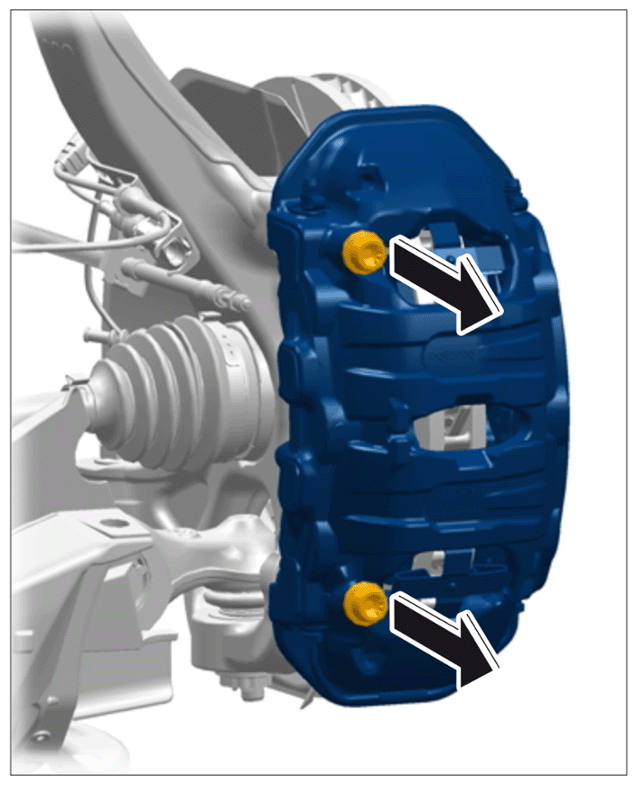

- Loosen front brake calliper from the wheel carrier.
> 473919 REMOVING AND INSTALLING FRONT BRAKE CALLIPER
- 30.1 Unscrew screws -arrows- and remove brake calliper.
- 30.2 Secure the brake calliper with a tie-wrap.
Removing front brake calliper
- Remove wheel carrier on the upper wishbone using > T10187 - press-out tool
.WARNING: Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
- Danger of scalding

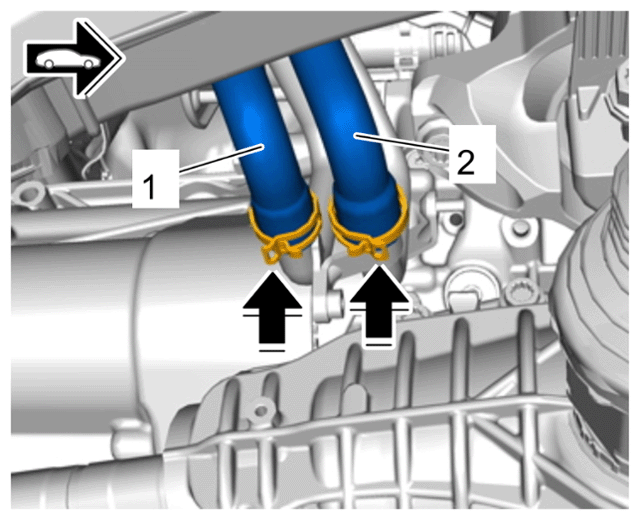

- Disconnect coolant lines for heating -1-
and -2-
.
- 32.1 Loosen clamps and pull off coolant lines.
- 32.2 Collect emerging coolant.
Coolant lines for heating

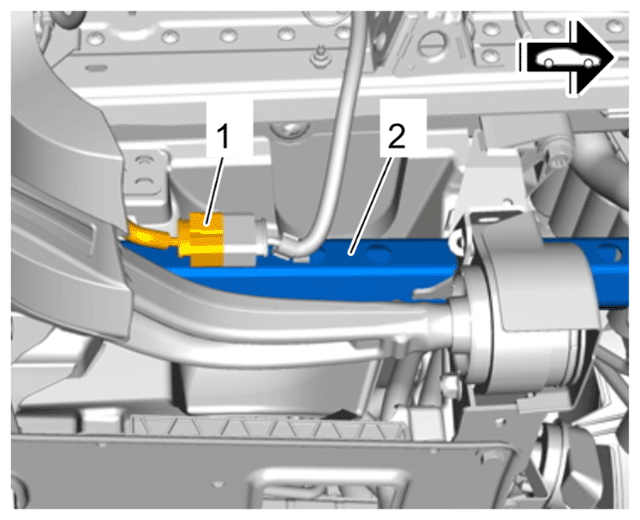

- Release and disconnect electric connector -1-
on front-axle carrier -2-
at the front right.
Electric connector on front-axle carrier at the front right

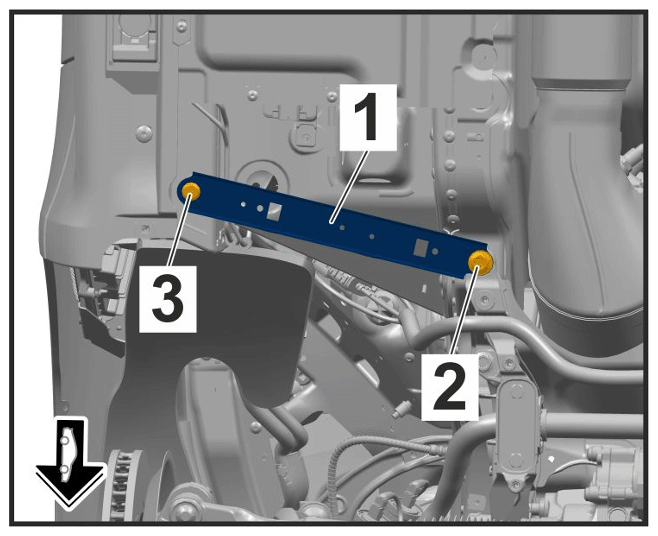

- Loosen strut -1- .

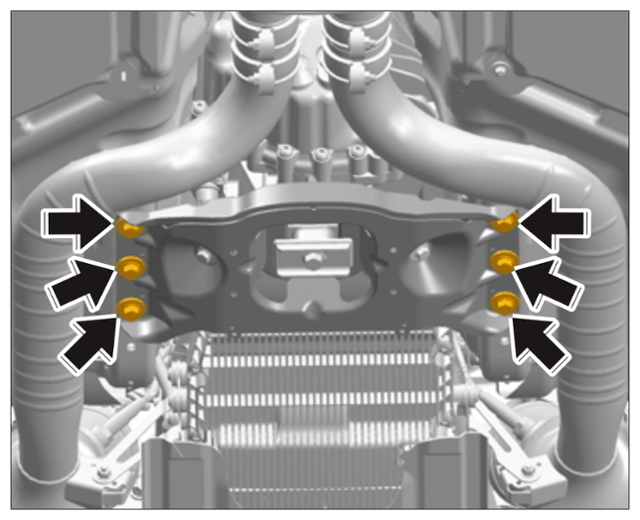

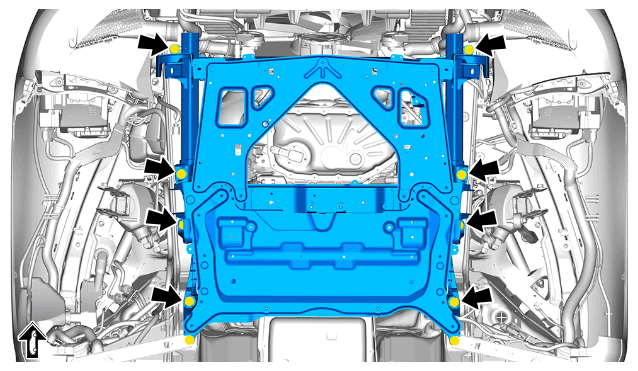

- Loosen screws -arrows-
.
Bolts on front-axle carrier - V6
- Loosen screws -arrows-
on transmission support.
Fastening screws for transmission support (similar to illustration)
- Fit and align unit support > VAS 6832/7 - assembly fixture - Panamera G2
on the > VAS 6832 - Master Gear unit elevating platform
with the help of another person.
- 37.1 Prepare unit support as required for the vehicle.

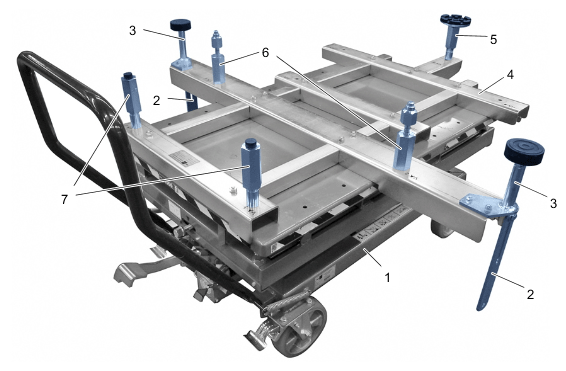

Unit elevating platform with support
1 > VAS 6832 - Master Gear unit elevating platform 2 Wheel hub holder 3 Trailing arm/wheel carrier support 4 Unit support VAS 6832/7 5 Transmission bracket 6 Front-axle carrier mounting, rear 7 Front-axle carrier mounting, front Information

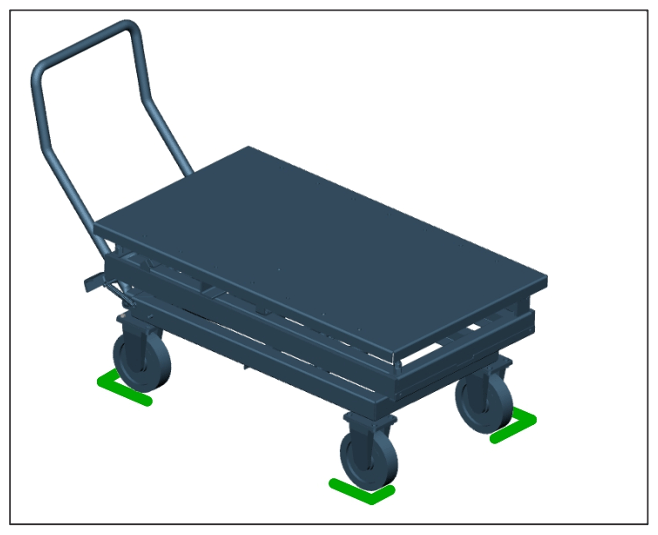

Adhesive tape markings on the workshop floor
- Before moving the unit elevating platform, mark the position of the wheels on the workshop floor with adhesive tape. This makes it easier to position the platform again for re-installation.
- 37.1 Prepare unit support as required for the vehicle.
- > VAS 6832 - Master Gear unit elevating platform must be aligned under the engine and transmission. Then raise it as far as required until the units are supported.
- Screws on the front-axle carrier and transmission support must now be unscrewed.

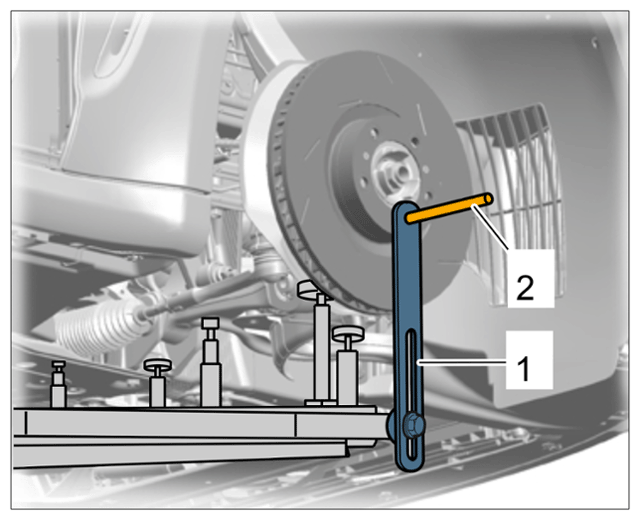

- Fit wheel hub holder -1-
at both sides using assembly pins/wheel bolt -2-
on the wheel hub.
Wheel hub holder (similar to illustration)

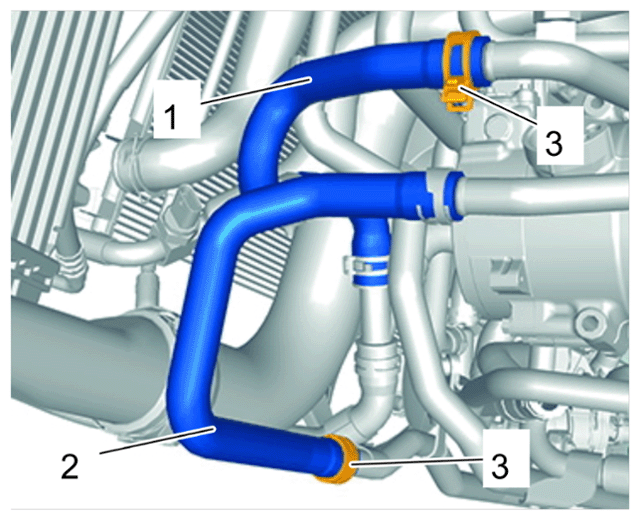

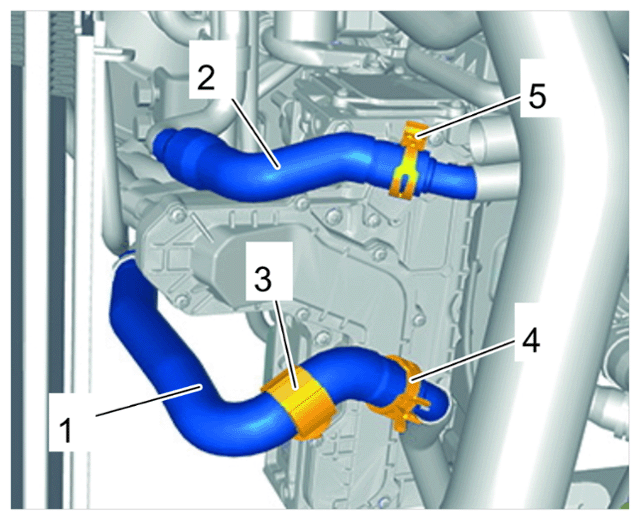

- Disconnect coolant lines -1-
and -2-
at the front right of the front-axle carrier.
- 41.1 Lower the engine slightly.
- 41.2 Open holder -3- and loosen coolant line -1- .
- 41.3 Loosen clamps -3- using > VAS 6891 - spring band clamp pliers .
- 41.4 Pull off coolant lines -1- and -2- .
- 41.5 Collect emerging coolant.
Front right coolant lines
- Remove the engine.
- 42.1 Gradually lower the unit elevating platform with the engine/transmission unit.
- 42.2 Move unit elevating platform with engine out of the work area.

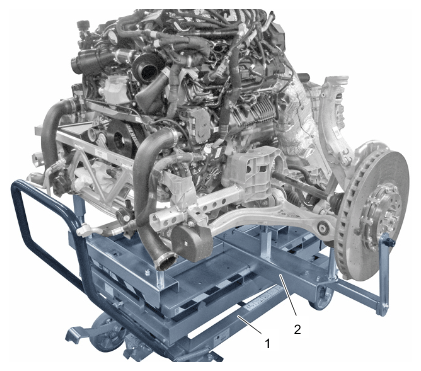

Engine/transmission unit on unit elevating platform (V8 turbo shown)
