Removing Engine

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Left side of engine:

1.1 Loosen engine mount -4- from engine carrier -5- .
1. 1.1.1 Loosen and unscrew screw -3- .

1.2 Only for all-wheel drive vehicles:

Press drive shaft -1- off the all-wheel final drive console -2- (-arrow- ) and guide it out carefully.

> WM, 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive shaft and left engine mount (V8 biturbo engine)

Right side of engine:

2.1 Loosen engine mount -4- from engine carrier -5- .
1. 2.1.1 Loosen and unscrew screw -3- .
2.2 Lift the engine up slightly.

2.3 Only for all-wheel drive vehicles:

Press drive shaft -1- off the all-wheel final drive -2- and guide it out carefully.

> WM, 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

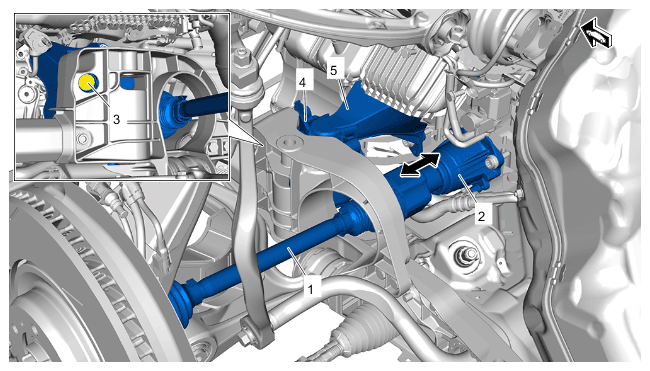

Drive shaft and right engine mount (V8 biturbo engine shown)

Remove engine from front-axle carrier.
> WM, 404119 REMOVING AND INSTALLING FRONT DRIVE SHAFT
