Technical Values

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Des... Type Basic val... Toleranc... Toleranc...
Brake calliper to wheel bearing housing Item 2: M12/Always replace screws following removal! Initial tightening 20 Nm (15 ftlb.)
G15856937Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-axle brake calliper
Brake calliper to wheel bearing housing Item 2: M12/Always replace screws following removal! Final tightening torque angle + 70°

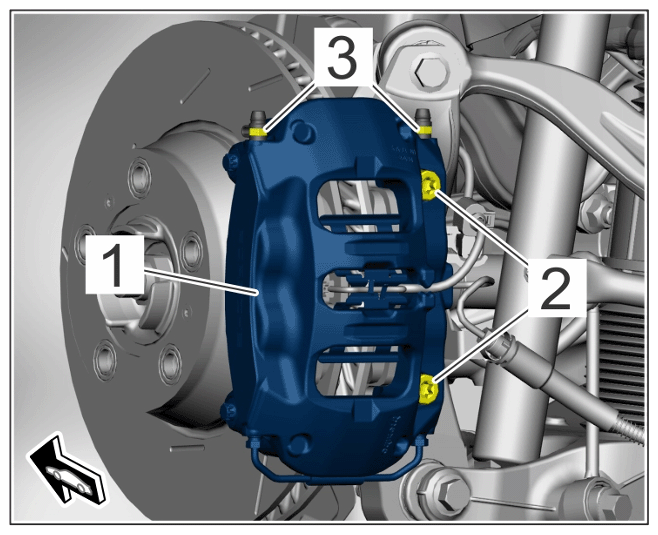

G15856938Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-axle brake calliper
Brake disc to wheel hub Arrows: Countersunk screw, M6 x 12/always replace screws following removal! Tightening torque 5 Nm (3.5 ftlb.)

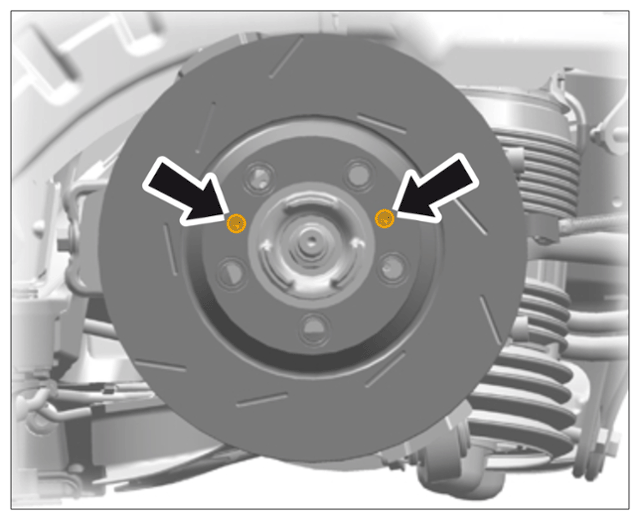

G15856939Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc fastening screws
