Removing Rear Disc Brake Pads

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press brake pistons back to their original position using > T10145 - piston reset tool  .

    Information

    When doing this, make sure not to damage the dust boots on the brake pistons.

  2. Carefully push a screwdriver between the disc brake pads/brake callipers and lever the disc brake pads out by turning the screwdriver slightly > Removing rear disc brake pad (shown when removed).

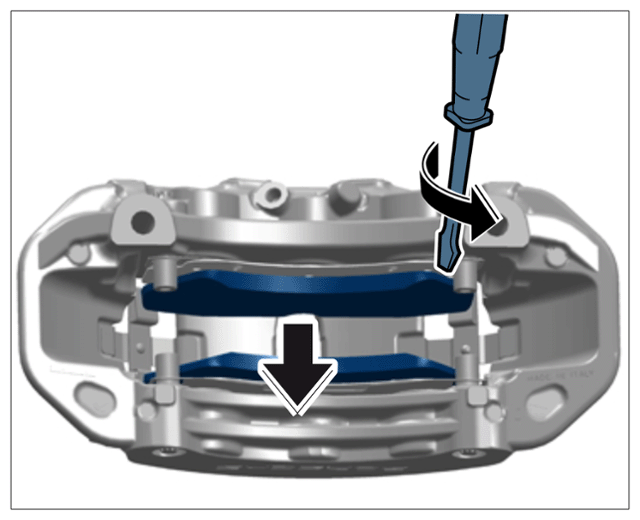

    G15856890Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing rear disc brake pad (shown when removed)

  3. Remove pad retaining springs.
