Preliminary Work

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Removing cover under dashboard.
> WM, 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD (Coupe) , WM, 702219 REMOVING AND INSTALLING COVER UNDER DASHBOARD (Wagon)

For vehicles with infrared camera (additional equipment):
Loosen infrared camera control unit and set it aside with lines connected.
> WM, 908119 REMOVING AND INSTALLING INFRARED CAMERA CONTROL UNIT
Remove infrared camera control unit holder -3- .
1. 3.1 Loosen clip -1- .
2. 3.2 Unscrew screws -2- .
3. 3.3 Remove infrared camera control unit holder -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

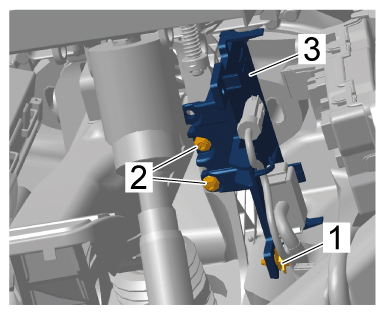

Infrared camera control unit holder
