Technical Values - Side Skirts

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance

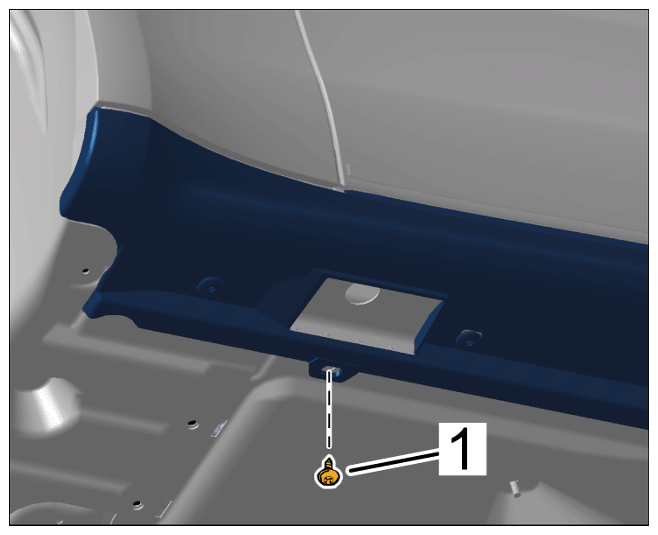

Screw securing side skirts to longitudinal member Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15864394Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door entry guard
