Technical Values - Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance
Screws securing tailgate hinge to rear lid	Item 1	Tightening torque	10 Nm (7.4 ftlb.)

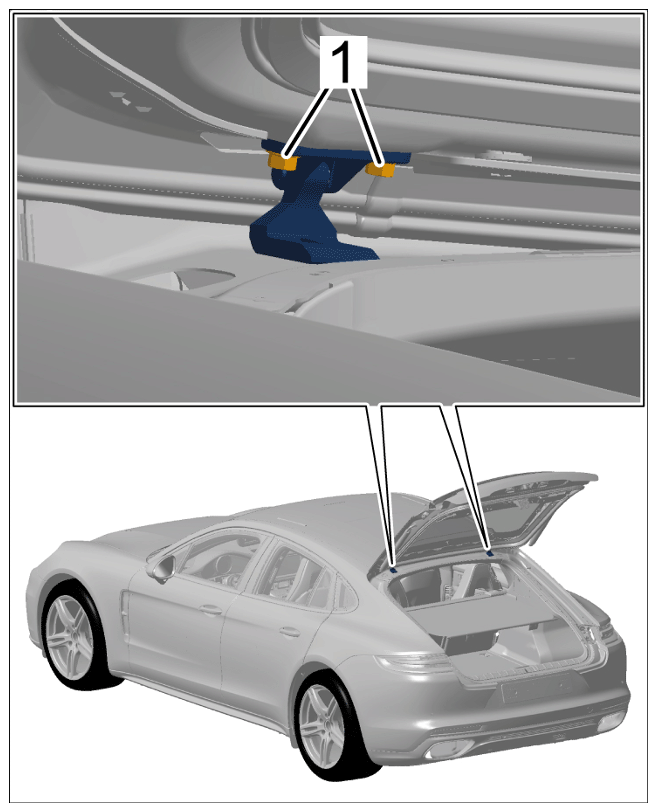

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing tailgate hinge to rear lid
Nut on rear tailgate hinge	Item 2	Tightening torque	20 Nm (14.8 ftlb.)

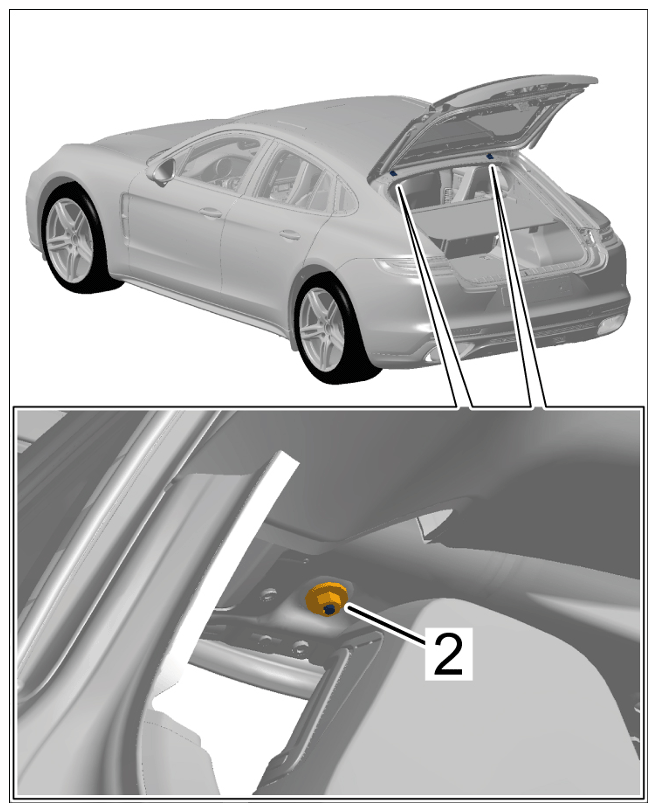

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear tailgate hinge
Rear lid adjusting element screw	Item 1	Tightening torque	6 Nm (4.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for rear lid adjusting element
Rear cover adjuster screws	Item 3	Tightening torque	6 Nm (4.4 ftlb.)

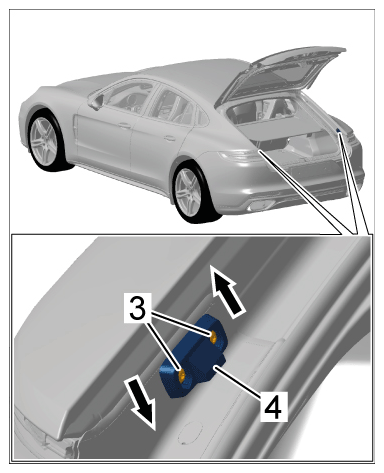

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening bolts
Rear cover ball pin	Item 3	Tightening torque	23 Nm (17 ftlb.)

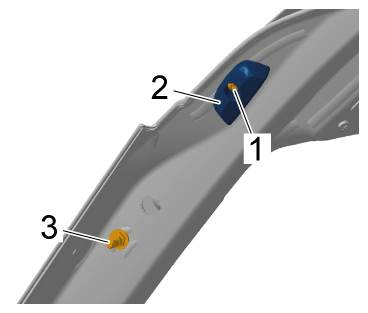

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball pin on rear lid
Screws securing ball joint holder to rear cover	Item 2	Tightening torque	10 Nm (7.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ball joint
Nut on wiper motor holder	Item 11	Tightening torque	8 Nm (5.9 ftlb.)

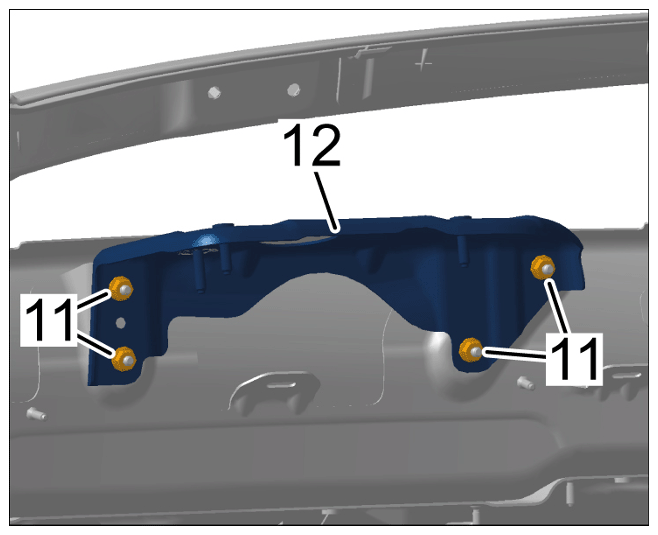

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing retaining bracket for windscreen wiper motor
Screw for water drain sleeve on spoiler drive	Item 5	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for water drain sleeve on spoiler drive
Nut on rear lid release	Item 3	Tightening torque	4 Nm (3 ftlb.)

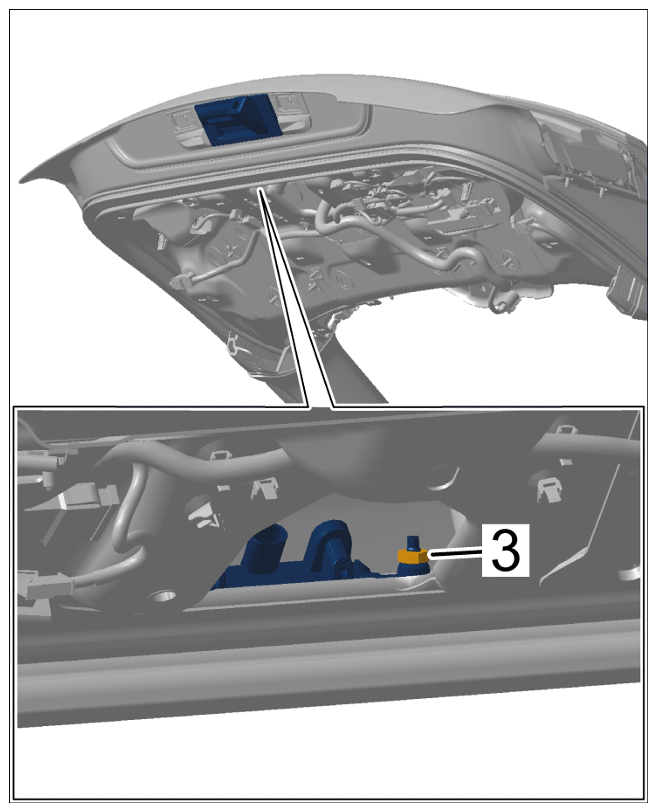

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut on rear lid release
Number plate trim for Sport Turismo		Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 10 %

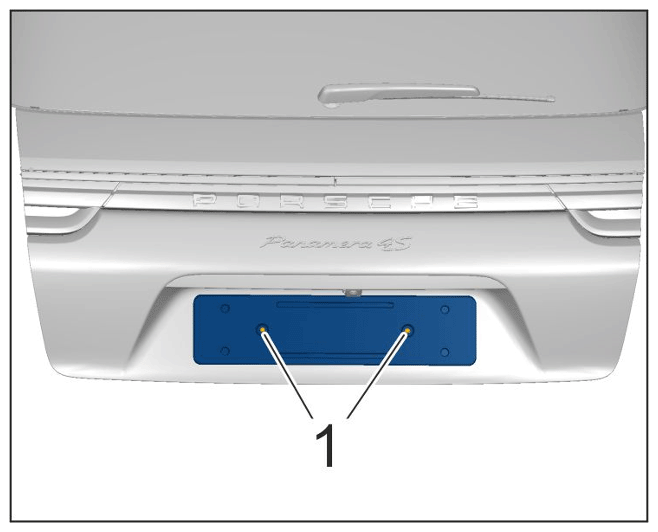

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Number plate trim
