Technical Values - Rear Door

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Screw on rear door lock peg	Item 2	Tightening torque	25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on rear door lock peg
Screw securing closing aid motor to rear door	Item 2	Tightening torque	7.4 Nm (5.5 ftlb.)

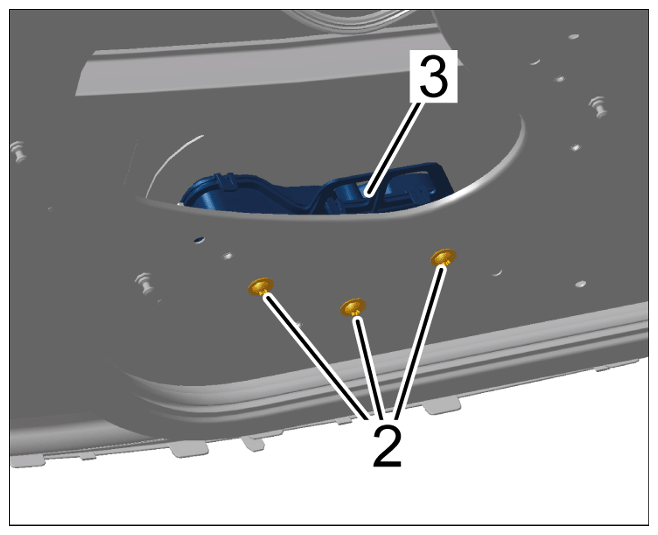

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing closing aid motor to rear door
Screw for closing aid motor in housing	Item 8	Tightening torque	7.4 Nm (5.5 ftlb.)

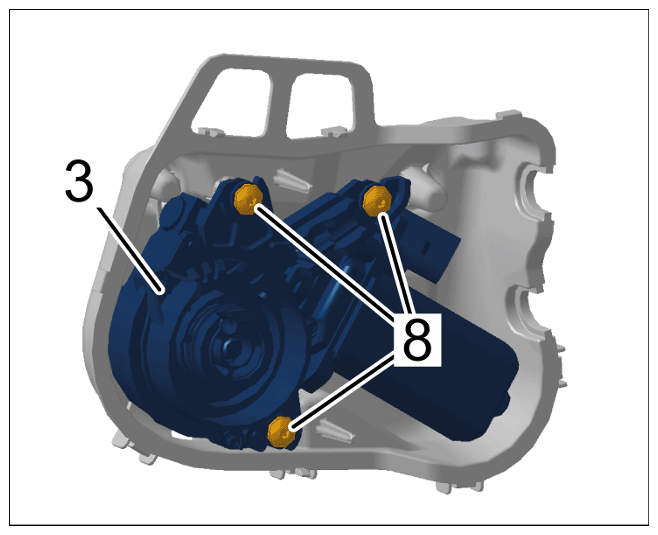

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing motor for closing aid
